Let's look inside this hockey puck shaped wall adapter. This is an older USB AC wall adapter, not Level VI efficient, and discontinued.

  1. vCXNoF2JUvlFgVbb
    vCXNoF2JUvlFgVbb
    VSL36qxfjlbI2gcJ
    IJHVqR1nK4ZVVutc

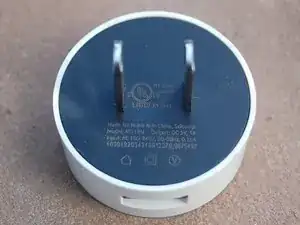

    • This power supply is slim and unusually attractive.

    • That white case is 39mm in diameter, and 15mm thick: pretty small for this power level (see heat sinks later).

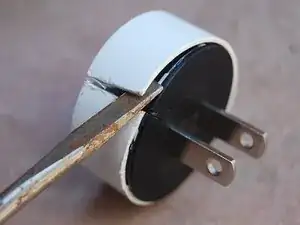

    • The case is glued together, so you're not going to get into this one cleanly. I sawed a slot in the side, and used a screwdriver to crack the glue.

  2. 2QLq3OwKbOuddQLy
    2QLq3OwKbOuddQLy
    WQsbhpwThXPMeBIs
    2brGnQQGdj6PNvYr

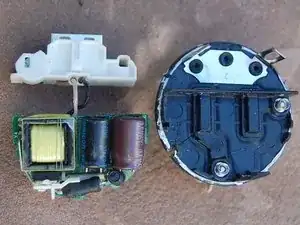

    • The wall power pins lead to two spring contacts.

    • There's a plastic barrier between the low voltage and high voltage sides (you can't get much better than that!).

  3. 3sWbBeBVcBygjPXC
    3sWbBeBVcBygjPXC
    sTXX1BrZKOUeFrPC

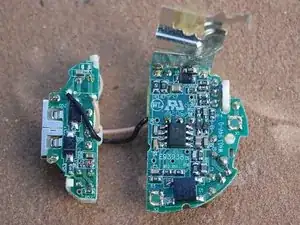

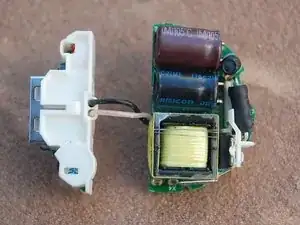

    • Pretty tight layout.

    • Note the heat sink with thermal interface material, and the landing pads for the line voltage springs.
