Pac-Man Connect and Play Teardown

Written By: Bobrobot1
Published: 05/04/20
  • Comments: 2

Pac-Man Connect and Play Teardown

Published: 05/04/20

Teardown

Introduction

  1. 5uPbwcLlLCbN12Zj
    5uPbwcLlLCbN12Zj
    h5iil2RfSZmqvFLe

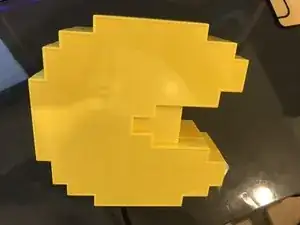

    • I start by flipping over the device.

  2. fUCOVjnslZhtcuWY
    fUCOVjnslZhtcuWY
    E5Iof3XInK1H4DQX
    T5EOVgnRVaAWFeqL

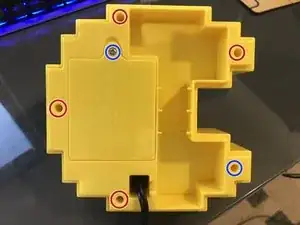

    • I remove 5 Phillips head screws for the case

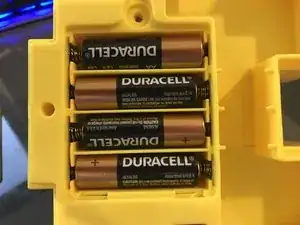

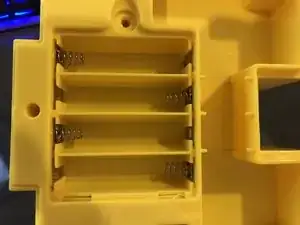

    • And one more to remove the batteries

  3. TEiFVQbDSTPDFKqe
    TEiFVQbDSTPDFKqe
    FYsFyZ6FoRTV4bJv

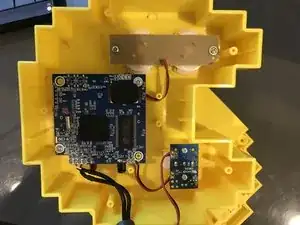

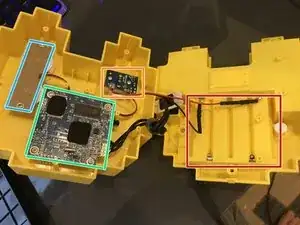

    • Inside, all I see are glorious Phillips Head screws!

    • Finally! Something repairable!

    • Battery Compartment

    • Power Switch and LED board

    • Mainboard/Joystick board

    • A and B button board

  4. vhaF4qC6XOu2CGct
    vhaF4qC6XOu2CGct
    KhaZmaZiUxnYgGZY

    • I start with the buttons.

  5. gXFRGDggm4MMFHOH

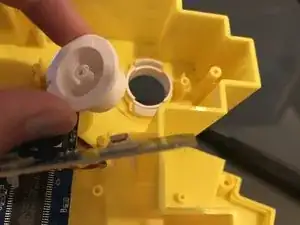

    • They were very, very easy to get to and remove.

  6. ctYXZXYlVICkIRIX
    ctYXZXYlVICkIRIX
    gYIAY1akMBZIMKGu
    CTePUbTE6c21umKu

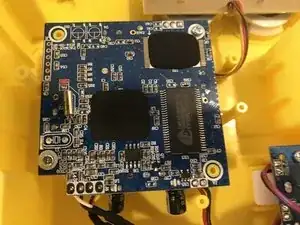

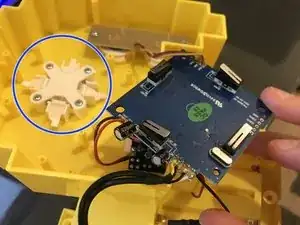

    • Now, for the mainboard.

    • 2 screws get me underneath.

    • But, what's this?

  7. OYacAGxe6C2Uy1cS
    OYacAGxe6C2Uy1cS
    6SSsYaRuDk5gsEHE
    JCFPXGLgriY5aJWA

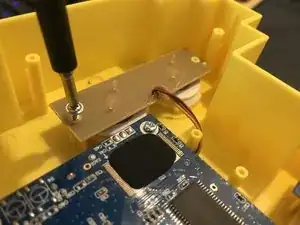

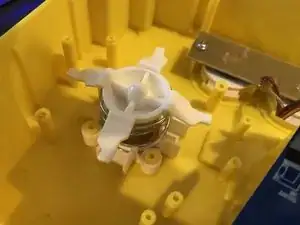

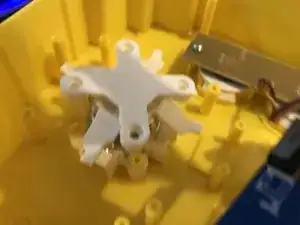

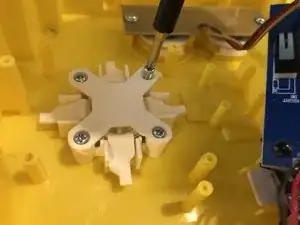

    • Another 4 screws, and POP! it is holding a spring down, for the joystick.

    • There did not appear to be an easy way to get the joystick out, however.

  8. tOG3vMCGjugYHuw3
    tOG3vMCGjugYHuw3
    iZyhJkFQSpAOvA21

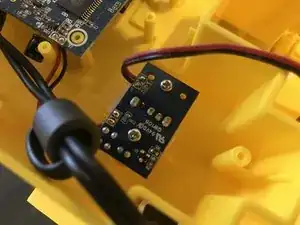

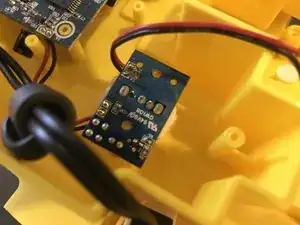

    • Finally, I see a power regulator?

  9. xIHQJTOtdUuwUvMf
    xIHQJTOtdUuwUvMf
    oxMjBEw4CHJkUa5t

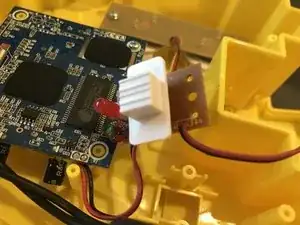

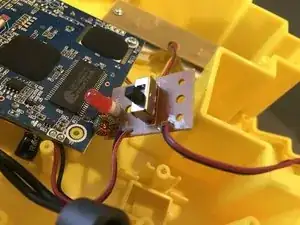

    • Nope! It's just the power switch and LED.

  10. qNHf41WbXK1nsbOn

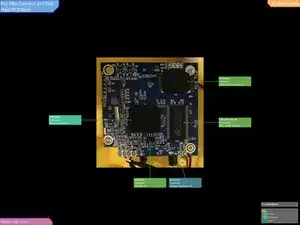

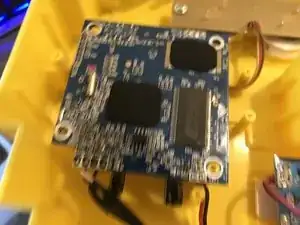

    • Back Main PCB IC Identification:

    • You may need to enlarge it to view the text.

  11. e2BdCaJPOE4Ld2pR
    e2BdCaJPOE4Ld2pR
    KPUs4bsCTDCirrIk

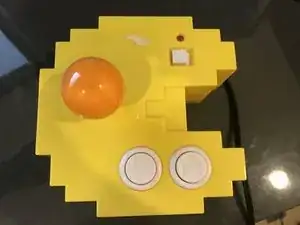

    • In conclusion, I LOVE how it's all the J1 Phillips Head screw, throughout the entire device.

    • It's easy to get under every board.

    • There are, unfortunately, no plugs, and so everything is soldered on. This removes the possibility of replacing any electrical internals.
