Panasonic Lumix GX80/85 Teardown

Written By: Andi
Published: 22/03/19
  • Comments: 14

Panasonic Lumix GX80/85 Teardown

Published: 22/03/19

Teardown

Introduction

Disassembly to get to the sensor. Some images are courtesy of lifepixels.com

  1. DqjxDkw2iIuCCZEW
    DqjxDkw2iIuCCZEW
    ZnP22qN6uuBqFZhd
    3JqXQkhJFAG2iUIU

    • I have dust particles underneath the sensor glass, so sensor swabs didn't help me. I will try to get inside and under the glass. Additionally the EVF is overbright after a drop and maybe can be rearranged in the process.

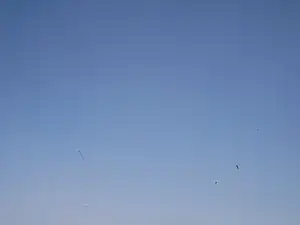

    • You can spot dust marks yourself best if you set the camera to the "A" mode at f/22 and take a picture of the sky

  2. 2lVvMMxrAhoDHgwc

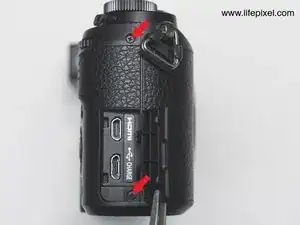

    • Start with these two screws. Remember screw sizes and position, there are many different lengths used!

  3. L3caKQtVLP4fObcE
    L3caKQtVLP4fObcE
    OfvCEerR2KMaTjmd
    5GFCYnHp2o3jTsZZ

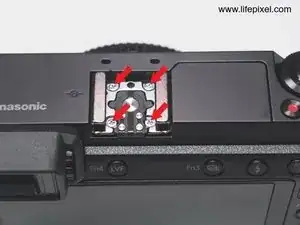

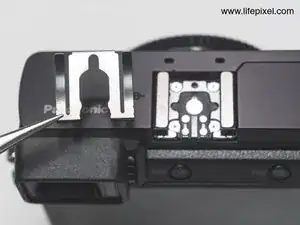

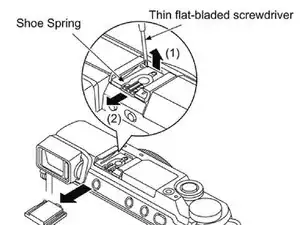

    • remove the flash spring as shown and the four screws

  4. 1FmiRGGAZZRcXotV

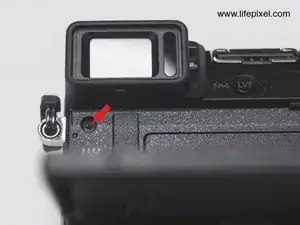

    • Remove this screw

  5. vWFFmxFSSVGNe6L3

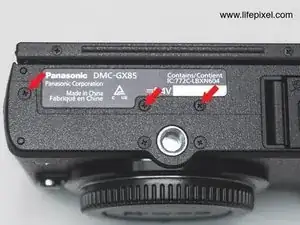

    • remove the bottom screws

  6. y2cX14bVPiOO4nXc
    y2cX14bVPiOO4nXc
    CvNiMmLfPTCIG6sT

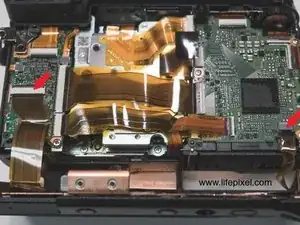

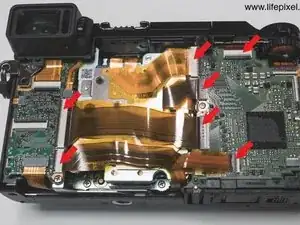

    • remove the backplate and remove the ribbon cables

  7. UhhcjpZiACaO6cEC

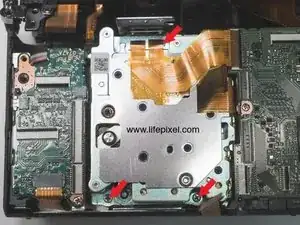

    • remove the 3 screws

  8. Odb41kXNUftkTCVD
    Odb41kXNUftkTCVD
    TJOTfVIX2lLJjMSH
    MGynFrBxltFpQTjR

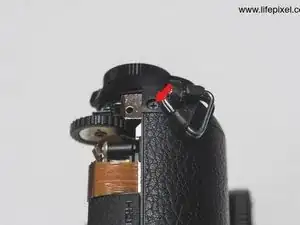

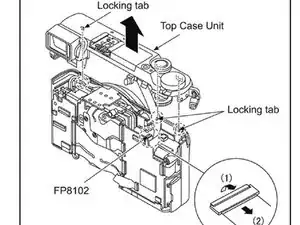

    • to remove the sensor more easily you can remove the top bar before

  9. 6OIiIUT1pluTKSyi

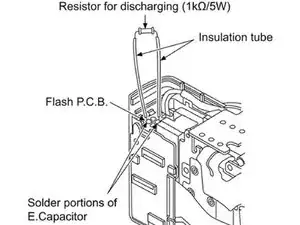

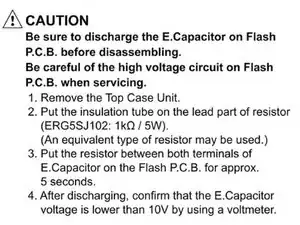

    • Flash E.Capacitor removal

  10. liu3Lis2DFGGh5Rq
    liu3Lis2DFGGh5Rq
    kmvBkbqaGodIldjB

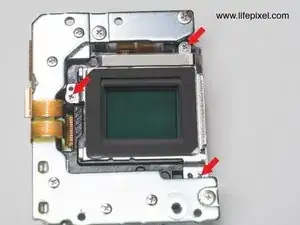

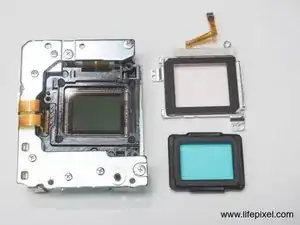

    • Remove the 3 screws to get the sensor cover glass off. Be Careful not to let them fall inside the housing. There are extremely strong magnets!
