Plasma Ball Teardown

Written By: Payton Harty

Published: 07/11/16

Comments: 17

Plasma Ball Teardown

Published: 07/11/16

Teardown

Introduction

Tools

Phillips #0 Screwdriver

Step 1

Obtain your plasma ball and unplug the wire (If battery operated take out battery's).
Turn the Off/On/Sound switch to Off.

Step 2

Flip over the plasma ball ( Be careful if putting on a table, its glass its easily broken)

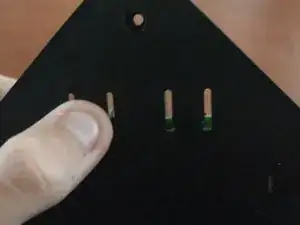

Unscrew the 4 screws, one in each corner of the mechanism.

Step 3

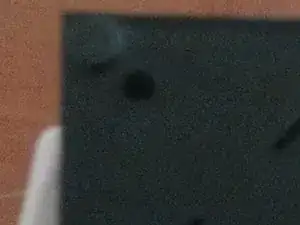

Carefully pull apart the base from the main body,
Now we have the base and the main panel.

Step 4

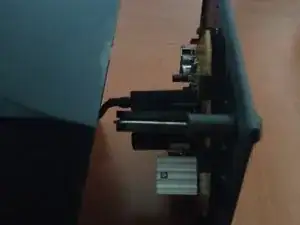

Unscrew the two screws that hold the base to the control center.

Why does the %#*@ thing have a microphone a mic on it up by the switch

Sweet Hart -

Step 5

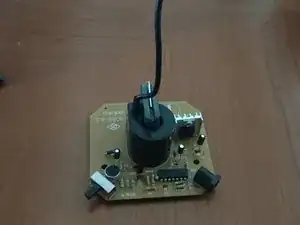

Next pop out the control center by pushing on these two plastic holders.

Step 6

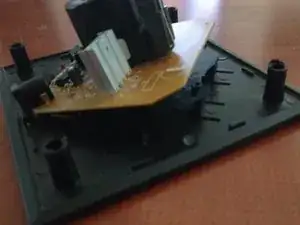

Pull the control center off the base and you are done with the teardown
To rebuild the Plasma Ball do all the steps in reverse order.
