Smoke Detector Teardown

Written By: Ari Dubinsky
Published: 04/03/14
  • Comments: 1

Smoke Detector Teardown

Published: 04/03/14

Teardown

Introduction

For our reverse engineering project, we chose to use the smoke detector. This smoke detector consists of a sensor to detect smoke and a loud electronic buzzer to alert people within the building.

  1. mok2khJjULOAuycu
    mok2khJjULOAuycu
    yanwSqPMUlcPJtMv

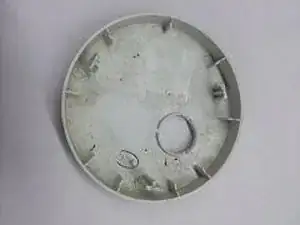

    • Use a screwdriver to pry open the plastic enclosure. It might be easier to push the buzzer through the hole, if you need extra leverage.

  2. w2YoqEByQqdCCwGY

    • The buzzer is unhooked from the PCB board, by hands.

  3. W1gdiQxhCEmQWUNV
    W1gdiQxhCEmQWUNV
    TtUYoO22LhjasNRM

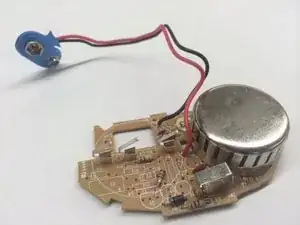

    • This is the circuit for the smoke detector. It is powered by a 9V battery. The 3 metal leafs are contacts for the buzzer and the bigger leaf is for the test button.

  4. adZAXjPJXK2rHyjh

    • The metal cap is removed to reveal a, MC145017, driver chip and americium sensor. Do not remove americium from the sensor!
