If last month’s round of next-gen console launches left you in a fog, prepare yourself for the incoming Steam Machine. Valve has released only 300 beta kits into the wild, so grab your companion cube and hold tight—we’re about to open one up.

After-the-fact-note: we specced out the Steam Machine on pcpartpicker.com and came up with roughly $1300 in parts.

There’s more teardown where that came from—keep up with us on Instagram, Facebook, and Twitter!

  1. EDU5JUeINhAYABZi
    • With only 300 Steam Boxes to go around, how can you possibly get one? Follow our detailed guide.

    • Or beg your co-worker, the inimitable Christopher Patton, for the opportunity to destroy his. We'll be careful, Chris! Probably.

    • We'd like to start with specs, but the Steam Machine hardware varies—and the components aren't exactly printed on the box. Will it pack a punchy i3 paired with a GTX 660? Maybe a monster i7 mated to a Titan?

    • We may never know—we can't stop drooling over the packaging.

    I love that the 'handle with care' stamp has a companion cube in the middle :D

    Adam Hintz -

    Be nice to my baby!

    Christopher Patton -

    Just wanted to point out that you made a slight error in step 17. You wrote originally that the PSU is 80 PLUS Gold efficient, then you went on to say it was 80 PLUS Bronze when the picture does indicate that it is Gold efficiency.

    Tanny Qureshi -

    Thanks! Got it updated.

    Andrew Optimus Goldheart -

    The irony is that you burn the companion cube afterward. I assume they knew people were going to tear this thing apart as readily as they'd toss the cube into the incinerator.

    Brandon Bachman -

  2. PRwDoOplHlsvHVFK
    PRwDoOplHlsvHVFK
    RwMGKubI4Q1vBaRP
    GTVSCVnrcNkNFLTd

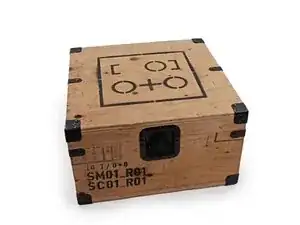

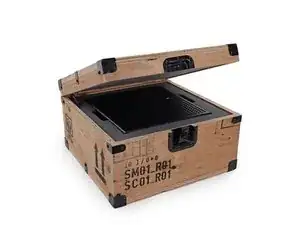

    • Whatever the contents, Valve wins the award for best packaging. Ever.

    • Is that a companion cube we spy?

    • We resist the urge to bring out the crowbar, unlatching the Steam Box box safely.

    • Looks like Steam neglected to ship brass goggles with the console, but there's only one way to be sure...

  3. hGJriHBeD5ukQE3r
    hGJriHBeD5ukQE3r
    IVAu23VUTUx4TfhQ
    jQBRejNrJurEFYLK

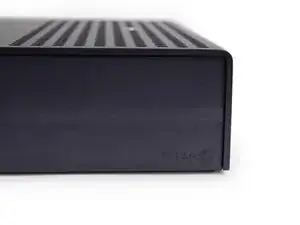

    • As we crack open the crate, no steam escapes—apart from this sweet logo.

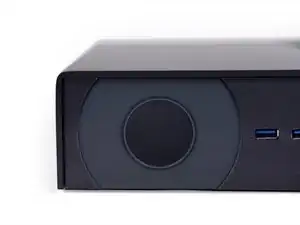

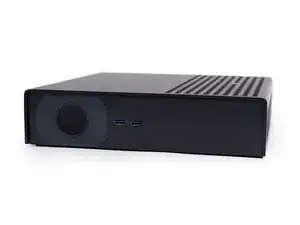

    • Up front: a ginormous button.

    • The button has a lighted indicator ring, and sits next to two USB 3.0 ports for your wired controllers.

    Regarding the lack of steam, it's a shame Valve didn't copy Nokia and their Hackerbox (limited edition N900 case)...

    http://vimeo.com/8337966

    :)

    Neil -

    Why do those front-facing USB ports look so tacked-on, I wonder? Everything else about this device looks sleek and rad, but then there's those two USB-holes kind of just awkwardly hanging out there.

    Adam Rezich -

    We were wondering the same thing—turns out, as you can see here, the front USB ports are individual cables held in place with a plastic bracket. Not as beautiful as we expected, but this is a prototype after all :)

    Andrew Optimus Goldheart -

    I'm doing DIY replica of this case (well, kind of). Could you tell dimensions of case, please?

    Valerii Kuznetsov -

    The Silverstone Raven RVZ01 is about as close to the chassis as you can get.

    shokikugawa -

  4. aXKSkWnCnA3BiZ3Z
    aXKSkWnCnA3BiZ3Z
    F1LrMyuOLMsH2cx6

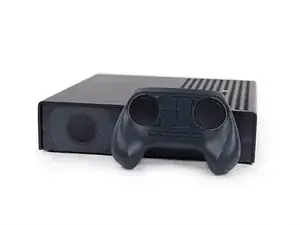

    • Before we put the main hardware under the knife, let's take a quick look at the side dishes.

    • Is this the future of the gamepad vs. keyboard-and-mouse debate? Valve seems to have wrapped a keyboard and mouse around a controller.

    • Individually configurable touchpads and loads of buttons make this a sort of hybrid of everyone's favorite input devices.

    • Valve is encouraging developers and tinkerers to experiment with its operating system, and as such has thoughtfully provided a contingency plan: a USB recovery drive.

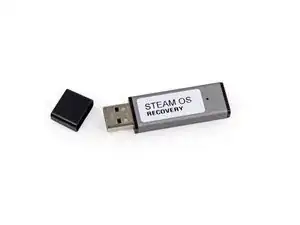

    • According to Valve: "SteamOS Beta ships with our Steam Client program, which... serves as a user interface and provides connectivity to our Steam online services. That being said, you can still access standard Linux desktop."

  5. eLYycEtCjddIsmrp
    eLYycEtCjddIsmrp
    gh2FdibVibUj5THj
    4NDuZNbAIeiQgTSv

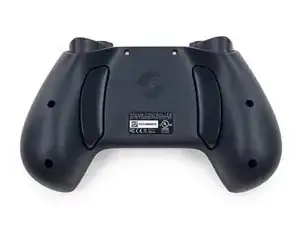

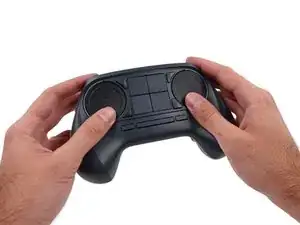

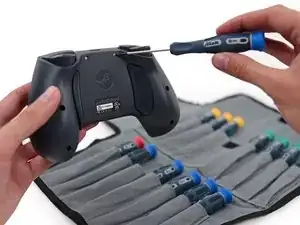

    • Bringing PC games to the living room without a keyboard means you're gonna need a controller with a lot of buttons. This looks like enough.

    • The only thing that feels better than a new controller in your hands is... taking it apart.

    • If you're keeping count, this is application number 101,997 of the Pro Tech Screwdriver Set.

  6. APPcpRlrUHgiDYVj
    APPcpRlrUHgiDYVj
    OAE34JG3LhIIOnOO

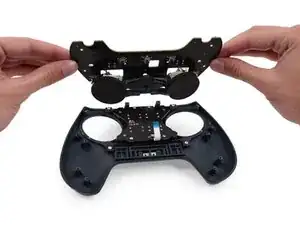

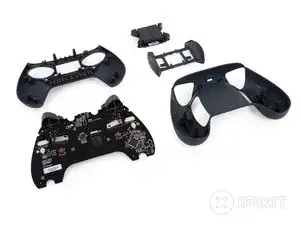

    • And we're in! The plastic casing separates into two halves: main button board and covers in the upper, and not a thing in the lower.

    • Speaking of nothing, where's the battery? We've grown accustomed to wireless console controllers, so this is a surprise. The Steam Machine Controller is wired only, and connects to the Box with the included extra-long USB cable.

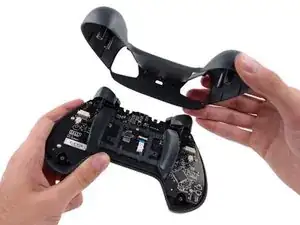

    • Lifting the main button board out gives a quick look at how the super-configurable touchpads fit into the unit.

    I think the plan with the Steam Controllers is to make them wireless, but the beta ones require a wired connection.

    Tahoma -

    Yes, this seems likely to us at iFixit as well.

    Taylor Arnicar -

  7. GdyCrZGGsNqD1LCA
    GdyCrZGGsNqD1LCA
    EYx6AS6GDPqOLYy6
    dFVAyVGrxMmNyxEl

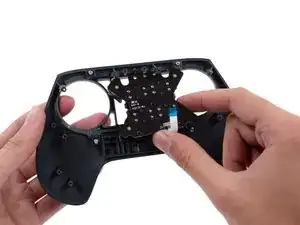

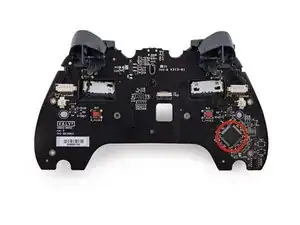

    • Reading all of those inputs and sending them back to the mothership is a tough job. But the NXP LPC11U37F microcontroller handles the task well.

    • Now if we could only figure out how to handle the buttons...

    • On the reverse of the the main board, we find three switches. Half Life 3 confirmed.

  8. Y2gVFNMNXBwatQfe

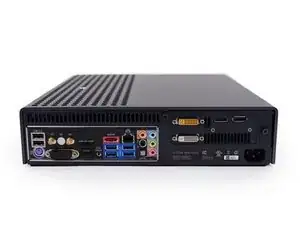

    • Back to the box: Around back, the Steam Machine's PC heritage is on full display. If this I/O panel is at all representative of final hardware, we can safely predict that connectivity will not be an issue:

    • PS/2 keyboard/mouse port

    • Two USB 2.0 and four USB 3.0 ports

    • HDMI, Dual-link DVI, and DisplayPort

    • S/PDIF digital optical audio out

    • eSATA

    • RJ-45 Ethernet port, plus connectors for the external Wi-Fi antenna

    • 3.5 mm audio in/out, rear speaker, c/sub, and mic ports

  9. NNMTaPlL15MGrDP3
    NNMTaPlL15MGrDP3
    JyFKKYkLDevtoTuF
    kGLSYKc4XSm4ECFJ

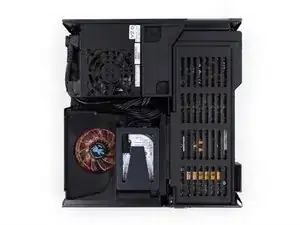

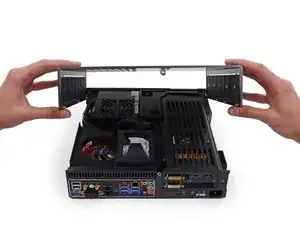

    • Sturdy posts and a nice sliding lock secure the hefty upper case to the lower. A single screw locks them in place and keeps your steam properly bottled up.

    • Our first look, much to nobody's surprise, reveals all the usual components of a gaming computer. Video card, hard drive, CPU cooler, and power supply are all neatly tucked beneath cowlings and ducts.

    • See that shiny grille hole there? We've got a theory for that:

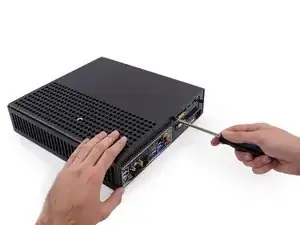

    • Only one of the 300 holes has had its paint filed away, and it's a different one than other units we've seen on the web. 300 certainly sounds like it might be 300 beta units. We'll bet our lunch money that these holes are some kind of unit marker for the limited run of prototypes.

    There are 300 vent holes. Based on my count it looks like yours is #167. On the sticker near the back by a QR code it does indeed seem to say FX-167.

    http://cynagen.com/steam-machines/

    Dylan -

  10. 1xaQafFaOFBkQPQe
    1xaQafFaOFBkQPQe
    XTTgJRb5TQvG1vPd

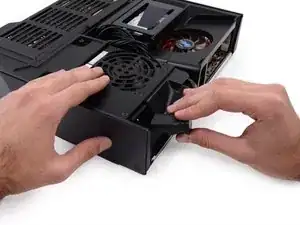

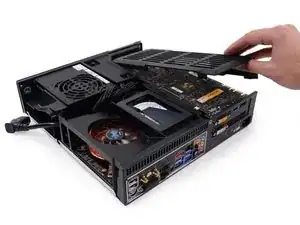

    • This looks like a built-in extension cord, to bring power from the back of the Steam Box up to the power supply in the front. Just to be safe, we'll start the unplugging here.

    • A molded plastic cowling covers the video card and fills the void between the card and the upper case, protecting it from shaking around and damaging itself.

  11. oiqYDvQAPGiI1Cps
    oiqYDvQAPGiI1Cps
    KokqY613S4Sbx54b
    yDgbQVIBdvoOKhKn

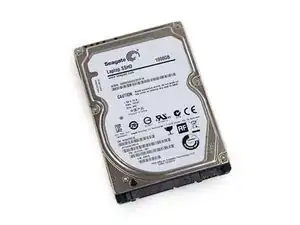

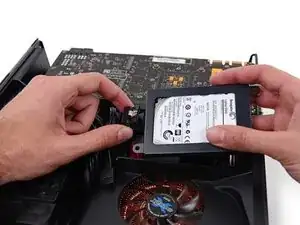

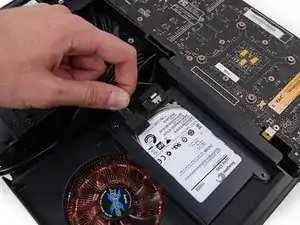

    • Wild SATA data and power connectors appear! This pleases iFixit.

    • If you were worried about storage capacity, worry no more. It seems the Steam Box is prepped for a second hard drive to store all your games.

    • This particular Steam Machine has a 1 TB Seagate ST1000LM014 laptop SSHD (Solid State Hybrid Drive). It's a 2.5" SATA III 6 Gb/s, 5400 RPM SSHD with a 64 MB DRAM cache and 8 GB MLC NAND Flash.

    • TL;DR This is a one terabyte platter drive paired with an 8 GB SSD and some clever software that keeps your most-frequently used data on the super-fast SSD.

  12. Ov1aVjmE2IqQpPAS
    Ov1aVjmE2IqQpPAS
    IsParfAoCQKLY2Op
    VNiZkFWHMMgMoxAr

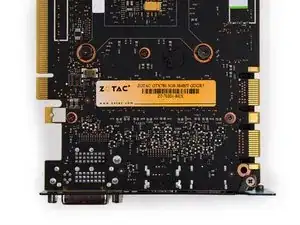

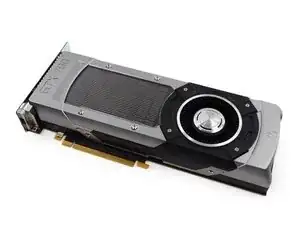

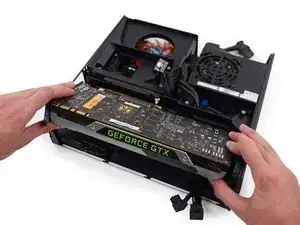

    • Tucked away inside this unit is a ZOTAC GeForce GTX 780 3 GB GDDR5 graphics card.

    • Just to save you the trouble, here are its sweet specs:

    • 2304 Stream Processors running at 863 MHz Base / 900 MHz Boost

    • 3 GB GDDR5 RAM running at 6008 MHz

    • PCI Express 3.0, SLI-compatible

    • As an added bonus, it looks like some kind of futuristic car.

    How can it have Stream Processors if it is an nVidia card, shouldn't it be CUDA cores? AMD cards have stream processors.

    Matthew Bilker -

    CUDA Cores are a type of stream processors. nVidia started calling them CUDA Cores around the Fermi architecture. The differences are marketing and a difference in instruction set between AMD and nVidia stream processors, but they both fit into that categorization.

    Brian Volk -

  13. HIiO1C2BFrtYjd1X
    HIiO1C2BFrtYjd1X
    PPEfUuIUulu1HsIY

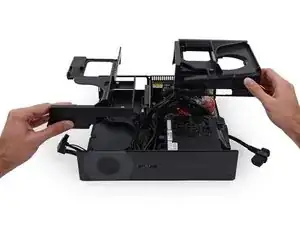

    • The inner cowling is one complex bit of custom-fitted craftsmanship. Its two parts were a little tough to wrangle out of their homes.

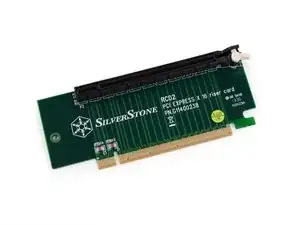

    • A SilverStone RC2 PCI Express x16 riser card also falls in our quest toward motherboard glory.

  14. DmVYnkcTM5FI1EdN
    DmVYnkcTM5FI1EdN
    jaeCIN14JQpunVtM
    Mf2pNLT2TWFeOMWj

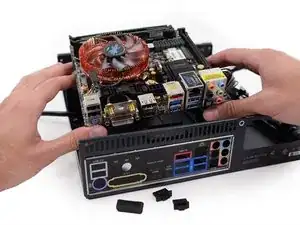

    • Out comes the entire off-the-shelf Mini-ITX motherboard.

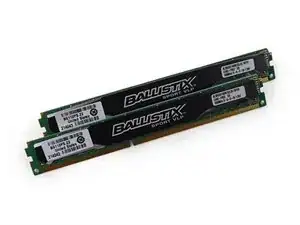

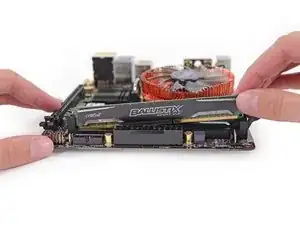

    • This Steam Box is equipped with two modules of Crucial Ballistix Sport 8 GB DDR3 (PC3 12800) RAM. At 16 GB total, it's the maximum this motherboard will support.

    • A nook in the motherboard cowling gives you access to the RAM before you get this deep. But they won't be easy to finagle out of their slots, even with only one clip apiece to secure them.

    • This motherboard includes DisplayPort, DVI, and HDMI ports, just in case you feel like using the integrated Intel HD Graphics 4600 instead of the GTX 780.

    • Valve was nice enough to discourage this with port covers.

  15. W3t5JlDEA1bp1vOD
    W3t5JlDEA1bp1vOD
    iUsehQ21DZvb5b4Q
    v2R5iEwKRPFlYTKT
    • A gaming giant this juiced needs some serious cooling power; this fancy fan is no surprise.

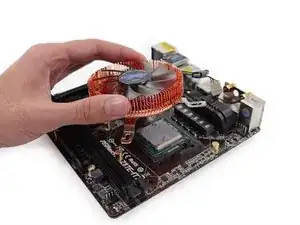

    • This heatsink fan is a Zalman CNPS 2X Mini-ITX CPU cooler. Big AND quiet—nice.

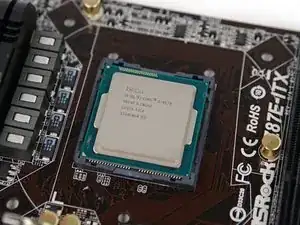

    • Under the hood, the CPU powering our Steam Machine is a 3.2 GHz (with a Max Turbo Frequency of 3.6 GHz) Intel Core i5-4570.

    Why does the CPU not have the retention assembly? Is removal requiered for the Cooler?

    Elpidio Simon -

  16. jcrmPEkARRVLUNnD
    jcrmPEkARRVLUNnD
    t6iTcbbQMus2fMW6

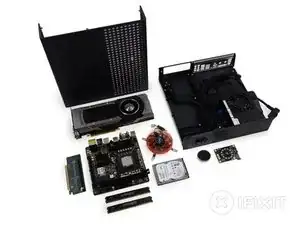

    • After mining through a small mountain of off-the-shelf components, we strike a vein of Valve-designed gold.

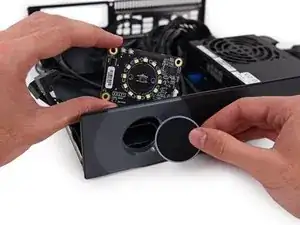

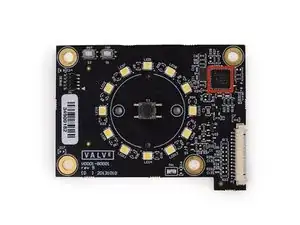

    • Behind the "Big Button" on the front of the Machine lies a board containing 12 LEDs—for illuminating the circumference of the power switch—plus the clicky button itself.

    • The board is wrangled by an NXP LPC11U24F 32-bit ARM Cortex-M0 microcontroller.

    How is the valve button connected to the rest of the machine? Also possible to see the backside of the button?

    zer0her0 -

    Probably USB considering the microcontroller on it has USB device support. Simplest way to interface custom hardware to a PC I would think. Or simple serial. But I'd say USB along with a few I/O pins that connect to the mobos power/reset lines. This is backed up by the two differential traces you can see going from the connector to the two USB pins on the micro (check the datasheet) in the image of the custom board.

    Ryan V -

    Ryan, I was more interested on seeing 1) the cabling 2) the exact headers they plug into, I think they'd need to plug into some power header in addition to USB. (do boards even come w/ serial headers still?) oh and 3) the backside, I'm sure it's boring but still nice to see.

    zer0her0 -

    Why did they find it necessary to use an ARM to drive 12 LEDs and read one button? Surely they could have found a cheaper microcontroller to do that. (I didn't count the RST and ISP buttons in the upper left corner because they're presumably only used for debugging the board.)

    notexactly -

    They probably used the ARM because it's similar to the one in the controller and they had the same team design both PCBs. As others have said, it is a prototype, so I would imagine that they went with what they knew. Mass production would likely see that chip replaced with something much cheaper.

    David -

    The Cortex-M0 line is actually meant to compete with 8-bit and 16-bit MCUs, though they are slightly pricier still. It still depends on what's needed (and you need at least 13 I/O lines).

    shokikugawa -

    But what does that MCU actually do? Do those LEDs just straight light up, or do they create some patterns, some primitive animation...?

    Gianmario Scotti -

  17. WnqcCOWOWG6hxZDR
    WnqcCOWOWG6hxZDR
    PeDcnnXunavBZQTr
    AMiKjT6WaPQegecv

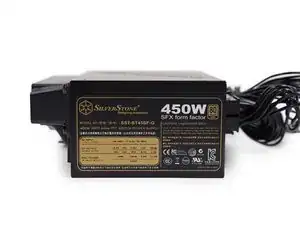

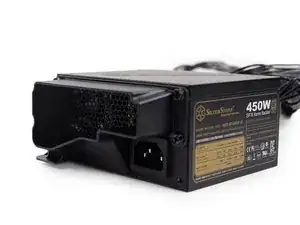

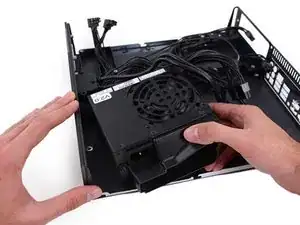

    • We found a SilverStone SST-ST45SF-G 450W SFX12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Full Modular Active PFC Power Supply in our Steam Machine.

    • Some notable features about the power supply:

    • 450 W continuous power output at 40° C operating temperature rated for 24/7 operation

    • 80 PLUS Gold level efficiency (87%~90% efficiency at 20%~100% loading)

    • Silent running 80 mm fan with 18 dBA minimum

    your information is conflicting with source

    80 PLUS Gold level efficiency (87%~90% efficiency at 20%~100% loading)

    450W continuous power output at 40℃ operating temperature rated for 24/7 operation

    Dung Huy Le -

    Thanks for catching that! I've updated the step to reflect the proper specs.

    Andrew Optimus Goldheart -

  18. BDGQNPBcglYQ1mZG
    BDGQNPBcglYQ1mZG
    YfsGYdOFhoErwRTo
    ehTjl1M6E6tQXBwh
    • Steam Machine (Beta) Repairability Score: 9 out of 10 (10 is easiest to repair):

    • The Steam Machine is designed to be opened and worked on. The case is secured with a single Phillips #2 screw.

    • Modular design with off-the-shelf components makes it easy to remove and upgrade the hard drive and video card.

    • RAM removal is made difficult by the motherboard cowling, and may require removing the cowling.

    • During reassembly, precise cable routing is difficult without a repair manual.

    • Our Steam Machine is a prototype, but according to Valve, you'll be able to fashion your own Steam Machine out of any computer running SteamOS. Your mileage may vary, and future revisions may have different scores.
