8

The drawing mode provided by zoomit is wonderful during a presentation. Is there any software on Ubuntu that provides the same functionality?

don.joey
  • 29,442
tristan
  • 183
  • for whom may not know zoomit. https://docs.microsoft.com/en-us/sysinternals/downloads/zoomit

    Features

    • freeze screenshot and zoom
    • live zoom in and out
    • simple drawing on screenshot
    • break timer
     – Dennis C May 06 '21 at 07:15

6 Answers6

8

Gromit-MPX

You might want to give Gromit-MPX (which I authored) a try:

Gromit-MPX is an on-screen annotation tool that works with any Unix desktop environment under X11 as well as Wayland.

It's hotkey-based so there are no widgets in your way. Also, you can configure colors, mouse button mappings and hotkeys. No zooming though, only annotations. Go here for details.

You can install it through Flathub.

Pablo Bianchi
  • 17,552
bk138
  • 320
  • 2
  • 5
4

If you have Ubuntu, you should have compiz, so use compizconfig-settings-manager to turn on some plugins. This manager is in software-center with plugins too. When you will have some problems with crashing of compiz because your testing, install fusion-icon to quick reloading it.

compizconfig-settings-manager can be launched by command ccsm.

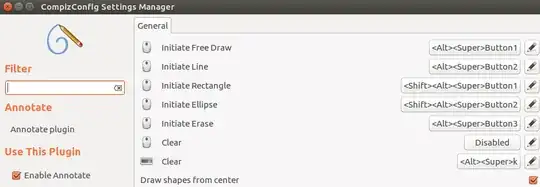

Annotate (under Extras): Drawing on the screen.

screenshot

Enhanced Zoom Desktop (under accessibility): Does that zoom.

screenshot

Set-up shortcut as you like and enjoy. :)

Pablo Bianchi
  • 17,552
jirimertin
  • 176
  • 2
    But beware: Compiz is not as stable as it was in 2010, since Unity required a lot of changes, and the Unity developers didn't care about any Compiz functionality apart from those features required by Unity itself. Expect crashes. Expect inability to log into the Unity session. Expect that you'll have to reset the Unity configuration to default values (in other words: deleting the Compiz configuration files). – soulsource May 13 '14 at 10:36
0
Zoomit.exe Under Wine

I got ZoomIt.exe to work with Wine (Version wine-8.21) on GNOME desktop of Ubuntu 20.04.6 LTS.

command: wine ZoomIt.exe 2>/dev/null &

Then ZoomIt appears as a tiny icon in the "system tray" of the entire bar at the top of the screen / the "top panel". After clicking on the tiny icon, Zoomit opens its configuration menu. and can be configured.
After using the mouse for picking an action from the Menu, Zooming in and Drawing with the mouse work smoothly.

However the hotkeys CTRL + 1 etc do not work. The Wine Application does not receive these hotkeys on my system.

Alternative

in Settings, the Universal Access dialog, there is a Zoom feature that you can toggle on and off. I creates a big preview window, dynamically updated with the content on the current desktop.

However I cannot really recommend that Zoom feature. I have a dual-monitor setup with different resolutions, and there the preview window is either to big or to unrespnsive, or difficult to turn back off.

knb
  • 5,342
-1

You can try flameshot, it is not what you expect, it just a screenshot utility with a nice bunch of drawing stuff.

TUSqasi
  • 99
-1

Check out "Shutter". It's in the repos. It's basically a screenshot tool that lets you draw on the image with a built in tool, upload them directly to various sites, etc.

Gerowen
  • 1,468
-2

In Linux Mint KDE there are:

Meta= to magnify
Meta- to reduce magnification
Meta0 to go back to normal

They are under KWin shortcuts in settings.

I understand that is no ZoomIt, but I haven't found anything close. Most software is just a window showing a magnification which is quite useless during presentations.

I understand that it's not Ubuntu either but, it's close and maybe Ubuntu has similar settings.

WooYek
  • 299
