ANKER SoundCore Bluetooth Chip Replacement

Geschrieben von: Garrin Schaap
  • Kommentare: 0
ANKER SoundCore Bluetooth Chip Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This procedure is necessary if the Bluetooth chip is broken and needs to be replaced. If the device’s Bluetooth connection chip is broken, it stops the device from pairing at all and prevents any Bluetooth interaction.

Before attempting to replace anything, it is recommended that you look at this device’s troubleshooting guide.

If you wish to restore the Bluetooth ability of your speaker, you must desolder the Bluetooth chip and replace it. Beware this is incredibly hard to do. The procedure requires tools to open the speaker and unscrew the fastening screws. Soldering experience is needed.

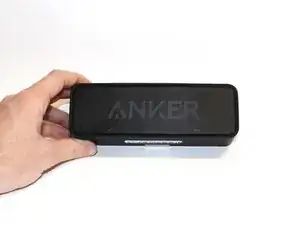

  1. ntPTEs3PtENGKVPx
    ntPTEs3PtENGKVPx
    PFJNoXJsxq4sHf6e

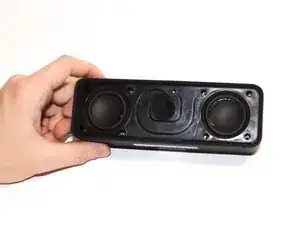

    jJv2bjqcHrVwRQXZ

    • Use the plastic opening tool to pry off the screen.

    • Remove the screen from the device.

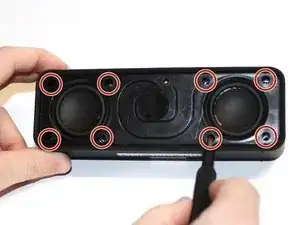

  2. BP4apbZDHd5ZwyRC

    • Remove the eight 10 mm Phillips #0 screws from the speaker mount.

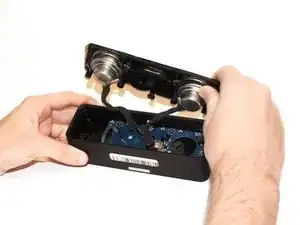

  3. CXZ4aEWZcvjktcrl

    • Lift the speaker mount out of the speaker body.

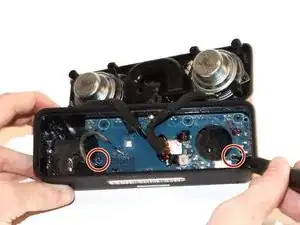

  4. N4uDWry2X13sHohj

    • Remove the two 8mm Phillips #0 screws from the circuit board.

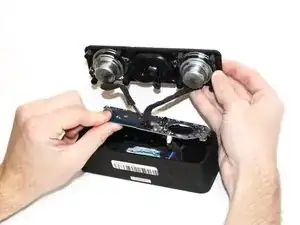

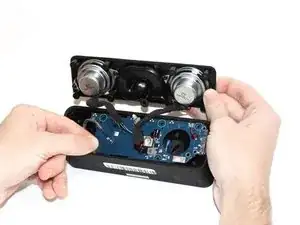

  5. JUnZi5e3uxI66gpF
    JUnZi5e3uxI66gpF
    UPkSUhafvIATn13W

    • Remove the circuit board from its mount.

  6. jlMLeDTwlRWAL4BT

    • Flip the circuit board to the back side.

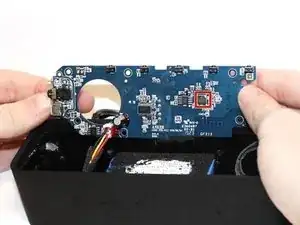

  7. beMGgqxKqQKqLxlj

    • Desolder the Bluetooth chip (on the right side of the board) and replace it with the new Bluetooth chip.

    • For help soldering and desoldering, follow this guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
