This is a step-be-step guide on how to replace the ANKER Soundcore speakers.

Before attempting to replace anything, it is recommended that you look at this device’s troubleshooting guide.

Faulty speakers are often the cause of poor sound quality, but are not always the problem. Check the troubleshooting guide before, for any other possible solutions to poor sound quality.

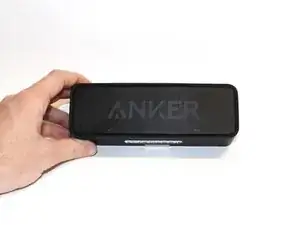

  1. 1eCm1HorTWrASZFH
    1eCm1HorTWrASZFH

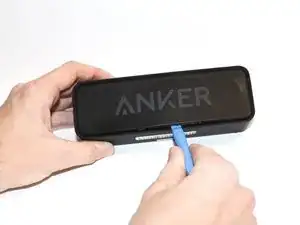

    C2waEtYITkCVrhYH
    3fQmjHrPAUaXECUe
    • Use a iFixit plastic opening tool to pry off the screen.

    • Remove the screen from the device.

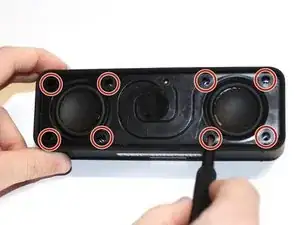

  2. B3ecDhlqRnPouErc
    • Remove the 10mm Philips #0 screws from speaker mount.

  3. 1EVZwO2SEQDGkKRT
    1EVZwO2SEQDGkKRT

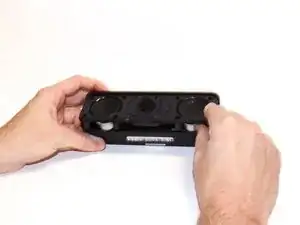

    aTSqDhXfGTBlbn2x

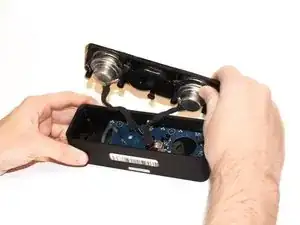

    1ebghx1yp6oLZcMn

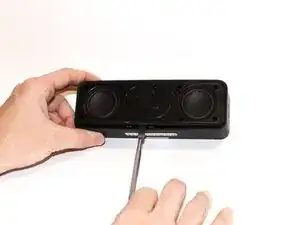

    • Use a spudger tool to remove speaker mount.

    • Ensure all wires are still properly attached in device.

  4. BDLKbBMUmTTws1Yi
    BDLKbBMUmTTws1Yi
    MAQYqsOWELbPvuSc
    1VbbYZ3y1mUV123G
    • Remove the 8mm Philips #0 screws holding speakers in place.

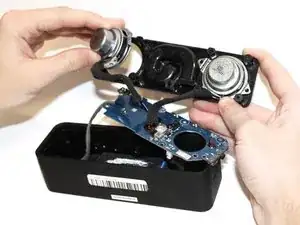

  5. AkbweaHHSJQ4IZjJ
    AkbweaHHSJQ4IZjJ

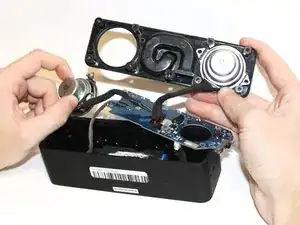

    6NJU2LIGfvHAGtfd
    AFZtgDlhyAoKQjoL
    • Pull out the speakers.

  6. AoQgkQhNljI3ooWC
    AoQgkQhNljI3ooWC

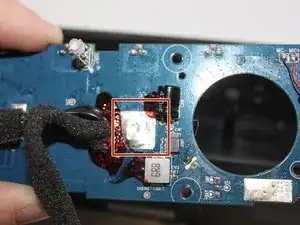

    1uKUGlJVREmwUhHZ

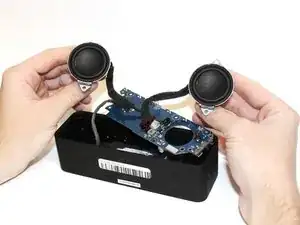

    • Desolder the speaker wires.

    • Remove both of the speakers from the circuit board.

    • For help soldering and desoldering, follow this guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
