ASUS TUF Gaming F15 FX506HEB-DB74 Battery Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
ASUS TUF Gaming F15 FX506HEB-DB74 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to replace the battery in your ASUS TUF Gaming F15 FX506HEB-DB74 Laptop.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. QTEpynD4dJlQ5dCD
    QTEpynD4dJlQ5dCD
    uIPUxh1CufR3a1Er

    • Remove the 11 Phillips screws securing the lower case:

    • Seven 11.6 mm screws

    • Two 14.6 mm screws

    • Two 6.1 mm screws

  2. PTVLu5Ys2uOg2lUN
    PTVLu5Ys2uOg2lUN
    ZQQvBZTRurlWXdCs

    • Insert an opening pick between the lower case and the chassis on the front right edge.

  3. wIeNMQexu2ntGkSe
    wIeNMQexu2ntGkSe
    2UWpbkQ3jIQaqlFd

    • Slide the pick along the right edge to release the clips securing the lower case.

  4. 3dqrEcyGUBW2LojQ
    3dqrEcyGUBW2LojQ
    Qf5BtrPoyaXH1cMw
    yiQpggYH2iZtA5aV

    • Continue sliding the opening pick along the perimeter of the lower case to release the remaining clips.

  5. EeZUQ5YtGLXIkxqG
    EeZUQ5YtGLXIkxqG
    bUuVBZwJjgysL6Tv
    UCAJsZNYKh3rCdPl

    • Lift the lower case from the chassis and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

  6. RJXHWxEGSLVV5muy
    RJXHWxEGSLVV5muy
    EMykCVnT2t2bhyOY

    • Use your fingers to move the plastic that covers the battery connector out of the way.

    • If the plastic is not staying out of the way use a piece of tape to secure it.

  7. YNA23OMcHFr1poyU
    YNA23OMcHFr1poyU
    csfPGa3HNTlaLQwW
    c5UVm5ICg1NlCy65

    • Use the flat end of a spudger to push each side of the battery connector until it comes out of the socket.

  8. rCkUrW2yhQqjZfti
    rCkUrW2yhQqjZfti
    RKXyXQuc1Tw1WdKc

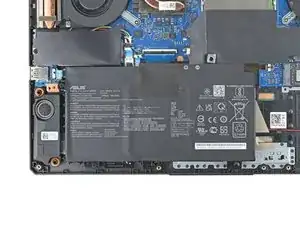

    • Use a Phillips screwdriver to remove the two 6.1 mm-long screws securing the battery.

  9. 4FCyaKJWcFxuMSTc
    4FCyaKJWcFxuMSTc
    kWfFfdHTFRGhfGXY
    tlDUfu4hAALUOLXW

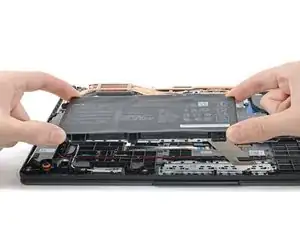

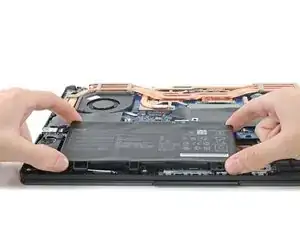

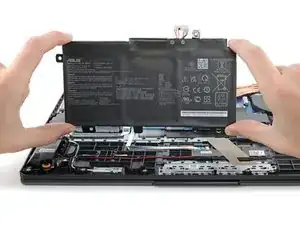

    • Lift the battery straight out of its recess and remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.

For optimal performance, calibrate your newly installed battery after completing this guide.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
