ATT CL2940 Speakerphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 - 40 Minuten

Einleitung

A speakerphone is used to talk hands-free on the phone. This guide will educate you on how to replace the speakerphone of AT&T phone model ATT CL2940.

You will need to solder to complete this guide. If you are not familiar, check out this article for an introduction.

  1. TkrvmhM5T2HRKSb5
    TkrvmhM5T2HRKSb5
    A5nSAkjP2NfHs4yK
    xhVxGOoEkjWjiOww

    • Remove five 9.5 mm Phillips #1 screws from the back panel of the phone.

  2. UFGjamdGKS2tX5Lb
    UFGjamdGKS2tX5Lb
    JxFg3uZ1beBdoQDk
    X2ZPG1feZ2dZeUfs

    • Slide the metal spudger into the crack and continue around to the front panel of the phone.

    • Be careful not to break the clips that hold the back panel to the front panel.

  3. UPJdLAAOFnWjEROa

    • When setting the back panel down, be careful to not rip any of the wires off of the internal components.

  4. ZxKYpROHTK3WHW6n
    ZxKYpROHTK3WHW6n

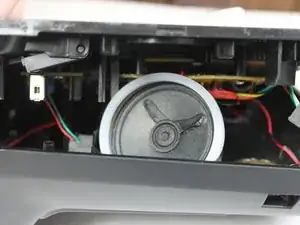

    TYFWbdRRp5B4tni3

    • Remove the front panel of the device as shown.

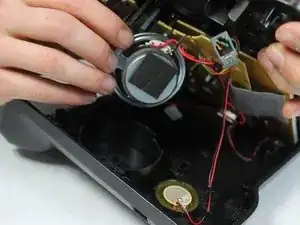

  5. ln1dHLH4DlVQIS4A
    ln1dHLH4DlVQIS4A
    dfTMPqIw6EZOBIsY

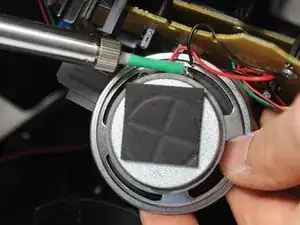

    1wCvNLWIqlk4kMQf

    • Desolder the speakerphone with a soldering iron.

    • If you are unfamiliar with solder, check out the article on soldering and be very careful. The iron is hot!

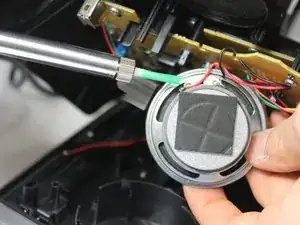

  6. MUFXNlLbmdOAwt5F
    MUFXNlLbmdOAwt5F

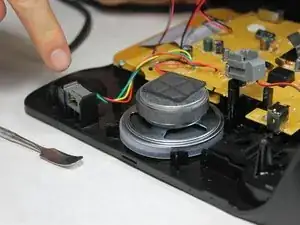

    jRnTy16wWDqr1LBX

    • Use the soldering iron to reconnect the wires to the new speaker.

    • Place the new speaker back in place.

    • Make sure that all of the components are back in place.
