Acer Aspire E1-510P-4637 CMOS Battery Replacement

Geschrieben von: Caleb lindsay
  • Kommentare: 2
Acer Aspire E1-510P-4637 CMOS Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

25 Minuten

Einleitung

  1. Ci1emy66YxoULWo2

    • To release the battery, depress the battery release with a nylon spudger. Hold the latch down and slide it over.

  2. cuGAhIN6J62ZLpTA

    • Firmly grab hold of the battery and slide it out of the laptop.

  3. JgiZoOkQ1L3ReOPO

    • Remove the M2.5x8 screw with a PH1 screwdriver.

  4. lwDbYN4DalHEJipF

    • Use the plastic opening tool to pop off the small back cover.

  5. YARXjvM22xPd3SYA

    • Use a PH0 Phillips screwdriver to remove the screw securing the hard drive.

  6. 1LrxWBPbonqC32NF
    1LrxWBPbonqC32NF
    ityaLXRJucgaosgG

    • Use a nylon spudger to slightly pry up the hard drive near the screw holes.

  7. UwND5nuoqc153EHP
    UwND5nuoqc153EHP
    HhDtQeYKycmMP6EZ
    BdbDcPKeYCGjECT4

    • Grab hold of the plastic tab and pull the hard drive away from the connectors. This will release the hard drive.

    • The hard drive connector is fragile. Handle with care.

  8. JmwoHifxudW6IdO4

    • Remove the fourteen M2.5x8 screws highlighted in the picture with a PH0 Phillips screwdriver.

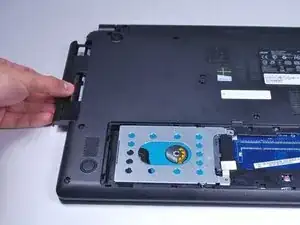

  9. SR3a2MyPOkCp2chY

    • Slide out the disk drive tray.

  10. aQiiGYQMvVyqOGDg

    • Use the plastic opening tool to gently pry open the laptop.

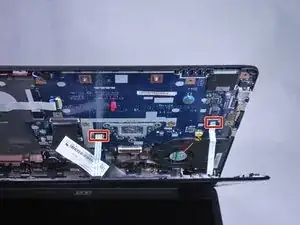

  11. bheRS2FPYqpNgEak

    • Slowly rotate the back cover up to reveal cables attached to the motherboard.

    • Carefully slide the connectors out of their receptacle to remove the back panel.

    • The connectors are very small and fragile. Handle with care.

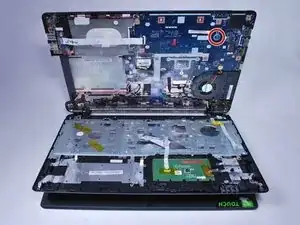

  12. NRbfHs2PZJQncCek
    NRbfHs2PZJQncCek

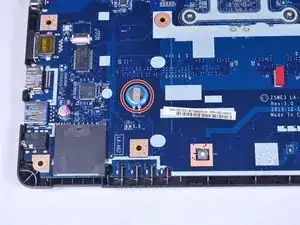

    cJ6nK1nYRoPrUyOA

    • Open the up the laptop to reveal the CMOS battery.

    • Desolder the CMOS battery to remove it. For soldering help, check out iFixit's soldering guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
