Acer Aspire Switch 10 SW5-012-18MY Power Button Replacement

Geschrieben von: Grecia Corrada
  • Kommentare: 1
Acer Aspire Switch 10 SW5-012-18MY Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

If the power button on your device is unresponsive or is not functioning properly, you may need to replace the power button on your device. Before attempting to replace the power button, please visit the troubleshooting page for this device. Also, make sure that the device is charged correctly. If you have attempted the recommendations on the troubleshooting page and the power button is still not functioning properly, you can replace the power button on your device. Carefully follow the steps in this guide to replace the power button.

  1. YKgrOCdRAe1SXnYv
    YKgrOCdRAe1SXnYv
    eCAljnNhojPTgBIp

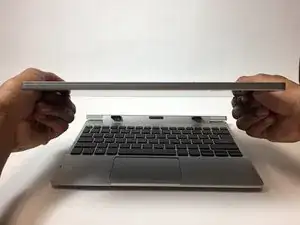

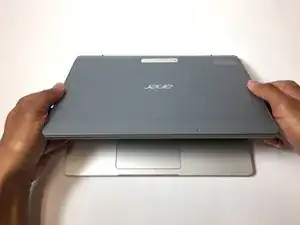

    • Remove the tablet from the keyboard.

    • You will not be needing the keyboard for this guide.

  2. IWYNgSakZpyS4K44
    IWYNgSakZpyS4K44
    FadagGxQK2mFQUM4
    PIvxoYZKZvUyIMaY

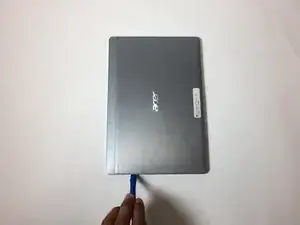

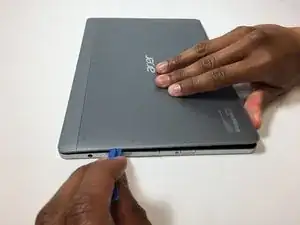

    • Use the opening tool to open the back cover. The opening tool should fit under the cover if you place it above the power button.

    • Lift this side of the back cover once the opening tool is inside the device.

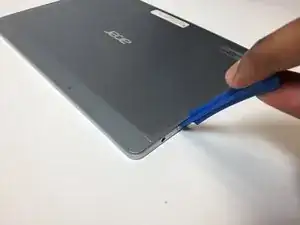

    • Use the opening tool and your hands to gradually work around the edges of the cover.

  3. nZMqHqrQoO3ScDIG
    nZMqHqrQoO3ScDIG
    jvBPcDyRDGMF6rAL

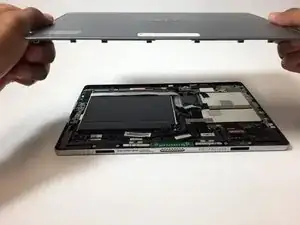

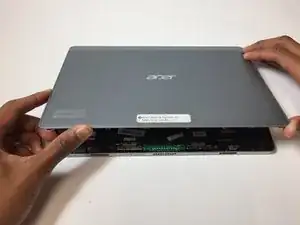

    • Lift the back cover off of the device with your hands.

    • You will need to use some force to pull off the back cover.

  4. JZGvQiiQM2BxVQLG
    JZGvQiiQM2BxVQLG
    qRWSJq2aAIbNiCQC

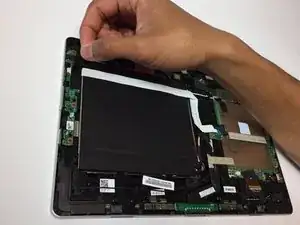

    • Remove the piece of black, thin tape that is attached to the circuit board closest to the power button.

  5. U1f2ohtKHUcIvlgH
    U1f2ohtKHUcIvlgH
    eOvyOWk2ZHdCBkwD
    AluWOiLk6ThSAbKE

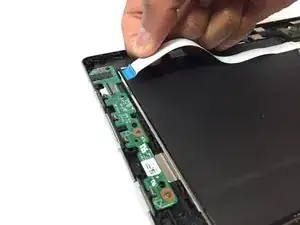

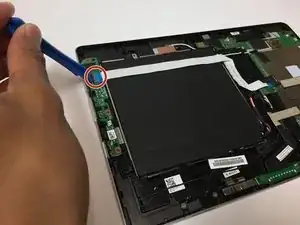

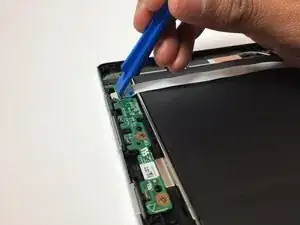

    • Use the opening tool to lift the ZIF connector that is holding the ribbon cable in place.

    • Pull out the ribbon cable from the circuit board. This cable should have the word "Audio" on it.

  6. PPRUVtqHvoyftHyT
    PPRUVtqHvoyftHyT
    YfEPkOJ1wYw4UWds
    4YxsGbPIVI5t1uRR

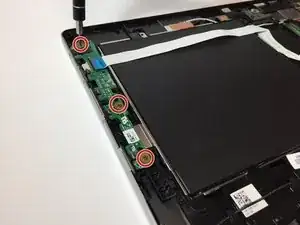

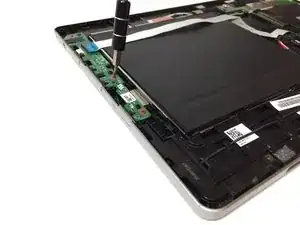

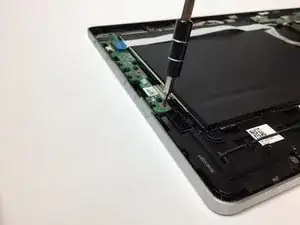

    • Use the Phillips #000 screwdriver to remove the three 3 mm screws on the circuit board.

  7. hro2HMkHnJnTJYEl
    hro2HMkHnJnTJYEl
    O2Fi4SGJXIlAbTCm

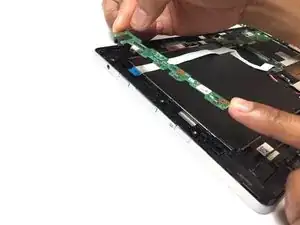

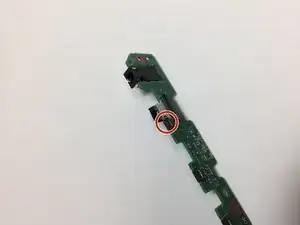

    • Carefully remove the circuit board from the device. The power button is located on this piece.

    • To replace the power button on this piece, please go to the page How To Solder and Desolder Connections.

Abschluss

To reassemble your device, follow these instructions in reverse order.
