If the power light on your device is not responding when the device is turned on, then you may need to replace the power light. Before attempting to replace the power light, please visit the troubleshooting page and attempt all of the recommendations described under the heading Power Light Does Not Light Up. If you have attempted the suggestions on the troubleshooting page and the power light is still not working properly, you can replace the power light with the help of this guide. Carefully follow the steps in this guide to replace the power light on our device.
Werkzeuge
-
-

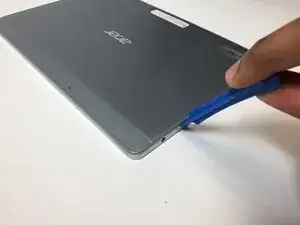

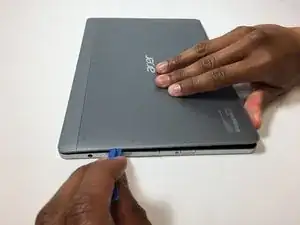

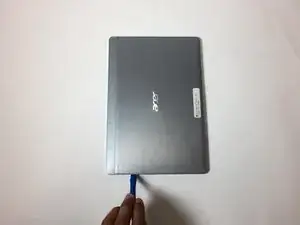

Use the opening tool to open the back cover. The opening tool should fit under the cover if you place it above the power button, as shown in the pictures.
-

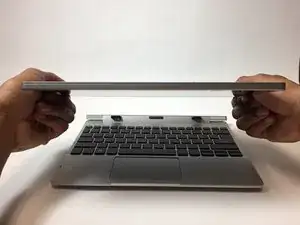

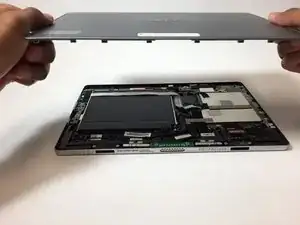

Lift this side of the back cover once the opening tool is inside the device, as shown in the third picture.
-

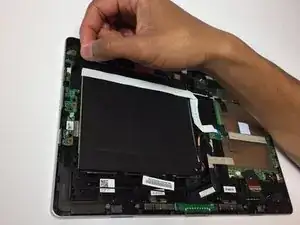

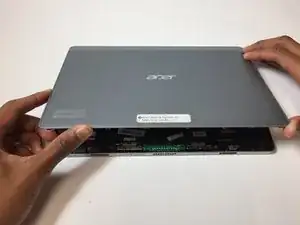

Use the opening tool and your hands to gradually work around the edges of the cover.
-
-
-

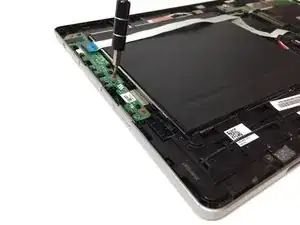

Remove the piece of black, thin tape that is attached to the circuit board closest to the power button.
-
-
-

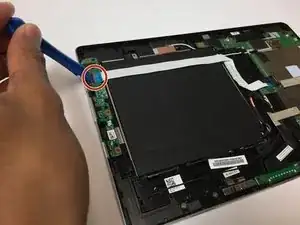

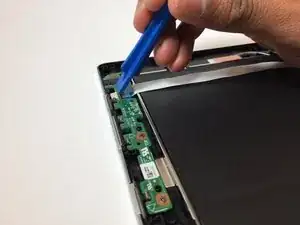

Use the opening tool to lift the black ZIF connector holding the ribbon cable in place.
-

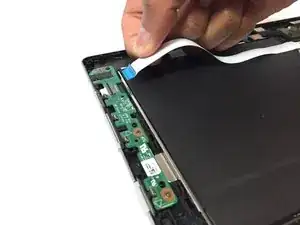

Pull out the ribbon cable from the circuit board. This cable should have the word "Audio" on it.
-
-
-

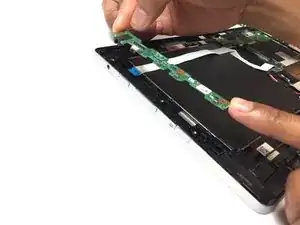

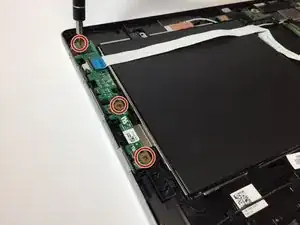

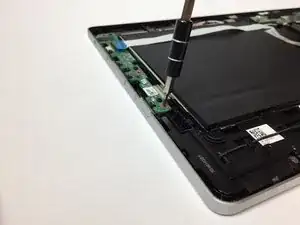

Carefully remove the circuit board from the device. The power light is located on this board.
-
To reassemble your device, follow these instructions in reverse order.
