Acer Chromebook 15 CB5-571-C09S Fan Replacement

Geschrieben von: Sakiynah Howard
  • Kommentare: 1
Acer Chromebook 15 CB5-571-C09S Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

This guide will walk you through replacing the fan from your Acer Chromebook 15 CB5-571-C09S.

  1. JMxJHm4x5MUqOri1

    • Place the device on a flat surface faced down so that the fan vents are at the top of the device.

  2. WmCaEvKYGE614Q6U
    WmCaEvKYGE614Q6U
    xOBoISsDVwOP1Q2m

    • Unscrew the eighteen 6 mm PH0 Phillips head screws from the back of the device.

  3. aGmPTYtPMOPsNqL3
    aGmPTYtPMOPsNqL3
    ghceCUUBQBMqCaJK

    • Use a plastic opening tool to pry open the back cover around the edges of the device.

    • Be careful not to crack or break the back cover of the device.

    • You will have to adjust the position of the device to pry it open along all the edges.

  4. Wme2LGVeqD2p5DYq
    Wme2LGVeqD2p5DYq
    JRtNXknG1eBVHK4D

    • Stand the device up with the hinges on top and carefully pull apart the back cover from the device.

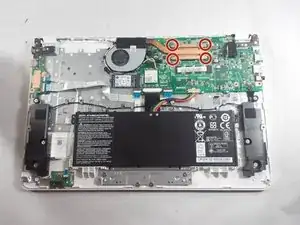

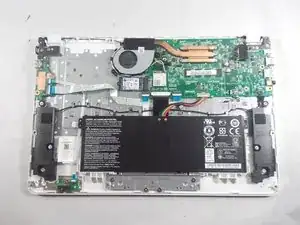

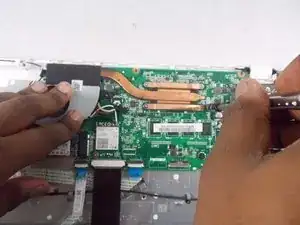

  5. fAUcFwBypxh1NL4h
    fAUcFwBypxh1NL4h
    uCtWnLhkJx3tiJDj
    nxATJ4EPKJal3aJt

    • The fan is located at the top of the device enclosed by a grey plastic covering and is attached to the motherboard by a piece of brass colored metal.

    • Unscrew the four 3 mm PH00 Phillips screws located on the corner edges of the brass colored piece of metal.

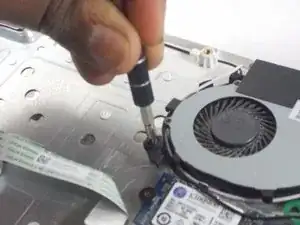

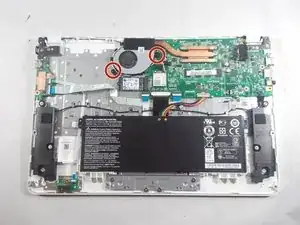

  6. HkxdrJnuPJBh5O3M
    HkxdrJnuPJBh5O3M
    ib5ixciYn6rvUMG6

    • Unscrew the two 4 mm PH00 Phillips head screws on either side of the the fan.

    • Be aware that these screw are enclosed by small pieces of plastic and are not to be removed from the fan cover.

  7. BnI6KEEES3A1qceW
    BnI6KEEES3A1qceW
    OXEDeKLnFQpTtxDu

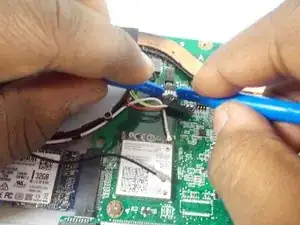

    • Disconnect the fan connector from the motherboard using two plastic opening tools.

    • The fan connector is the white "plug" that connects the battery to the motherboard with yellow, white, red and black wires attached to it.

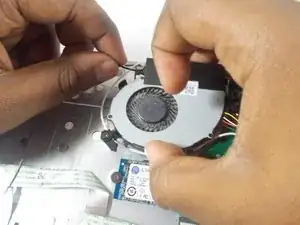

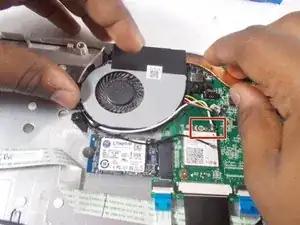

  8. GE4xYbeEBu2KZAFF
    GE4xYbeEBu2KZAFF
    m1Y6gJAFiSvLowCy

    • Carefully unwrap the black and white wires from around the fan cover.

    • Be careful not to remove the wires from the Intel Dual Band Wireless-AC 7260 ports located just beneath the fan connector.

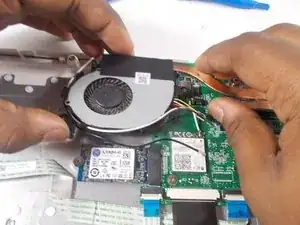

  9. LZhCleyHkPQ5NjBN

    • Grab the fan by its cover and the brass colored piece of metal and carefully lift up and pull out the fan from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sakiynah Howard

Mitglied seit: 17/10/17

1000 Reputation

Ein Kommentar

Thanks for the guide. I was able to successfully replace my fan using it. I would like to point out a couple of things:

1. 10 minutes is not a realistic completion time for this guide.

2. Disconnecting the fan plug is challenging. It might have been easier with a small pair of pliers.

3. Since this guide involves dis/re-connecting the thermal interface between the processor and heat sink, you should be prepared to properly clean both surfaces and re-apply new thermal compound. There is an excellent guide on applying thermal compound here:

Wie trage ich Wärmeleitpaste am besten auf

Tristan Mackey -
