Einleitung

This guide explains how to replace your Chromebook's RAM. You will need to remove the Back Panel Assembly first. Then, you will need to remove the Battery and Speakers. Next, you will need to remove the Hard Drive. Then, you will need to remove the USB ports / SD Card Reader. After, you will need to take the Motherboard out to get to the RAM.

  1. MyLdgQf6Zn1tO2FI
    MyLdgQf6Zn1tO2FI
    dLJ25EhqNmTKN3dr
    • Remove the thirteen 6.0mm screws on the back panel using your Phillips #1 screwdriver.

  2. lR5WbnKWoRx62Quq
    lR5WbnKWoRx62Quq
    KqBStIyOZagSGgRY
    • Pry the back panel open with the plastic opening tool.

  3. bEifEDb6GbWFS6ZW

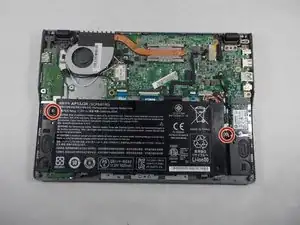

    • Remove the two 6.0mm screws securing the battery with your Phillips #1 screwdriver.

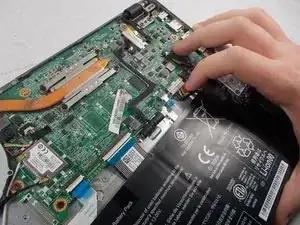

  4. SELp6IgiYH6eX1pq
    SELp6IgiYH6eX1pq
    cujNNOK6lBBkW2RD

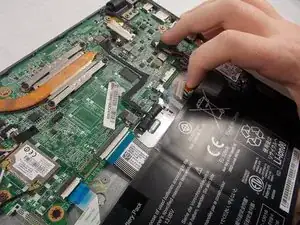

    • Carefully pull out the battery wire connected to the battery port.

  5. r6rbuF3hnZdHSXpk

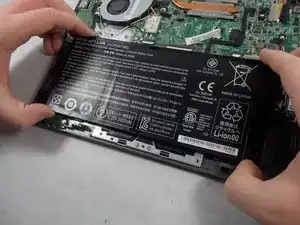

    • Slowly lift the battery to remove it from the Chromebook.

  6. lNx3rRUVPSEsdkKY
    lNx3rRUVPSEsdkKY
    rttOrfasNgVjP6sS

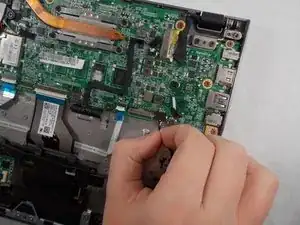

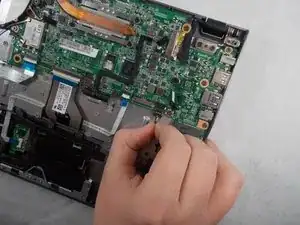

    • Unplug the speaker wire from the motherboard.

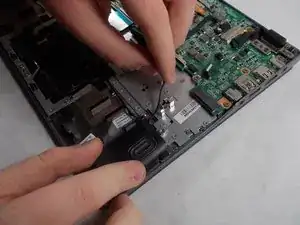

  7. 5jZuDbP5tUdv2nsW
    5jZuDbP5tUdv2nsW
    v2ZIfEKLBjfKHmbv

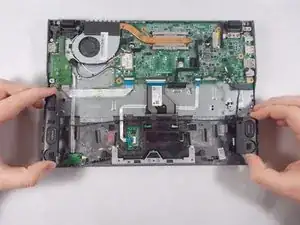

    • Carefully pull out the speakers from each side of the Chromebook.

  8. oI5KTnIQyYxyBSJs
    oI5KTnIQyYxyBSJs
    LL4OVw2ofCWnYWyS

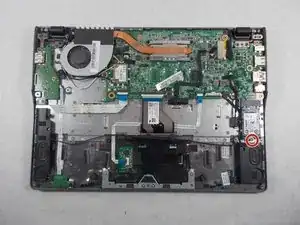

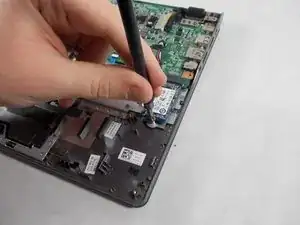

    • Remove the single 3.0mm screw securing the solid state drive using a Phillips #1 screwdriver.

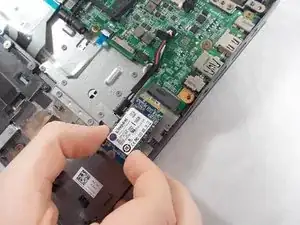

  9. pKOpUEqa4XDJfVD1
    pKOpUEqa4XDJfVD1
    3FhX1JMJOmo3jelJ

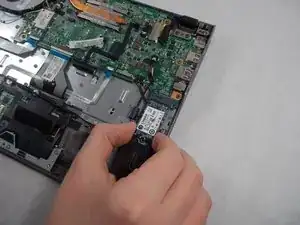

    • Carefully pull out the solid state drive using two fingers.

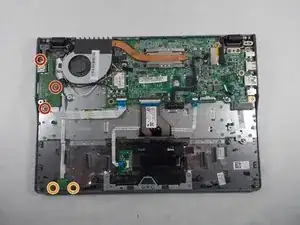

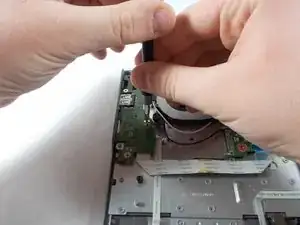

  10. vpZoErVhGaQ5jEXl
    vpZoErVhGaQ5jEXl
    aPGaLDsFZgLXEZR4
    UiL6EntAQQHSFOGS

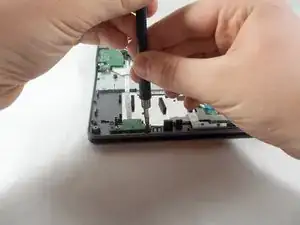

    • Remove the three 6.0mm screws using the Phillips #1 screwdriver.

    • Remove the two 3.0mm screws using the Phillips #1 screwdriver.

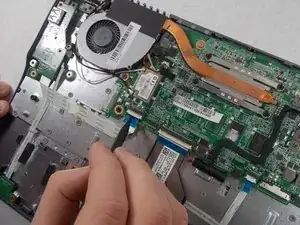

  11. kQZ4HmTfmAKRxA1u
    kQZ4HmTfmAKRxA1u
    uM4LlMLrgDgkEASB

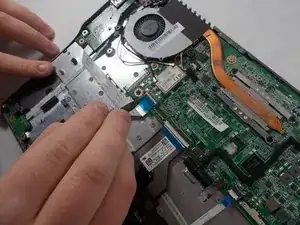

    • Position the spudger under the switch that connects the ribbon cable to the motherboard.

    • Flick the spudger up to flip the switch up.

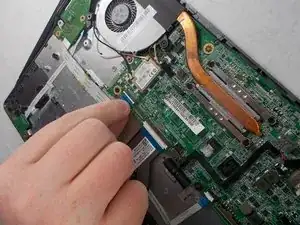

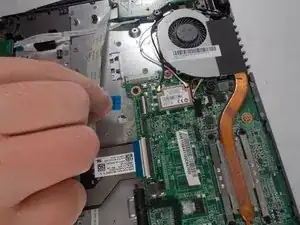

  12. VdSCC2ANMeeoOSTw
    VdSCC2ANMeeoOSTw
    NKBXXVbDmePTNQjw
    • Pull the blue tab on the ribbon cable to remove it.

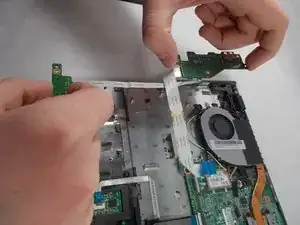

  13. QdMVNWnBofwbbygM
    QdMVNWnBofwbbygM
    mo6U4WYXTfrOCE2p

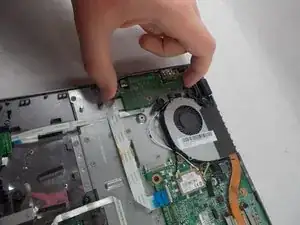

    • Grab the edges of each piece of circuitry that is included with the SD Card Reader and USB Port.

    • Pull each piece of circuitry out of the Chromebook and remove it from the device.

  14. AYqkMs2yCttwAaAY
    AYqkMs2yCttwAaAY
    JJXYBkcXbi1Tm1Rl

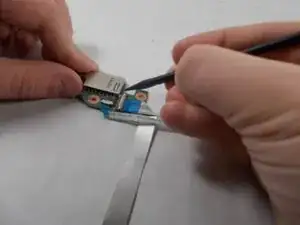

    • Position the spudger under the switch.

    • Flick the spudger up to flip the switch up.

  15. mK4FxuDCJMcAkjr6
    mK4FxuDCJMcAkjr6
    abQ1RbGtgLSAxXll

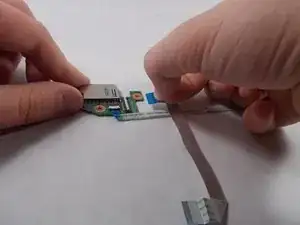

    • Pull on the blue tab of the ribbon cable to remove the ribbon cable.

    • Repeat the previous step and this step with the other ribbon cable that is attached to the SD Card Reader/USB Port.

  16. pUEdxKnAiIOY5IXM
    pUEdxKnAiIOY5IXM
    XpUyXmxtOt3VGYoO

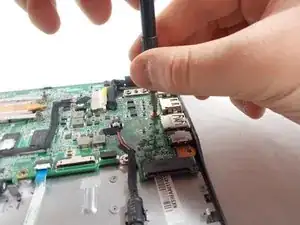

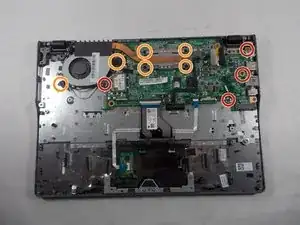

    • Using the Phillips #1 screwdriver, remove the four 3.0mm screws.

    • Loosen the six 3.0mm CPU screws using the Phillips #1 screwdriver.

    • The six 3.0mm CPU screws do not come out of the motherboard.

  17. lSJGOroYnxrwYXQo
    lSJGOroYnxrwYXQo
    RPUDvQ1uSRMMxI4G

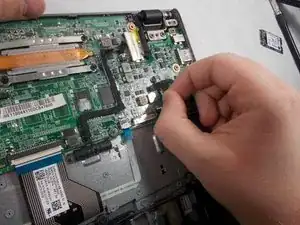

    • Grab the wire for the two pin connector.

    • Pull the wire to disconnect it from the motherboard.

  18. GSNkVAXLxZPlBciG
    GSNkVAXLxZPlBciG
    blrW1e6TiHZcNDrI

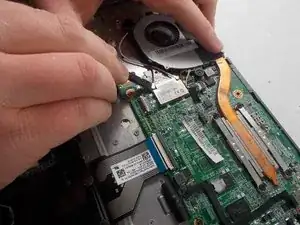

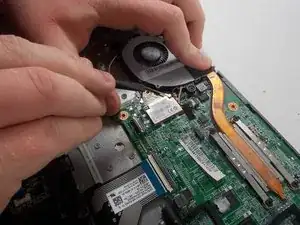

    • Place the back of the spudger under the black wire that connects the wireless card to the motherboard.

    • Flick the spudger up to disconnect the cable from the motherboard.

  19. ycyIQYJUZ1MGMpS6
    ycyIQYJUZ1MGMpS6
    2fKqoeifxGKAnwxh

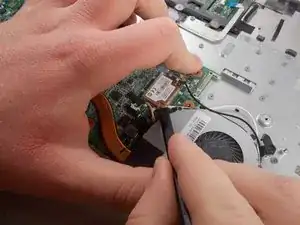

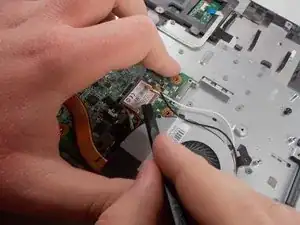

    • Place the back of the spudger under the white coaxial antenna wire that connects the wireless card to the motherboard.

    • Flick the spudger up to disconnect the cable from the motherboard.

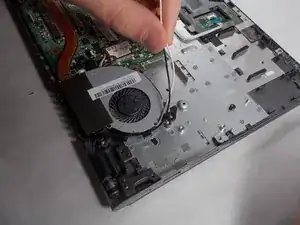

  20. eZmXVnAL4xEZYAx5
    eZmXVnAL4xEZYAx5
    cYWXpCagsXyYLbZE
    • Take both wires and unravel them from the CPU fan.

  21. CyZKDrJVf6hGG4kZ
    CyZKDrJVf6hGG4kZ
    BstOhnFn1XWEvEPC

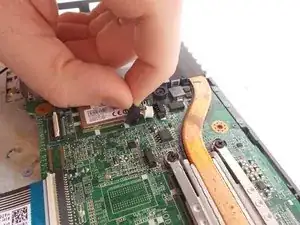

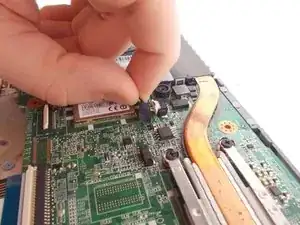

    • Firmly grasp the red, yellow, and white cords with two fingers.

    • Pull the cords to unplug it.

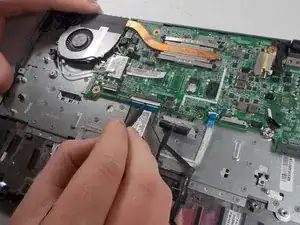

  22. FOYrLtWghUZSomos
    FOYrLtWghUZSomos
    XFQPGuIIuwev36FM
    • Position the spudger under the switch of the big ribbon cable.

    • Flick the spudger up to flip the switch up.

  23. tixSMMmjjHX1GmMQ
    tixSMMmjjHX1GmMQ
    BkRqGTFSx5NrlVYQ

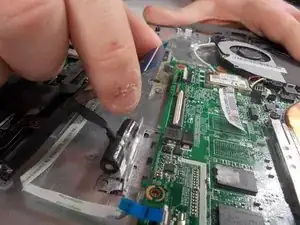

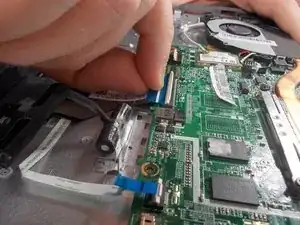

    • Grab the blue tab of the ribbon cable.

    • Pull on the blue tab to disconnect the ribbon cable.

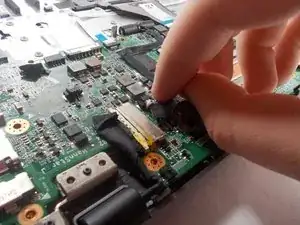

  24. ulZjCMPFcERnjXX2
    ulZjCMPFcERnjXX2
    IbNfV5LHPxblHshY
    QKCXIbDHVWxMfGM1

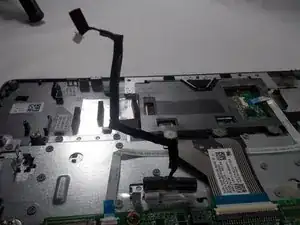

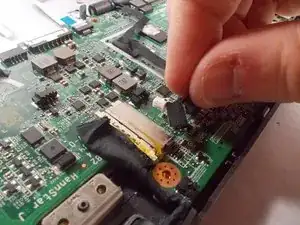

    • Grab the red and black cable near the display cables, this is the cable to the other two pin connector.

    • Pull on the wire to disconnect it from the motherboard.

    • Flip the wire and the connector up to move it out of the way.

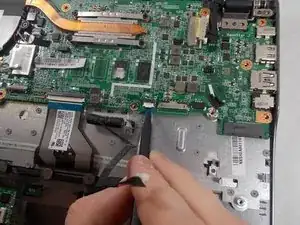

  25. ivFAjOmRNyfB6PoP
    ivFAjOmRNyfB6PoP
    C6dSUaAuBHqgoSmT

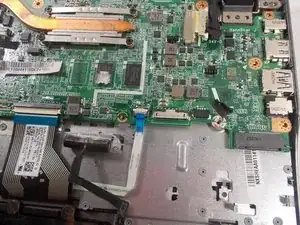

    • Position the spudger under the switch for the smaller ribbon cable.

    • Flick the spudger up to flip the smaller switch up.

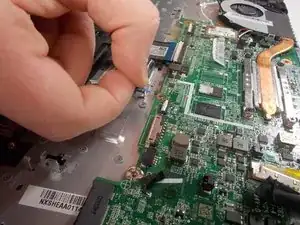

  26. Z2KDjbsPhlUDCjDE
    Z2KDjbsPhlUDCjDE
    PBY2AIiTbNsndtWJ
    • Grab the blue tab on the ribbon cable.

    • Pull on the tab to disconnect the ribbon cable from the motherboard.

  27. cYP1CnETkRhRbKdK
    cYP1CnETkRhRbKdK
    KiNnEGjBO1rhABw5

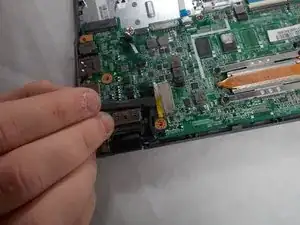

    • Position the back of the spudger at the edge of the tape that holds the display cable in.

    • Peel the tape back so it is out of the way.

  28. QsLgXAhQTMxSJc1w
    QsLgXAhQTMxSJc1w
    4WWbtF5TWN4LHvud

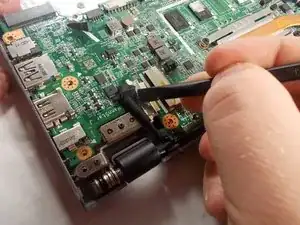

    • Position the back of the spudger on the display cable.

    • Push the display cable out using the back of the spudger.

  29. lJpdsVpPWooeNVmi
    lJpdsVpPWooeNVmi
    VSrhcDBIfpxDkKlM
    • Lift up the CPU fan to ensure that no wires are tangled. If the black and white wires are tangles please repeat step 5.

    • Lift up the other end of the motherboard to completely remove the motherboard.

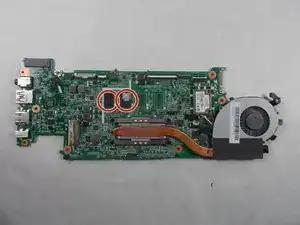

  30. HZXE5qhHxaau6uTR

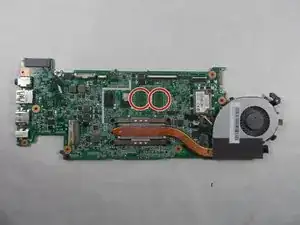

  31. lkuUbb6OxcFfbd6I
    • Put the new RAM in place of the old RAM.

    • Carefully solder the new RAM into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
