Acer Chromebook cb3-532-c47c LED Board Replacement

Geschrieben von: Jerry W
  • Kommentare: 0
Acer Chromebook cb3-532-c47c LED Board Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

The LED board has one purpose, to hold the two LEDs visible from the front of the computer. Issues with the LED board itself are extremely rare.

  1. faCUdTQTcZqJoWP6
    faCUdTQTcZqJoWP6
    tidiZdke5ue4yxTk

    • Power off the laptop before beginning the replacement.

    • Using the Phillips #1 screwdriver, remove eighteen 7 mm screws from the back panel of the device.

  2. 2eXZ1iROS6wfAhhD
    2eXZ1iROS6wfAhhD
    KD2kaxCPHKknsKBY

    • Use a plastic opening tool around the edges of the laptop and remove the back panel from the device.

  3. o3BGkLdagpKbRqSv

    • Push on the sides of the connector with a plastic spudger to separate the cable from the motherboard.

  4. XGejXSAXNg6x6VrX
    XGejXSAXNg6x6VrX
    HWqGDGudRCqUMVMv

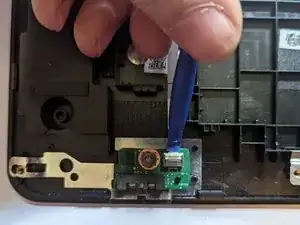

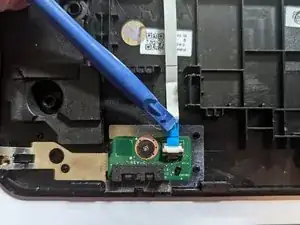

    • Flip the retaining latch up with a spudger.

  5. cAgkIFm3a46fVelS
    cAgkIFm3a46fVelS
    6fIMP36STWDRpJfm

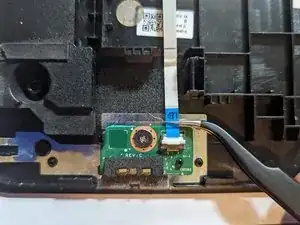

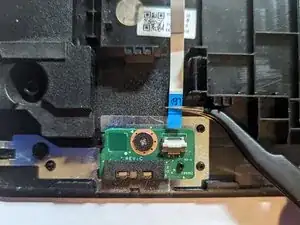

    • Pull the cable straight out away from the front of the computer.

  6. UtOPKW1CXgGGjlLt
    UtOPKW1CXgGGjlLt
    Dp4ZygQwt1bvuMhn
    JWK5FHGtwCsP2BCM

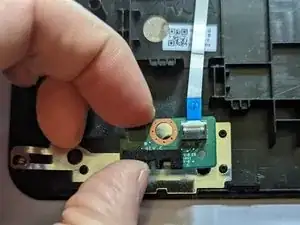

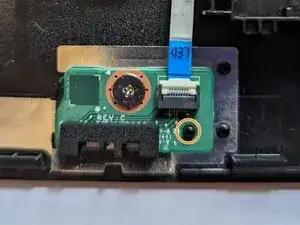

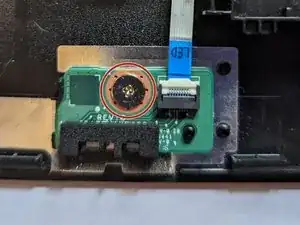

    • Remove the single retaining screw securing the LED board.

    • Remove the board.

    • When reassembling, ensure the board is seated on the guide pin before reinstalling the retaining screw.

Abschluss

To reassemble your device, follow these instructions in reverse order.
