Einleitung
-
-
Using the Phillips #1 screwdriver, remove eighteen 7 mm screws from the back panel of the device.
-
-
-
Use a plastic opening tool around the edges of the laptop and remove the back panel from the device.
-
-
-

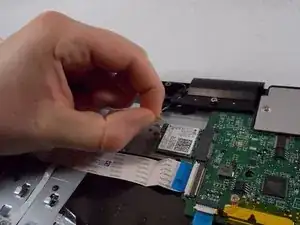

Push on the sides of the connector with a plastic spudger to separate the cable from the motherboard.
-
-
-

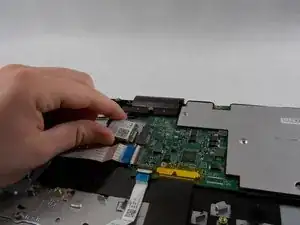

Firmly pull the end of the black wire attached to the Wi-Fi card upwards and remove it from the device.
-
Repeat with the white wire.
-
-
-

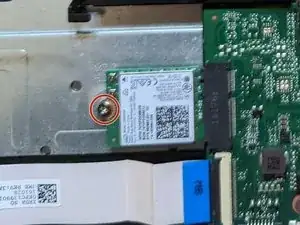

Using the Phillips #0 screwdriver, remove the single 6 mm screw securing the Wi-Fi card.
-
Pull the Wi-Fi card straight out of the motherboard and remove it from the device.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
