Afterglow Wireless PS3 Controller Battery Replacement

Geschrieben von: Aj Coello
  • Kommentare: 1
Afterglow Wireless PS3 Controller Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

3

Zeitaufwand

20 Minuten

Einleitung

Replacing the battery in a PS3 Wireless Afterglow Controller requires the removal of the back plate and then the soldering of the battery wires onto the motherboard.

  1. SsTrT1hGcGJiwjUy
    SsTrT1hGcGJiwjUy
    lQ3a3v31fniKHPcg

    • Lay the controller face down on a flat surface and remove the seven 9mm Phillips #0 screws on the back of the controller.

    • Lift up and remove the controller back plate.

    It should be noted that the screws that are just above the vibration wheels, at the thickest part of the handles, are ever so slightly longer than the clearance of the bit when it’s in the driver. This is easy to get around by just using the bit by itself.

    Daniel Anderson -

  2. nPR1eEJnkWwtsuBQ

    • Carefully remove the battery by lifting it straight up from its place.

    • Keep in mind that the red and black battery wires are attached to the motherboard. Handle these with care.

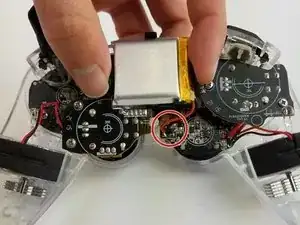

  3. fHax6PCjiJBNmYVP

    • Use the soldering tool to heat the solder connecting the battery wires to the motherboard.

    • The soldering gun will loosen the bonds of the solder allowing the wires to be detached. Use this guide for further details on how to solder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
