This guide shows the steps required to replace the vibration motors in a PS3 Wireless Afterglow Controller.
Werkzeuge
-
-
Lay the controller face down on a flat surface and remove the seven 9mm Phillips #0 screws on the back of the controller.
-

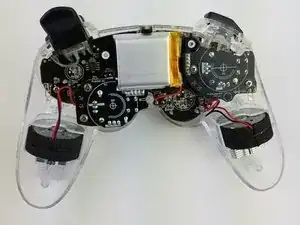

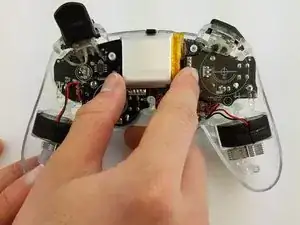

Lift up and remove the controller back plate.
-
-
-

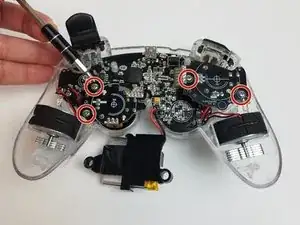

Unscrew the four 9mm Phillips #0 screws that are attached to both joy stick control mini-motherboards. There are two screws for each mini-motherboard.
-
-
-

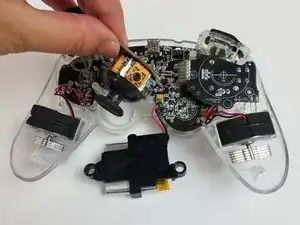

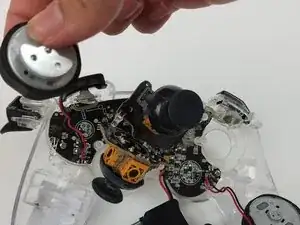

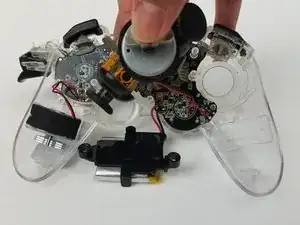

Jiggle both joy stick control mini-motherboards out of their holding place.
-

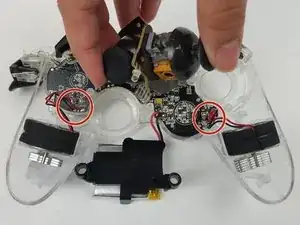

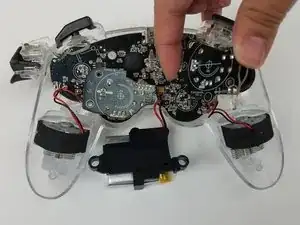

Set aside the mini-motherboards so that the vibration motor wire connections are accessible.
-
-
-
Use the soldering tool to heat the solder connecting the red and black vibration motor wires to the motherboard to detach the vibration motors.
-
Use this guide for further details on how to solder.
-
To reassemble your device, follow these instructions in reverse order.
It should be noted that the screws that are just above the vibration wheels, at the thickest part of the handles, are ever so slightly longer than the clearance of the bit when it’s in the driver. This is easy to get around by just using the bit by itself.
