Air Hog Smash Bots Radio Receiver Replacement

Geschrieben von: Brittany Frecker
  • Kommentare: 0
Air Hog Smash Bots Radio Receiver Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

This outline will guide you to replace the radio receiver, if it happens to break will in use. A soldering iron will need to be used for this, directions on how to solder can be found here.

  1. 2p3A1NlTDoa1Gd4C

    • Using the Phillips #0 screwdriver to remove the 8 mm screw.

  2. OQaEChiJL6113quY

    • Lift and slide the batter cover away from the tab holding it in place at the bottom.

  3. mqn2BGefM4ZhuHUP

    • Remove the 3 AAA batteries.

  4. kFiviJbdDHsGUEPH
    kFiviJbdDHsGUEPH
    qMIakXhlRHckhpa5

    • Using a Phillip #0 screwdriver to remove the eight 8 mm screws.

  5. s424aYMVwufaSPWx
    s424aYMVwufaSPWx
    PeXR6Fk2c5sHbIMC

    • Remove the upper armor of the Smash Bot.

  6. UKXUUfqfZtUZywk2

    • Hold the upper body and slide out the bottom half of the Smash Bot.

    • The motor extends from the lower-body into the upper-body. Be careful to not damage the motor.

  7. jrcfsutvmHdPgAKV

    • Peel back the four decal stickers that hold the front and back of the bot together.

  8. TSEW5yocTqE6EUET
    TSEW5yocTqE6EUET
    1HKq1FP5YabbSL6k

    • Use the plastic opening tool to pry the front and back of the lower body apart.

    • Carefully remove the back of the bot from the front.

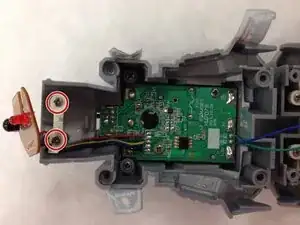

  9. HjYqxFFTLmixsG5A
    HjYqxFFTLmixsG5A
    BXVrexNLciPWacqK

    • Use the Phillips 0 screwdriver to remove two 4.75mm screws.

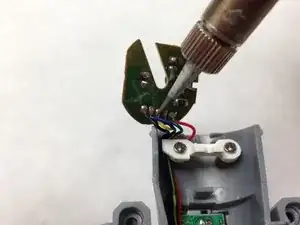

  10. 23jYwNGHQ1uND3TP
    23jYwNGHQ1uND3TP
    LUaOIEsaWk4yRPpD

    • Use the soldering workstation to remove the five wires. Directions on how to solder can be found here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
