Einleitung
Use this guide to replace the headphone jack. This guide requires soldering.
For more information on how to solder and desolder connections, please visit this guide.
-
-
Pry back cover open with a medal spudger, or your fingernail, in the divot at the bottom left corner of the phone.
-
Lift open case by the corner nearest the divot and remove it from the phone.
-
-
-
Use the Plastic Opening tools to gently dislodge the two connection on the top and bottom right of the phone from the inside of the phone.
-
-
-
Use a pair of tweezers to pull the black ribbon connector from its port.
-
Use a metal Spudger to gentle remove the speaker that glued at the bottom left of the phone.
-
-
-
Using a plastic opening tool, begin to gently pry the motherboard, away from the display assembly.
-
The motherboard will freely remove.
-
-
-

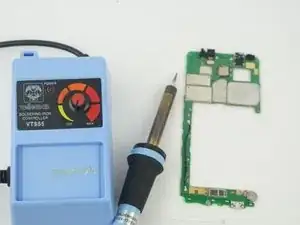

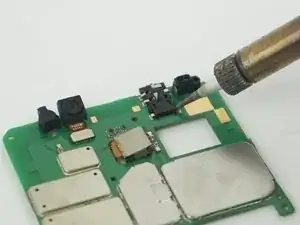

Flip the motherboard upside-down and desolder the pin connection of headphone jack to the motherboard.
-
Once pins desolder, pull the headphone jack out.
-
To reassemble your device, follow these instructions in reverse order.
