Alcatel One Touch Pop 7 Microphone Replacement

Geschrieben von: Philip Schenck

Kommentare: 0

Alcatel One Touch Pop 7 Microphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

7 - 15 Minuten

Einleitung

In the case that your Alcatel One Touch Pop 7 Tablet is not registering sound when recording, their may be a problem with the microphone. This guide will show you how to replace the microphone within this device.

Werkzeuge

Schritt 1

Begin by opening SD port cover as this is the best location to start prying.

Schritt 2

Use the plastic opening tool to pry around the edges of the back cover until it pops off.

Schritt 3

Disconnect battery by pulling up on the ZIF connector with precision tweezers for safety.

Schritt 4

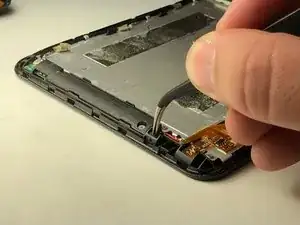

Remove the Microphone from it's slot with the precision tweezers.

Schritt 5

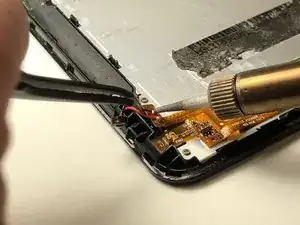

Solder the wires off of the motherboard with a soldering iron while holding the wires with the precision tweezers. For information on how to solder safely and correctly go to this link: Wie man Lötverbindungen herstellt und entlötet

Abschluss

To reassemble your device, follow these instructions in reverse order.
