Einleitung
Caution: Lead Contaminate
Please use extreme caution when handling a Soldering tool. Tool will produce extreme heats.
If your phone is not charging correctly or you notice that your charger slides in and out without staying in, you may need to replace your charging port.
For more information on soldering connections, please read the How to Solder and Desolder Connections guide.
-
-

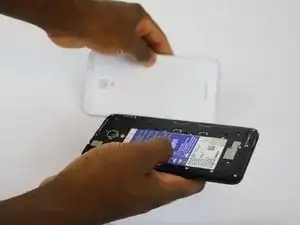

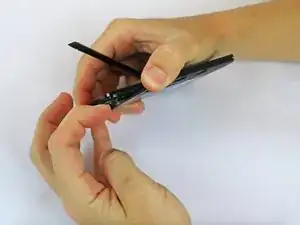

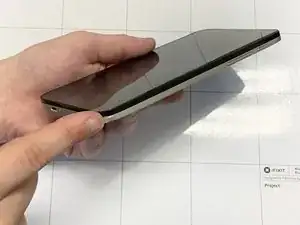

Begin by removing the back of the phone. Press your nail or a thin object in the bottom right-hand corner of the phone and gently press to release the back of the phone from the front.
-
-
-

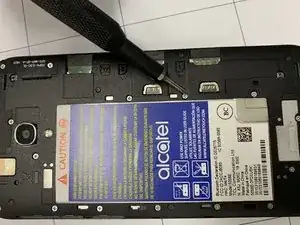

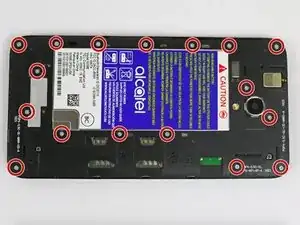

Remove seventeen 1.2 mm screws from the phone's mid-frame using the Phillips #000 screwdriver.
-
-
-

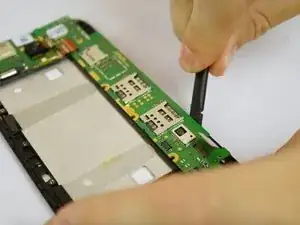

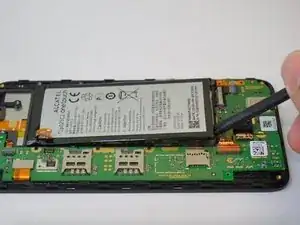

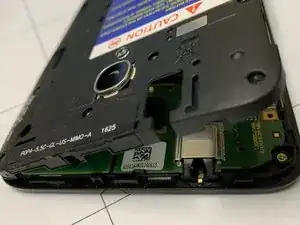

Once the screws have been taken out, remove the mid-frame protecting the phone's electronics by using a fingernail or tool to pry it off.
-
-
-

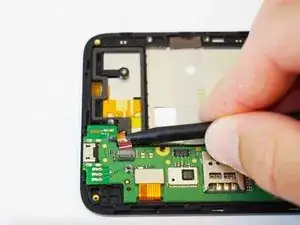

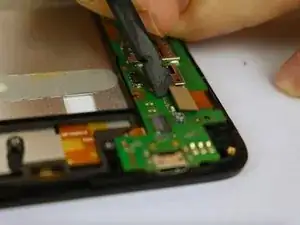

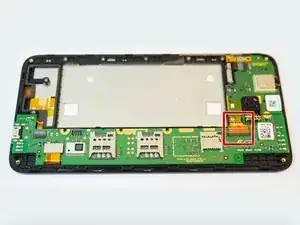

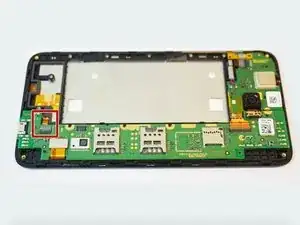

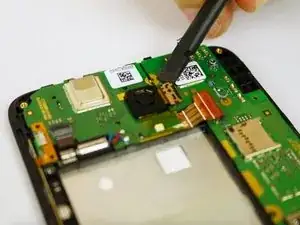

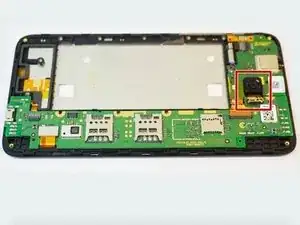

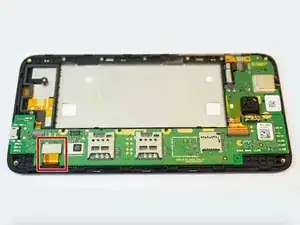

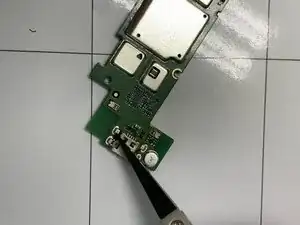

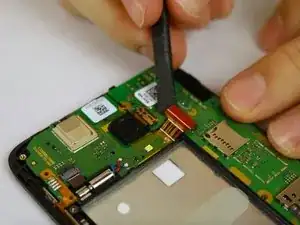

On the charging port, heat the four connection points with Soldering tool and remove from prongs.
-
To reassemble your device, follow these instructions in reverse order.
