Amazon Astro Chip ID

Veröffentlicht: 15/01/23

Teardown

Einleitung

Here's a chip identification summary for the Amazon Astro. Check out our Amazon Astro teardown for more info.

Special thanks to community member CChin for his contribution!

  1. 6QDKf4mXbvOLTlFs
    6QDKf4mXbvOLTlFs
    RrtgqEsgbWW3DdXa

    • Chip ID, part 1:

    • MediaTek MT8512BAAV applications processor w/ AZ1 neural edge

    • Samsung K4F8E164HA-MGCL 1 GB LPDDR4 SDRAM memory

    • Samsung KLM4G1FETE-B041 4 GB eMMC NAND flash memory

    • Qualcomm SDA660-201-AA octa-core applications processor

    • SK hynix H9HCNNNCPMMLHR-NME 4 GB LPDDR4X SDRAM memory

    • Kioxia THGBMJG7C1LBAIL 16 GB eMMC NAND flash memory

    • Analog Devices MAX9296A dual GMSL2 deserializer

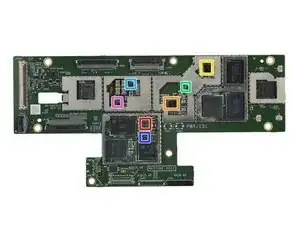

  2. XnJcIIs1cOOybonR

    • Chip ID, part 2:

    • MediaTek MT6398AN power management

    • Qualcomm PM660-002 power management

    • Qualcomm PM660L-004-01 power management

    • Qualcomm PM3003A power management

    • Monolithic Power Systems MP8756 6 A synchronous step-down converter

    • Richtek RT5797ALGQW 3 A synchronous step-down converter

    • Texas Instruments DC-DC converter (likely)

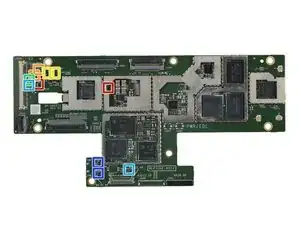

  3. tIZjWVMKCplIgSCx

    • Chip ID, part 3:

    • Silergy SY6287C power distribution switch

    • Texas Instruments INA219A 12-bit current/voltage/power monitor

    • Nexperia 74HC4051 8-ch analog multiplexer/demultiplexer

    • Nexperia 74AUP1G02 single 2-input NOR gate

    • Nexperia 74LVC1G08 single 2-input AND gate

    • onsemi ESD8704MUTAG 4-ch. ESD protection diode array

  4. JOem2NudZ1Bwy4UQ

    • Chip ID, part 4 - connectivity:

    • MediaTek MT7668ASN dual band 2x2 MU-MIMO WiFi 802.11ac & Bluetooth 5.0

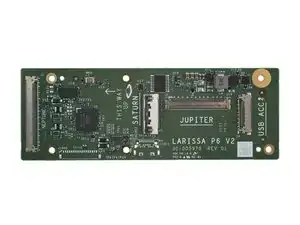

  5. NuqcoKCEbMvYW2fF
    NuqcoKCEbMvYW2fF
    JY4woWBseWchLseg

    • Chip ID, part 1:

    • Intel vision processor (likely)

    • Knowles MEMS Microphone

    • Texas Instruments TPS24750 12 A eFuse w/ current monitor

    • Monolithic Power Systems MP8756 6 A synchronous step-down converter

    • Monolithic Power Systems MP2151GTF 1 A / adj. synchronous step-down converter

    • Texas Instruments DC-DC converter

    • Renesas mixed signal array

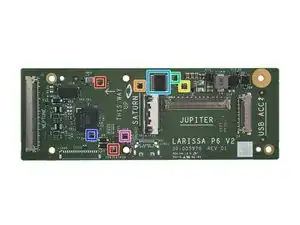

  6. ZkkKISCVD2B1IXUR

    • Chip ID, part 2:

    • Texas Instruments LP5907UVE-1.8 250 mA / 1.8 V LDO regulator

    • Texas Instruments TPS2553 adjustable USB power distribution switch

    • Texas Instruments TCA9406 2-bit bidirectional voltage-level translator

    • Texas Instruments LMV331 single low voltage comparator

    • NXP Semiconductor NVT2008 8-bit bidirectional voltage level translator

    • Texas Instruments SN74LVC1G66 single SPST analog switch

    • onsemi NC7SZ11 single 3-input AND gate

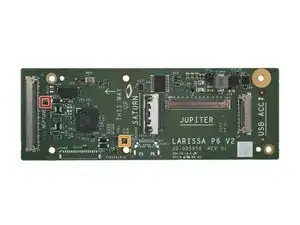

  7. 3Vjr1thhcyTBqtTk

    • Chip ID, part 3:

    • Nexperia 74LVC1G08 single 2-input AND gate

    • Nexperia 74AUP1G02 single 2-input NOR gate

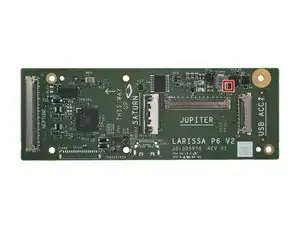

  8. eXE6VnkGNNirmW5i

    • Chip ID, part 4 - sensors:

    • Texas Instruments TMP103G temperature sensor

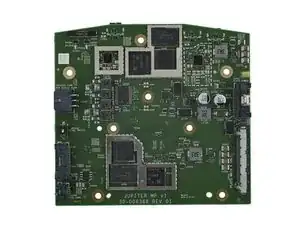

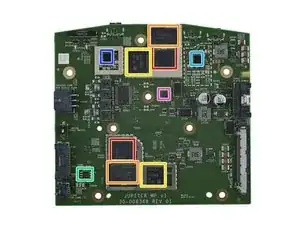

  9. mfnj2bKBdoEUVOuS
    mfnj2bKBdoEUVOuS
    xVFHqhKERDQPgjrt

    • Chip ID, part 1:

    • Qualcomm QCS605-001-AC 64-bit octa-core applications processor

    • SK hynix H9HCNNNBKMMLHR-NME 2 GB LPDDR4X SDRAM memory

    • Samsung KLMAG1JETD-B041 16 GB eMMC NAND flash memory

    • STMicroelectronics STM32G031J6 32-bit ARM Cortex-M0+ microcontroller

    • Qualcomm PM670-001 power management

    • Qualcomm PM670L-000-01 power management

    • Texas Instruments TLV320DAC3203 stereo audio CODEC

  10. bhYhrXg2gnBWBvMb

    • Chip ID, part 2:

    • Texas Instruments TPA3118D2 stereo 30 W class-D audio amplifier

    • Monolithic Power Systems MP8756 6 A synchronous step-down converter

    • Silergy DC-DC converter (likely)

    • Vishay SiP32419 load switch

    • Silergy load switch (likely)

    • Texas Instruments INA219A 12-bit current/voltage/power monitor

    • Texas Instruments LP5912-3.3 500 mA / 3.3 V LDO regulator

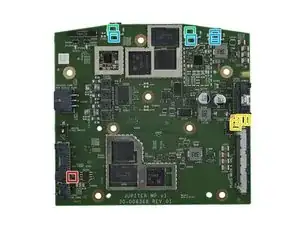

  11. lLVrNrqxyXqRnyQ1

    • Chip ID, part 3:

    • Texas Instruments TXS0102 2-bit bidirectional voltage-level translator

    • onsemi NL17SZ00 single 2-input NAND gate

    • Nexperia 74AUP1G02 single 2-input NOR gate

    • onsemi ESD7104MUTAG 4-ch. ESD protection diode array

    • onsemi ESD8704MUTAG 4-ch. ESD protection diode array

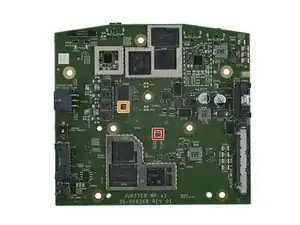

  12. 1DHN5Eq1iPR3ROmd

    • Chip ID, part 4 - sensors:

    • Texas Instruments TMP103C temperature sensor

    • Texas Instruments TMP103D temperature sensor

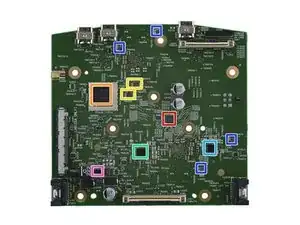

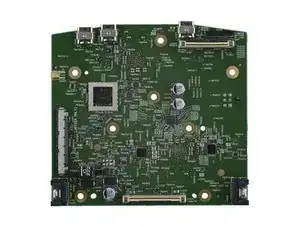

  13. CQXktNKtcM3atrTT
    CQXktNKtcM3atrTT
    oZLvl5XhNKhdgGis

    • Chip ID, part 1:

    • Altek AL6100-32M2 3D depth sensing processor

    • Texas Instruments TUSB8042 4-port USB 3.1 hub controller

    • Texas Instruments TS3USB30E USB 2.0 SPDT analog switch

    • Qualcomm PM670-001 power management

    • Qualcomm PM670L-000-01 power management

    • Qualcomm PM3003A power management

    • Monolithic Power Systems MP3428A 19 A synchronous boost converter

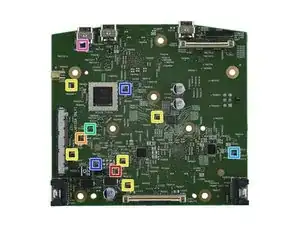

  14. phNS5LB3rlX2rQcq

    • Chip ID, part 2:

    • Silergy SY6287C power distribution switch

    • Monolithic Power Systems MP5016HGQH current limit switch

    • Texas Instruments INA219A 12-bit current/voltage/power monitor

    • Texas Instruments LP5912-3.3 500 mA / 3.3 V LDO regulator

    • Texas Instruments TCA9406 2-bit bidirectional voltage level translator

    • Diodes Incorporated 74LVC1G08 single 2-input AND gate

    • onsemi ESD7104MUTAG 4-ch. ESD protection diode array

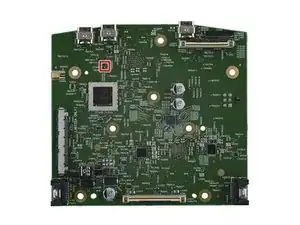

  15. xaHKnJe2otsYPPLg

    • Chip ID, part 3 - sensors:

    • Texas Instruments TMP103F temperature sensor

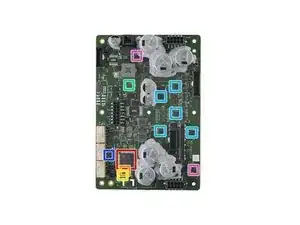

  16. k2xB3VustMSgJstI

    • Chip ID, part 1:

    • STMicroelectronics STM32L4P5VE 32-bit ARM Cortex-M4 microcontroller

    • SiTime MEMS Oscillator

    • Texas Instruments TPS3700 voltage detector

    • Renesas ISL9241H Li-ion buck boost battery charger

    • Texas Instruments DRV8323S 3-phase gate driver (for motor driving)

    • Texas Instruments TLA2024 12-bit analog-to-digital converter

    • Renesas mixed signal array

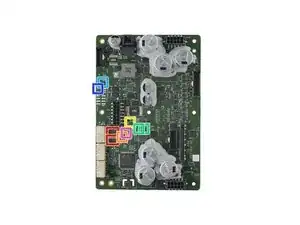

  17. VXZTqohXTIXcnI1X

    • Chip ID, part 2:

    • Texas Instruments TPS24750 12 A eFuse w/ current monitor

    • Texas Instruments TPS60400 60 mA charge pump voltage inverter

    • Monolithic Power Systems MP8756 6 A synchronous step-down converter

    • Texas Instruments LM5166 500 mA synchronous buck converter

    • Silergy DC-DC converter

    • Vishay SiP32430 load switch

    • Silergy load switch (likely)

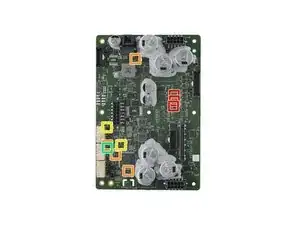

  18. VwqOOqlN1H2Bx1js

    • Chip ID, part 3:

    • Nexperia 74HC4051 8-ch analog multiplexer/demultiplexer

    • Nexperia 74AUP1G08 single 2-input AND gate

    • Nexperia 74AUP1G38 single 2-input NAND gate

    • Nexperia 74AUP1G02 single 2-input NOR gate

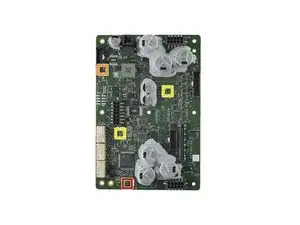

  19. jTGoVEOKepOEcKWl

    • Chip ID, part 4 - sensors:

    • Invensense ICM-20689 6-axis MEMS accelerometer & gyroscope

    • Texas Instruments TMP1075 temperature sensor

    • Texas Instruments TMP103x temperature sensor (likely)

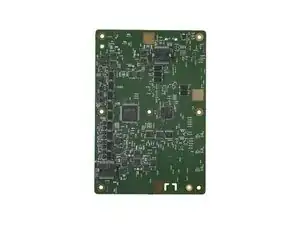

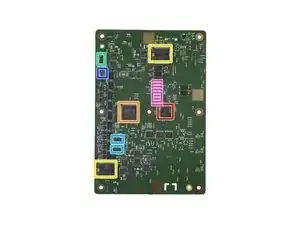

  20. X2XF1MiRncQjZNMj
    X2XF1MiRncQjZNMj
    GJiWT22yKKBUQvVb

    • Chip ID, part 1:

    • STMicroelectronics STM32F765IG 32-bit ARM Cortex-M7 microcontroller

    • STMicroelectronics STM32F446VC 32-bit ARM Cortex-M4 microcontroller

    • STMicroelectronics L6234D three phase motor driver

    • Texas Instruments TPS24750 12 A eFuse w/ current monitor

    • Texas Instruments TPS24751 12 A eFuse w/ current monitor

    • Texas Instruments TLV7031 single comparator

    • Texas Instruments TLV7041 single comparator

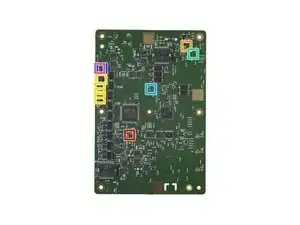

  21. MCT2MHMLPM6AupyD

    • Chip ID, part 2:

    • Texas Instruments INA231 16-bit current/voltage/power monitor

    • Silergy load switch (likely)

    • Nexperia 74HC4051 SP8T analog switch

    • Nexperia 74HC4053 triple SPDT analog switch

    • Nexperia 74AUP1G11 single 3-input AND gate

    • Nexperia 74AUP1G08 single 2-input AND gate

    • Nexperia 74LVC2G02 dual 2-input NOR gate

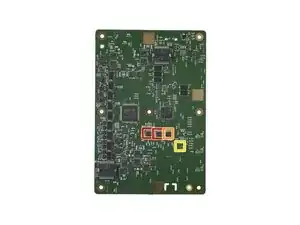

  22. qCZAMdlWIkbn6iO6

    • Chip ID, part 3:

    • Texas Instruments TXS0108E 8-bit bidirectional voltage-level shifter

    • NXP Semiconductor NVT2008 8-bit bidirectional voltage level translator

    • Texas Instruments TCA9406 2-bit bidirectional voltage-level translator (possibly ?)

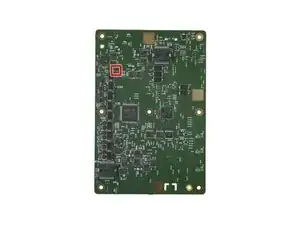

  23. CSEXSCVtKLCsBmtJ

    • Chip ID, part 4 - sensors:

    • Texas Instruments TMP103x temperature sensor (likely)
