Amazon Fire 5th Generation Rear Camera Replacement

Geschrieben von: Maximilian Plavcan
  • Kommentare: 7
Amazon Fire 5th Generation Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

5 Minuten

Einleitung

Use this guide to replace the rear-facing camera of the Amazon Fire 5th Generation.

  1. UARiCtkcZdyrM4GO
    UARiCtkcZdyrM4GO
    thKIHiluJZQ3gDeO

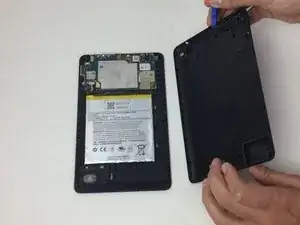

    • Ensure that your device is turned off.

    • Remove any micro-SD card that may be installed in the Fire. Failure to do so could damage the micro-SD card itself or the micro-SD card reader on the Fire.

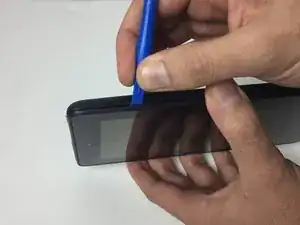

    • While holding the device firmly, wedge the iFixit Opening Tool into the crease along the outer edge of the device (as shown in the image).

    • Slowly, grind the iFixit Opening Tool into the crease along the outer edges of the device until the entire back cover loosens.

    • Then, remove the back cover from the device.

  2. ahQyPl2cSF2XM15r
    ahQyPl2cSF2XM15r
    xWaNhJ4cJenFiAiK

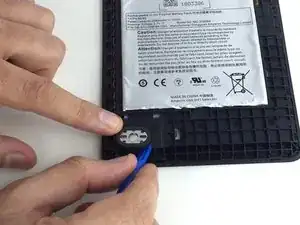

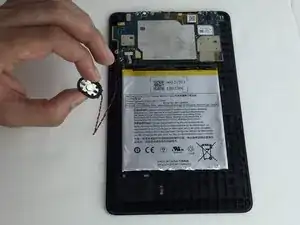

    • Pry the speaker from the case using the iFixit Opening Tool.

    • Lift the speaker up from the device to remove the speaker wires from their groove in the case.

    • Be careful not to pull the speaker wires from the motherboard.

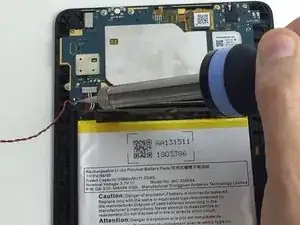

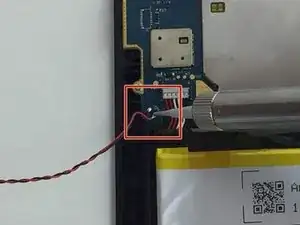

  3. 5DmMW2JNR6IhrUZb
    5DmMW2JNR6IhrUZb
    XamONYvjIljSUwPB
    MKLGCLLNCGPSxXK5

    This step is completely unnecessary. The cords don't get in the way of the rest of the procedure. Feel free to disregard this step.

    Jacob Dayley -

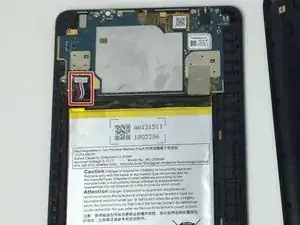

  4. vJpVJVjMLNDEoycQ
    vJpVJVjMLNDEoycQ
    DCXOydZ2tIfPrt3M
    nBSDYGLplwK4uP6q

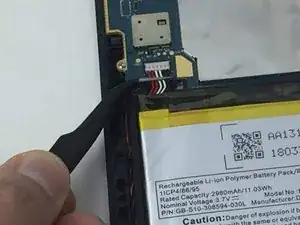

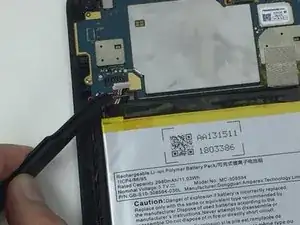

    • The battery connector is located in the upper left corner of the Amazon Fire battery pack.

    • To disconnect the battery connector, use angled ESD precision tweezers to lift the cables up and out of their socket.

    • Make sure you pull the battery connector cables themselves out and not the actual socket. Doing this step incorrectly could result in breaking the connector entirely.

  5. CqV2pmnROXCL4CMC
    CqV2pmnROXCL4CMC
    2XT4DmjTGhbXvJCg

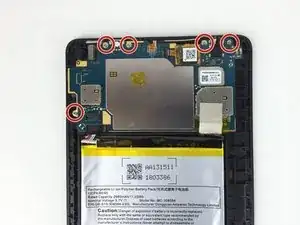

    • Use a PH0 size Phillips screwdriver head to unscrew the five 2 mm screws on the motherboard. These screws are circled with red in the given image.

    • Ensure that you keep track of these screws once removed.

    I found that PH00 worked better, but overall very good guide.

    Gabriel Hassebrock -

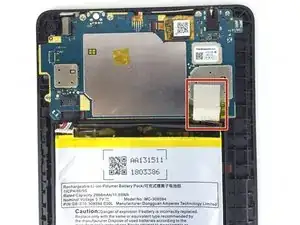

  6. F1XijIZTlUTTuRjR
    F1XijIZTlUTTuRjR
    UoYiBK2r3PQa6AqY
    3tWr3Zg2TTf1eXkW

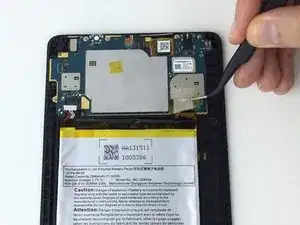

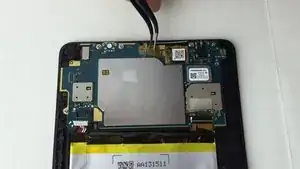

    • The LCD- Motherboard connector cable has a protective overlay that you must peel back with precision tweezers in order to expose the actual connector.

    • Gently pull down on the connector cable using precision tweezers in order to disconnect the cable.

    Broke it at this part

    N EO -

    Pull black tab at connector upwards first, then flex cable can be pulled easily.

    Anthony Bacenet -

    YES. This detail right here NEEDS to be put in the main section. I did not see these comments until after finishing the job. I went to youtube to watch other videos to find out about the release action.

    Ian -

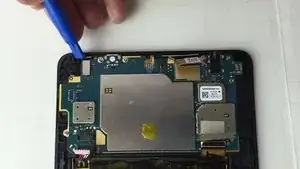

  7. The LCD Digitizer on the Amazon Fire tablet has a locking cable connector that holds it in place on the motherboard.

    • The LCD Digitizer on the Amazon Fire tablet has a locking cable connector that holds it in place on the motherboard.

    • To remove the cable, use the iFixit Opening Tool to unlock the LCD Digitizer cable connector.

    • Once the wire connector is removed, use the iFixit Opening Tool to pry the entire LCD Digitizer away from the motherboard.

    • Remove any tape that may be covering the connector.

  8. The volume and power buttons must both be repositioned in order to remove the motherboard.

    • The volume and power buttons must both be repositioned in order to remove the motherboard.

    • To reposition the power and volume buttons, use the iFixit Opening Tool to pull the plastic casing upwards. Then, remove the casing completely.

    • Make sure that both the volume and the power buttons are free from the plastic casing before separating the motherboard from its case.

    • Be very careful when repositioning the volume buttons, since the fragile digitizer ribbon cable runs from the motherboard to the digitizer right next to the volume buttons. It is very easy to damage the ribbon cable while working in this area.

  9. osNS3hcCk21C6SNJ
    osNS3hcCk21C6SNJ
    pPFHLqhEmyNRRW6q
    aYhHMQ24dpWFZChK

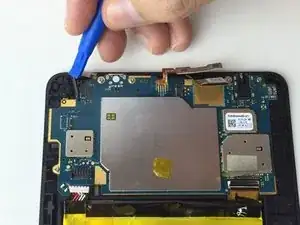

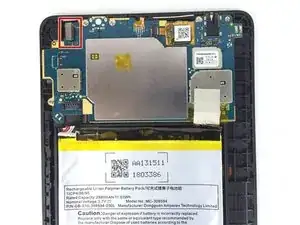

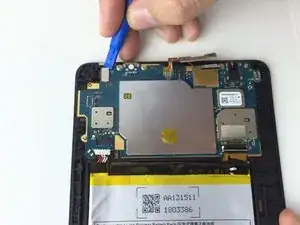

    • The rear facing camera wire connector must be disconnected in order to remove the motherboard.

    • To remove the rear facing wire connector, insert the iFixit Opening Tool beneath the connector and wedge it upwards.

  10. VXiZUQsqH4uouGy6
    VXiZUQsqH4uouGy6
    EsolJNIWni4ifuAW

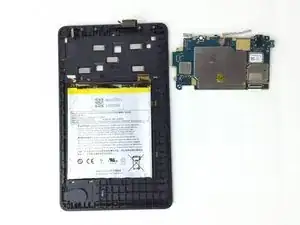

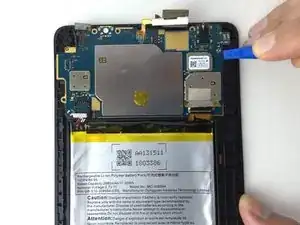

    • Position the iFixit Opening Tool beneath the motherboard and pull upwards to remove the motherboard from its case.

    • Please handle the motherboard with gloves because skin oils can damage the connections on the board.

    Thanks for the information, very useful. Does anyone know how the power button works? wiring? I am thinking of replacing it with a small push button. Mine broke. Thanks in advance, Jorge

    Jorge Daetz -

  11. YXVNC1PgAEPwD5Fd
    YXVNC1PgAEPwD5Fd
    WJBr4U1idKMdTrhO

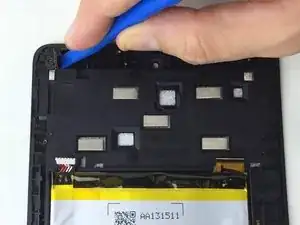

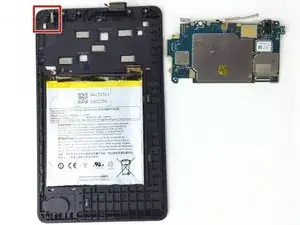

    • The rear facing camera is directly attached with adhesive to the device case.

    • In order to remove the camera, use a plastic opening tool to wedge underneath and lift it out of its place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
