Amazon Fire 5th Generation Screen and LCD Replacement

Geschrieben von: Amber Bunch

Kommentare: 55

Amazon Fire 5th Generation Screen and LCD Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

2 Stunden

Einleitung

Quite often the screen is the first thing to break on a tablet and the LCD panel is actually what senses the touch of the user as well as displays the images of the screen.

In order to perform this replacement you will need to use heat tools such as either the iOpener or a high heat gun so be aware of how to properly use these tools as well as proper safety gear to prevent injury or damage to the device.

Werkzeuge

Schritt 1

Ensure that your device is turned off.
Remove any micro-SD card that may be installed in the Fire. Failure to do so could damage the micro-SD card itself or the micro-SD card reader on the Fire.
While holding the device firmly, wedge the iFixit Opening Tool into the crease along the outer edge of the device (as shown in the image).
Slowly, grind the iFixit Opening Tool into the crease along the outer edges of the device until the entire back cover loosens.
Then, remove the back cover from the device.

Schritt 2

Pry the speaker from the case using the iFixit Opening Tool.
Lift the speaker up from the device to remove the speaker wires from their groove in the case.
Be careful not to pull the speaker wires from the motherboard.

Schritt 3

Desolder the speaker wires from the motherboard.
iFixit has a helpful guide explaining how to solder and desolder here: Wie man Lötverbindungen herstellt und entlötet

This step is completely unnecessary. The cords don't get in the way of the rest of the procedure. Feel free to disregard this step.

Jacob Dayley - 10/01/17

Schritt 4

The battery connector is located in the upper left corner of the Amazon Fire battery pack.
To disconnect the battery connector, use angled ESD precision tweezers to lift the cables up and out of their socket.
Make sure you pull the battery connector cables themselves out and not the actual socket. Doing this step incorrectly could result in breaking the connector entirely.

Schritt 5

Use a PH0 size Phillips screwdriver head to unscrew the five 2 mm screws on the motherboard. These screws are circled with red in the given image.
Ensure that you keep track of these screws once removed.

I found that PH00 worked better, but overall very good guide.

Gabriel Hassebrock - 08/01/19

Schritt 6

The LCD- Motherboard connector cable has a protective overlay that you must peel back with precision tweezers in order to expose the actual connector.
Gently pull down on the connector cable using precision tweezers in order to disconnect the cable.

Broke it at this part

N EO - 09/10/19

Pull black tab at connector upwards first, then flex cable can be pulled easily.

Anthony Bacenet - 19/03/20

YES. This detail right here NEEDS to be put in the main section. I did not see these comments until after finishing the job. I went to youtube to watch other videos to find out about the release action.

Ian - 27/08/20

Schritt 7

The LCD Digitizer on the Amazon Fire tablet has a locking cable connector that holds it in place on the motherboard.

The LCD Digitizer on the Amazon Fire tablet has a locking cable connector that holds it in place on the motherboard.
To remove the cable, use the iFixit Opening Tool to unlock the LCD Digitizer cable connector.
Once the wire connector is removed, use the iFixit Opening Tool to pry the entire LCD Digitizer away from the motherboard.
Remove any tape that may be covering the connector.

Schritt 8

The volume and power buttons must both be repositioned in order to remove the motherboard.

The volume and power buttons must both be repositioned in order to remove the motherboard.
To reposition the power and volume buttons, use the iFixit Opening Tool to pull the plastic casing upwards. Then, remove the casing completely.
Make sure that both the volume and the power buttons are free from the plastic casing before separating the motherboard from its case.
Be very careful when repositioning the volume buttons, since the fragile digitizer ribbon cable runs from the motherboard to the digitizer right next to the volume buttons. It is very easy to damage the ribbon cable while working in this area.

Schritt 9

The rear facing camera wire connector must be disconnected in order to remove the motherboard.
To remove the rear facing wire connector, insert the iFixit Opening Tool beneath the connector and wedge it upwards.

Schritt 10

Position the iFixit Opening Tool beneath the motherboard and pull upwards to remove the motherboard from its case.
Please handle the motherboard with gloves because skin oils can damage the connections on the board.

Thanks for the information, very useful. Does anyone know how the power button works? wiring? I am thinking of replacing it with a small push button. Mine broke. Thanks in advance, Jorge

Jorge Daetz - 10/01/19

Schritt 11

Because heat is required to remove the screen and LCD, it is advisable to remove the battery entirely as well.
It is important to be very careful and use little force in this step. Too much force can damage the battery. A damaged battery can lead to an electrical fire or explosion of the battery.

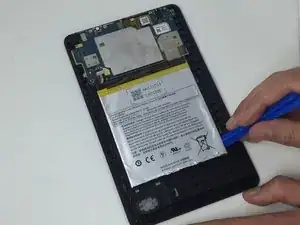

Carefully and slowly work the iFixit Opening Tool down the edge of the battery pack. Angle the tool to pry it up.
When you have successfully lifted the battery pack up on one side or corner, carefully wedge the iFixit Opening Tool under the pack about 1/2" and work around the rest of the sides.
Be careful not to bend the battery pack.

I am not understanding why the battery needs to be removed if you are only replacing the glass. I’m sure there is a good reason. Could you explain?

Marchair McNeil -

The LCD and digitizer are adhered to the plastic frame of the tablet. Heat is what is needed to soften the adhesive, via an iOpener, heat gun, hair dryer, or hot plate LCD remover. However, heat can cause batteries to be damaged or catch fire. So it is advisable to remove the battery first.

blackbear847 -

When I did this repair, I was able to get the battery out, but the corners were quite bent. So I used a glue stick like a rolling pin and carefully rolled the bend out of the battery.

blackbear847 -

Schritt 12

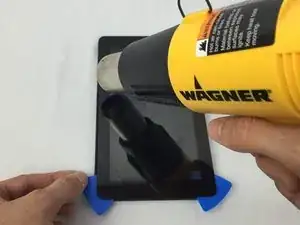

Use a heating tool such as an iOpener or Heat gun around the edges of the Amazon Fire's glass screen. The iOpener may take longer to use. However, a heat gun can warp the plastic if used incorrectly.
As you heat the edges, use a separator tool such as a guitar pick to lift the glass panel up and hold it up as you work around the device.
Do not use a separation tool on the top edge of the device where the front camera would be; the digitizer cable is located in this location and can easily be severed. Instead, work in a U shape until you have 3 sides lifted from the frame
Be patient with this step because it can be very time consuming and remember to use proper safety gear when using a heating device.

!#^&@@ off, You motherlovers failed to mention the ribbon cable on the left side connected to the LCD. I worked the 3 sides exactly like the directions and avoiding the top edge. But my LCD ribbon cable to Digitizer was ruined as I folded the 3 removed edges to the top…..Straight Bull…Directions should have stated that…You should have mentioned to only remove bottom and right side(being careful to avoid ribbon cable to the leftside while removing the screen) instead of working in a U. That's false info…Somebody owes me an LCD.

Don Moon -

Schritt 13

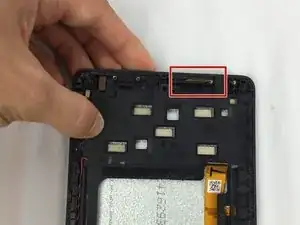

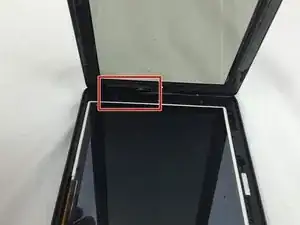

Note the digitizer cable coming through to the back as it may be hard to see! Carefully thread this piece through its slot and separate the glass panel from the device frame.
If you are simply trying to replace a broken screen, you may stop here in this guide and reverse the steps to reassemble your Amazon Fire.
Try to preserve as much of the double-sided foam adhesive as possible, since you will need it to reinstall the replacement screen.

What about the 2 magnets in the plastic frame they came out when pulling out digitizer not sure if they have a specific way of going back in. Help plz

David Miller - 27/08/17

Schritt 14

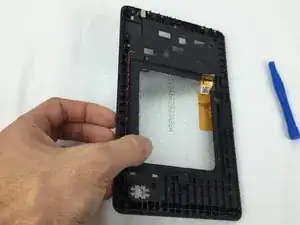

To remove the LCD panel, flip the device over and detach the LCD digitizer cable from the frame if they have become stuck together.

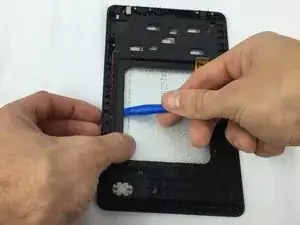

You can use the iFixit Opening Tool to separate the LCD panel from the adhesive and it should come out of place with ease.

Abschluss

To reassemble your device, follow these instructions in reverse order.
