Einleitung

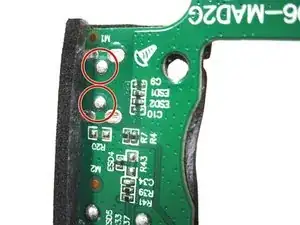

This is a step by step guide on how to replace the charging port in the Anker SoundCore 2 bluetooth speaker. There are a few reasons on why you may need to replace the charging port, including if your speaker will no longer charge or no longer achieve a full charge. Take a look at the troubleshooting page to see if you need to replace the charging port or not. For this guide, you will need a screwdriver and a soldering tool.
Werkzeuge
-
-
Insert a spudger between the front panel and the body of the speaker.
-
Pry around the edges of the front panel with the spudger to pry it away from the speaker body.
-
-
-

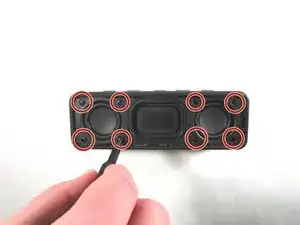

Remove eight 10 mm screws from the speaker mount using a Phillips #0 screwdriver.
-
Insert a spudger in the gap between the speaker mount and speaker body to remove the speaker mount.
-

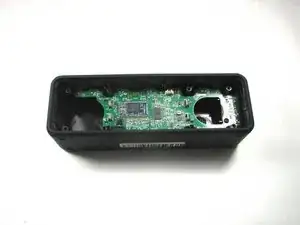

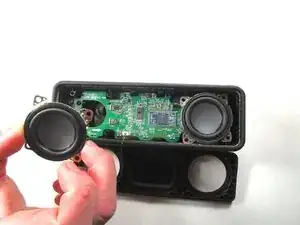

Use your hand to remove the speakers.
-
-
-

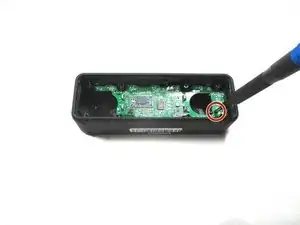

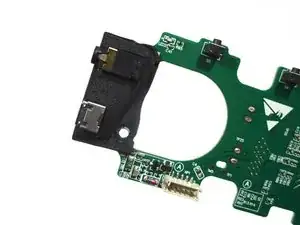

Remove the 10 mm screw that is holding the motherboard in place using a Phillips #0 screwdriver.
-

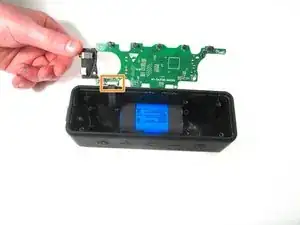

Flip up the motherboard and disconnect the cord that connects the motherboard and the battery.
-
To reassemble your device, follow these instructions in reverse order.
