Apalus Digital Hair Straightening Brush Heating Element Replacement

Geschrieben von: Aaron Brysch

Kommentare: 0

Apalus Digital Hair Straightening Brush Heating Element Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

Use this guide if you need to replace the heating element of your Apalus Digital Hair Straightening Brush. If your brush is not heating up, this guide will walk you through how to take apart the brush in order to replace the heating element. Soldering is involved, so if you don't know how to solder take a look at this Wie man Lötverbindungen herstellt und entlötet guide.

Werkzeuge

Schritt 1

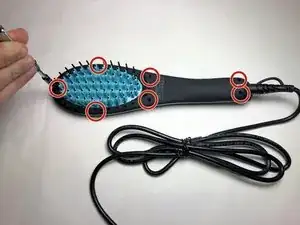

Remove the seven 5mm Phillips #1 screws on the comb-side of the brush.

Schritt 2

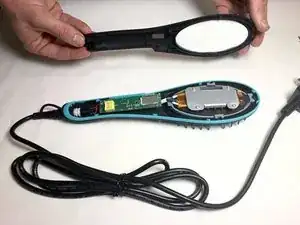

Turn comb over so the bristles are facing down.
Remove backside of the comb and place aside.

Schritt 3

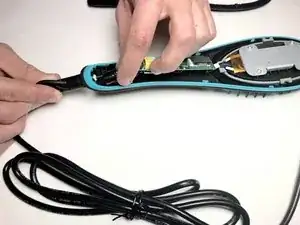

Unplug the power cord from the connector inside of the brush.

Schritt 4

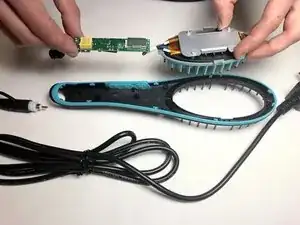

Remove the circuit board and heating element from the handle.
This will provide easy access to the necessary components.

Schritt 5

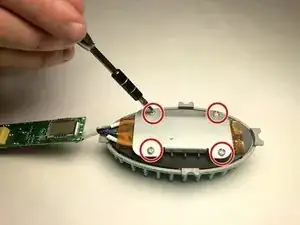

Remove the four 6mm Phillips #2 screws holding the heat shield onto the back side of the bristles.

Schritt 6

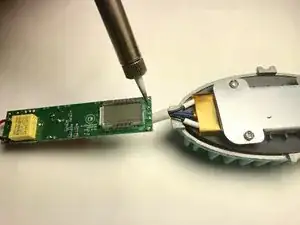

There are 4 solder points of the heating element located on the LCD side of the circuit board.
Desolder these four connections using a soldering iron.
Note which wires go to each of the connection points.
