The aquarium water heating element heats the water of the aquarium and allows the aquarium to achieve and maintain the user’s desired temperature. If said heating element were to fail, the resulting failure would cause the temperature of the aquarium to change, resulting in negative consequences that would require replacement of said component.

  1. c3lo6dDyQimiHBeR
    c3lo6dDyQimiHBeR
    iFoJpWlHqZWwqc23
    • Unplug the device from the outlet and let the heater cool down for 5-10 minutes.

    • Remove the heater from the aquarium.

    • The glass of this aquarium heater will not crack for this model. Some other heater models may crack.

    • Using a toothbrush and running water, thoroughly scrub the aquarium heater to remove any dirt and grime.

    • Dry the heater with a paper towel.

  2. N6aQdnQ3VKSpUGSe
    N6aQdnQ3VKSpUGSe
    JR5cEKFjIVJUDoHO
    ZNlcuZyRfxDZZIL3

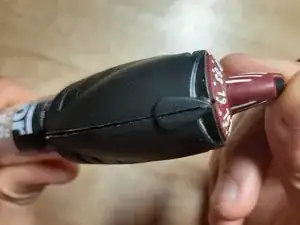

    • Move the thermostat switch to the end or to the farthest point it can go.

    • The direction you turn it, does not matter.

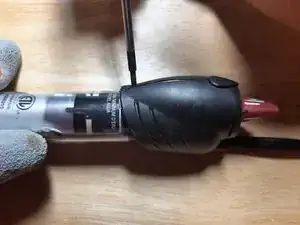

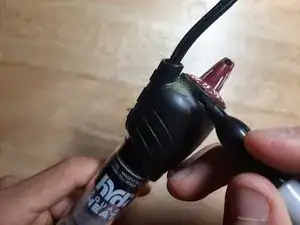

    • Using a visible colored Sharpie (depending on the color of your device), mark a line as a reference point. As this will not wipe off easily, you will be able to realign any deviations if necessary.

  3. MIhYBdHYJw2buLAk
    MIhYBdHYJw2buLAk
    SNdNRxEyfSQ6CHro
    WGffBVLrk3HMeNSh
    • Be sure you are wearing gloves.

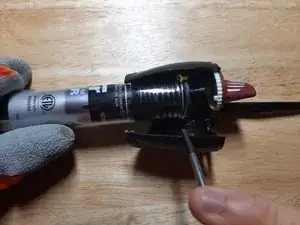

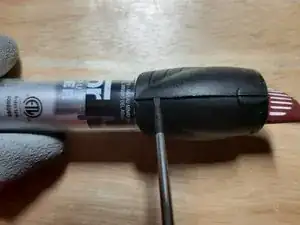

    • A nylon spudger or opening tool is recommended for this step, even though a screwdriver is shown in the photo.

    • Starting near the bottom , slide the opening tool in between the plastic halves of the heater's dial.

    • Once the tool is in between the two plastic halves, slowly slide the tool up until either the halves separate or you hit a plastic depression clamp.

    • If you have hit the depression clamp, slightly bend the half to see if you can detach the clamp. If you cannot, slightly pull out the opening tool just enough to slide it above the depression clamp while prying the plastic halves apart.

    • Push downward and at a slight angle to detach the depression clamp and the plastic cover.

  4. LTaY6nvVpXFBm5JJ
    LTaY6nvVpXFBm5JJ
    obWZ15gXd6F4D1YG
    StqIrZ2lFLuPARdS
    • This is one of the slowest steps in the process. Take caution since the glass can crack or shatter if done too aggressively.

    • Step requires gloves.

    • With two spudgers or opening tools, one small and the other large, carefully and slowly place the smaller one between the rubber stopper and the glass tube. Next, slowly apply pressure with a prying action to free the rubber stopper. Repeat around the stopper to eventually detach it.

    • Once a small portion is lifted continue the prying step, with the larger opener.

    • Stop when about 60%-75% of the rubber stopper is sticking out.

  5. PllFi315Rwn64vD5
    PllFi315Rwn64vD5
    WnjXTUkajpnpNlQu

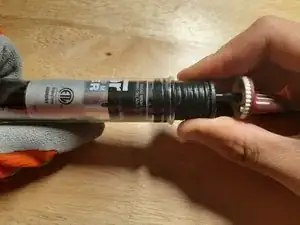

    • Without twisting or turning, slowly apply a pulling force to separate the glass tube from the core components of the water heater.

    • Pulling too fast and too hard can damage the components of the heating element.

  6. mdnIWRSCaE2ZIFM1
    mdnIWRSCaE2ZIFM1
    SIuOEXnvJ5s2fjAb
    hNDYlkrNAVc5LLba
    • Locate the foam insert and carefully separate it from the heating pad.

    • Remove the foam insert.

  7. X4juZIwExmZN4YDc
    X4juZIwExmZN4YDc
    WtENSUWZsp6LAO4J
    bJnWB1QDLPklwTSP

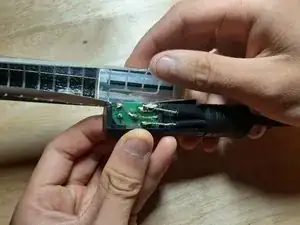

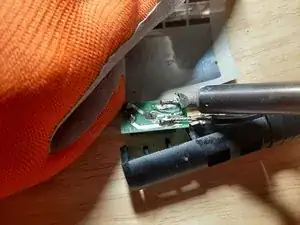

    • Desolder the two power connections by referring to the attached photo.

    • Ensure you are wearing gloves and eye protection while in a well ventilated area. Fumes may be harmful if accidentally inhaled. If you are unfamiliar with soldering refer to this guide.

  8. 6mi2lvdK6itVsk6R
    6mi2lvdK6itVsk6R
    bZxDxUkjHmB2bumV
    aFeBs3VTF4Ou34DS

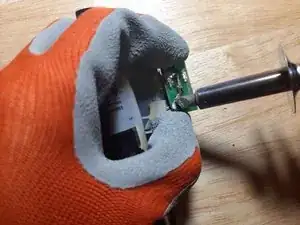

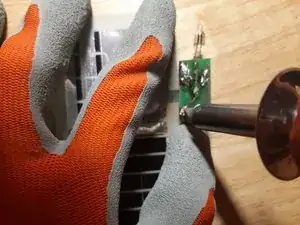

    • Bend the heating pad back while applying light pressure to the chip to assist separating the two components.

    • There is a high risk of burning your fingers, so make sure to use proper hand and eye protection such as gloves and goggles.

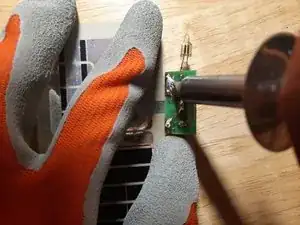

    • Start heating the top pin until it is liquefied and detachable. Remove the pin and set it aside. Repeat this process for the second pin.

  9. GCIgrIrYeBBy1DT3
    GCIgrIrYeBBy1DT3
    LVsNnKM5sbwroRhY
    NwQevHmADuhs5duc
    • Remove any old solder by melting and slightly scraping it off.

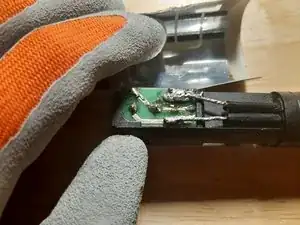

    • Insert the new heating element pin into the circuit board hole. Then push and flatten the heating pad.

    • Next, heat the pin to melt new solder to fuse the pin and the board together. Repeat this step for the other side.

    • Once finished, slide the circuit board chip back into the plastic housing of the heater.

  10. IjhMmwOHeKp1lXAc
    IjhMmwOHeKp1lXAc
    OFtmJcEhUZAntUFv
    41ESBGvSTH6ekVdd
    • Hold the heating pad down to position the chip inside the housing. You may need to press the wires down to close the casing. Repeat this process again for the other cable.

  11. hZHNAtnqNTLBEKAv
    hZHNAtnqNTLBEKAv
    l1IS4dIbsYwnWgmH
    uHi5aH5VhvSVPR5o
    • Re-insert the foam insert back into the heating pad.

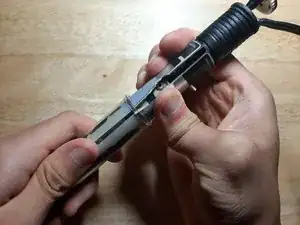

    • Compress the heating core enough to fit back into the glass tube. Stop inserting once you hit the rubber stopper.

    • The fit should be tight.

    • Once you get to the chip, make sure there is enough clearance to avoid damaging it.

  12. xJIZMFbqb1ci3MZU
    xJIZMFbqb1ci3MZU
    X4YblHE6A1wJe2BP
    EYKkv11ox3eRGJ6S

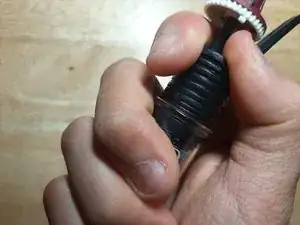

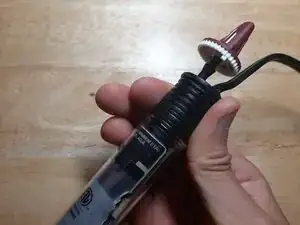

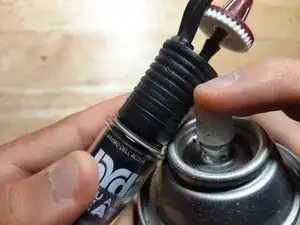

    • To easily reinsert the rubber stopper, it is recommended to use a form of grease.

    • Apply pressure until the rubber stopper is fully depressed.

  13. 1L2EcNQ3gRJMsHyc
    1L2EcNQ3gRJMsHyc
    BYhLHYqCZ4sRGRYU
    NriYT5YKLLqmHoDR

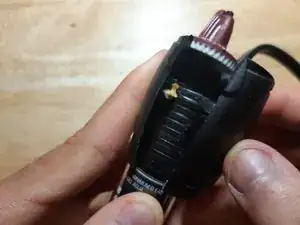

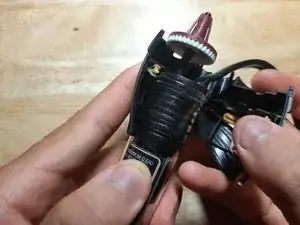

    • Reattach the plastic housing, making sure that the previously marked heating switch is properly aligned.

Abschluss

To reassemble your device, follow these instructions in reverse order.
