Einleitung

  1. GqoBFkJxTkmknrYh
    GqoBFkJxTkmknrYh
    kbHxeXGoYnvEMTFo
    • To access the speakers you need to disassemble the earpiece. First remove the foam ear piece by simply pinching the padding and pulling lightly until the magnets disengage.

  2. crN3igg3rbbqubbR
    crN3igg3rbbqubbR
    sqnh1PbgxSJZIYTR
    6exjMWFVVrwG2ile
    • Remove the dust cover located on the speaker. Use the corner of the spudger to peel underneath the cover until you can lift it by hand. The cover is held onto the device with adhesive and should be removed slowly.

  3. rHOarRI2uPBmTnYM
    rHOarRI2uPBmTnYM
    1RNE1YWhZWZh61Gq
    • Take off the front cover by removing the four screws located in a square formation on the surface of the device. Use the J00 Philips driver listed in the device page.

  4. SGqeUrGpQnyRrswh
    SGqeUrGpQnyRrswh
    R35nXRkX66WNQGg5
    • Locate the three small screws under the speaker. Use the J00 Philips Driver to remove them.

    where can i buy this speaker ?

    Yuri Cross1993 -

  5. foXYFsK44usytXkU
    • If your issue is asking for the complete replacement of the speaker or the motherboard, un-solder the old components and replace with new speaker by re-soldering.

    • Check out this useful guide on how to solder and desolder connections if soldering is new to you.

  6. l5FT4iyR5sTN1ERB

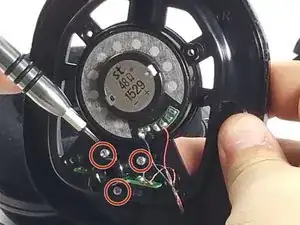

    • Remove the three screws in the photo with the J00 driver bit, and pull the headphone jack away from the assembly.

  7. ZXlluckqf5NCsYiO

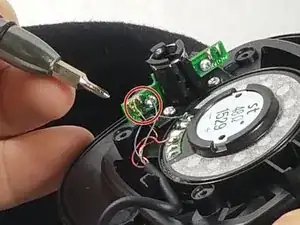

    • Un-solder the two wires circled, at this point the entire assembly can be removed from the speaker and the remainder of the device.

    Where can i buy a replacement port/board?

    EasyAsABC123 -

    Where can a replacement jack purchased

    SKIDMARX UK -

  8. aDU4j5o5REnLpfTA
    aDU4j5o5REnLpfTA
    qmSTyS1rPS6KECCM

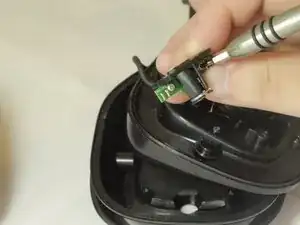

    • Pull the motherboard off of the jack and replace it with a new one by re-soldering the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
