Astro A50 2016 Headset Motherboard Replacement

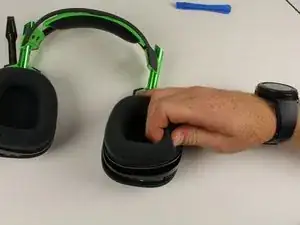

Remove the magnetic ear pads by gently pulling up away from the head set.

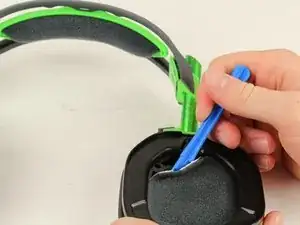

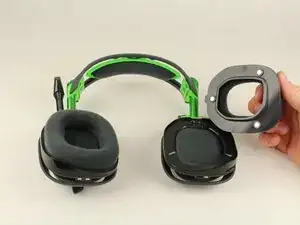

Squeeze the plastic opening tool between the black plastic and foam pad on non mic side and then pry upwards to remove the felt pads covering the speaker.

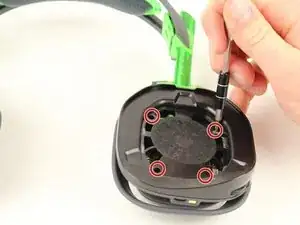

Remove the four 6mm Phillips 1 screws.

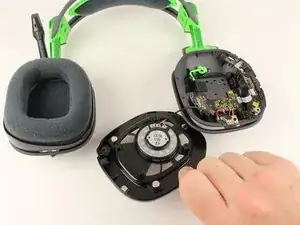

Lift the speaker module up off the device.

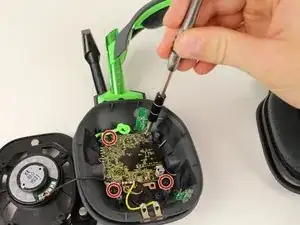

Remove the four 6mm Phillips 1 screws.

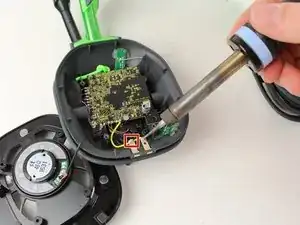

Use a soldering iron to desolder the black and yellow wires from the two metal plates near the bottom of the device.

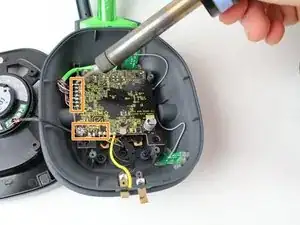

Use a soldering iron to desolder the 13 wires in rows along the left and bottom sides of the headset motherboard.

Wie man Lötverbindungen herstellt und entlötet

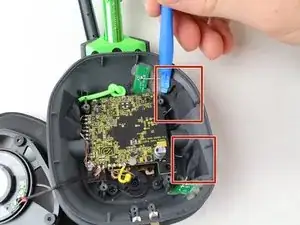

Use the plastic opening tool to pry off the black tape covering the gray wires

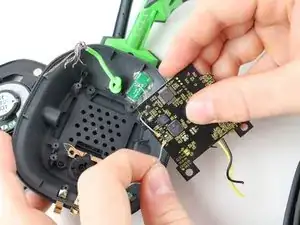

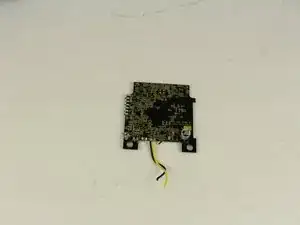

Lift the motherboard out of the headset and gently disconnect the gray wires from the motherboard.
