Astro A50 Wireless Akku austauschen

Geschrieben von: Nicholas Eriksen
  • Kommentare: 39
Astro A50 Wireless Akku austauschen

Schwierigkeitsgrad

Schwierig

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

Diese Anleitung zeigt, wie man den Akku in dem A50 2014 Headset austauschen kann. Weil der A50-Akku ein Lithium-Ionen-Akku ist, wird er nach ein paar Jahren Nutzung letztendlich an Leistung verlieren. Aber das ist kein Grund, sich Sorgen zu machen. Ein Ersatz-Akku kostet rund 20 € und mit einem Lötkolben und einem Schraubendreher kannst du ihn einfach selbst auszutauschen.

  1. VnELQARCvEgXHnWt
    VnELQARCvEgXHnWt
    EGXrjP2mpQbFVWAT
    Wy1kxZsuTBvZOnCw

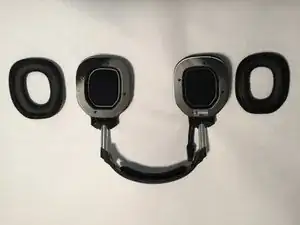

    • Zu Beginn, entferne die Ohrpolster von den Kopfhörern, indem du die Polster sanft vom Gehäuse ziehst.

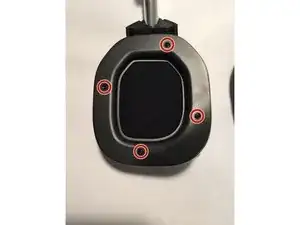

    • Benutze einen kleinen Phillips Schraubendreher, um die 4 Schrauben zu lösen.

    microphone side

    Marco Lopes -

    Don't know what Marco is talking about mine was NOT the microphone side. Look at the pics…..

    Michael Hale -

    Gen 1 Astros have the battery under the mic side, no need to touch the other earpiece. Also the ear cushions can be a bugger to get back on, I suggest leaving them on/around the plastic piece and just move them aside to remove/replace the screws.

    Jody Richardson -

  2. UmqHZD2WjlmSroAQ
    UmqHZD2WjlmSroAQ
    saqwwEykWrXsJ3VV
    hQLsPCApUvETTmVX

    • Sei besonders vorsichtig, wenn du Bauteile entfernst, die angeklebt sind. Sie können leicht reißen.

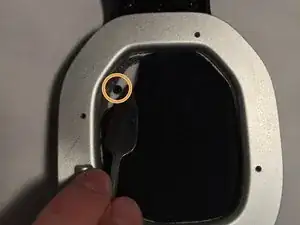

    • Nachdem du die schwarzen Kunststoffabdeckungen beiseite gelegt hast, benutze wieder den Schraubendreher, um die beiden Schrauben zu lösen.

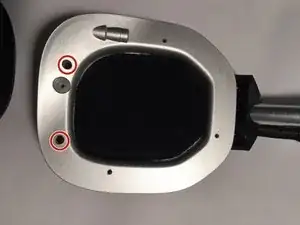

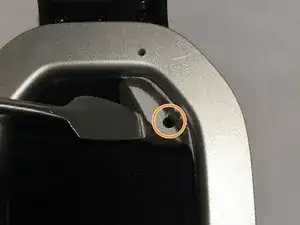

    • Finde die inneren Schaumstoff-Abdeckungen und löse diese jeweils an den oberen beiden Ecken, um die darunter liegenden Schrauben freizulegen.

  3. pgfWdEhRe5XmpKqV
    pgfWdEhRe5XmpKqV
    BQbZHtWvAetfrXgo

    • Lege den Lautsprecher vorsichtig zur Seite, um an die inneren Bauteile des Kopfhörers zu kommen. Seid dabei vorsichtig, um die schwarzen Kabel nicht zu beschädigen.

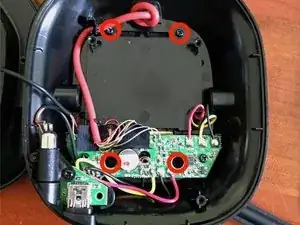

    • Löse die 4 rot markierten Schrauben, um die Blende außen am Kopfhörer zu lösen.

  4. rClHu6xXlRpe3bLN
    rClHu6xXlRpe3bLN
    O4YoGUvF3AuYuYNJ

    • Drehe das Ohrteil auf die andere Seite und lege den Akku frei, indem du das Mikrofon und die Blende vom Batteriegehäuse entfernst.

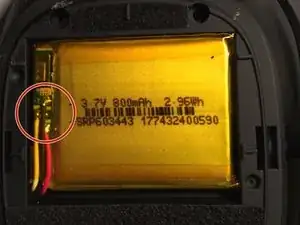

    • Benutze den Lötkolben, um die 3 farbigen Drähte vom alten Akku zu lösen. Notiere dir die Farben/Positionen für den Einsatz des neuen Akkus.

    • Entferne vorsichtig den alten Akku, indem du ein Plastik Opening Tool oder einen Spudger unter den Akku führst, um den Klebstoff zu lösen.

    • Verbiege oder durchsteche den Akku nicht.

    My new battery has wires, then I have desoldered on the other side.

    Marco Lopes -

    Yeah, all batteries generally come with the wires but would be way more difficult to solder this side than on the board, the other side where you soldered is the same I did as well as others, those who soldered from the battery side are either wicked solders or brave as !&&* haha!

    STEP 3, PIC 2: This is the area on the far right side of where to work from for others coming to this guide! :)

    Lee Whittaker -

    I’ll echo other commenters here, it was easier to solder the connections on the ‘board’ side rather than soldering them here on the battery side. Board is featured in Step 3 Photos 1,2

    DRedBeard -

    • Für den Zusammbau: folge den Schritten 1-4 in umgekehrter Reihenfolge:

    • Stelle sicher, dass die Drähte richtig verlötet sind, mit jeder Farbe an der dazugehörigen Position.

    • Benutze so wenig Klebstoff wie möglich, um den Schaumstoff am Lautsprecher anzubringen, und vermeide so eine Schweinerei.

    le casque A50 Xbox one gris vert na pas les acces au vis comme dans ce tuto. donc pour le moment je ne peu pas l’ouvrir

    Banzai -

Abschluss

Teste den Akku, um sicherzustellen, dass der Austausch erfolgreich war.
