Astro Mixamp USB Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

Use when the USB port needs to be removed. (Soldering Required)

  1. hhJPyTh3wpuvswvB
    hhJPyTh3wpuvswvB
    rqHyZhrKgIba41yp

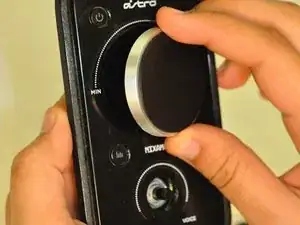

    • Grip the dial tightly and pull straight off the device.

    • Repeat for the second dial

  2. RkOZPNpqJvyPxFTW
    RkOZPNpqJvyPxFTW
    HHUAQDVJDKU6YP2G

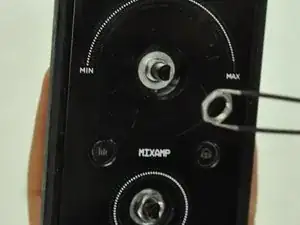

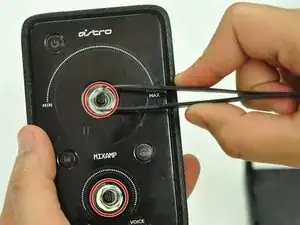

    • Using tweezers, remove the spacer nuts and washers from each dial post.

  3. Ba1AyCDwVheHgbIB
    Ba1AyCDwVheHgbIB
    LjhIEtPXRUpHSCQZ

    • Before opening your device, ensure the device is not on or connected to the charging cable.

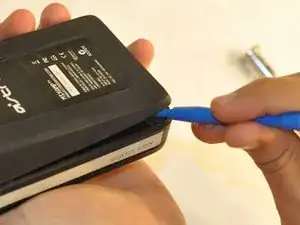

    • Insert a plastic opening tool into the seam between the rubber foot and plastic casing.

    • Pull the rubber foot free of the plastic casing.

  4. eW2HtSN2Og2R2Q3k

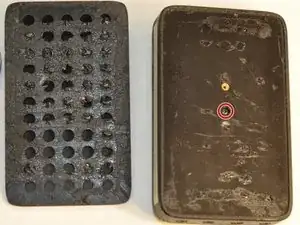

    • Use a screwdriver to remove the screw from the rear casing.

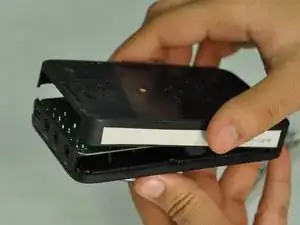

  5. dek1mxJoCQSHAZ2R

    • Gently lift the rear casing from the device.

  6. DIepP6OM2LSEOrTf
    DIepP6OM2LSEOrTf
    cTAtkrlwdxN3knyc
    VZUpTpWhQLFYSLwE

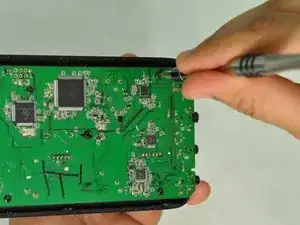

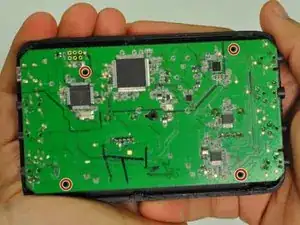

    • Remove the four screws that hold the motherboard in place.

    • Only touch the edges of the motherboard. Touching the surface can damage the motherboard.

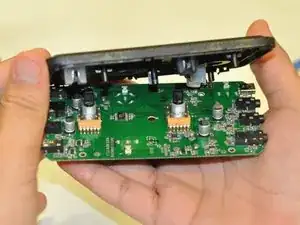

  7. NegPDhsRr4itGFNb

    • Gently pull the motherboard from the front cover.

  8. MCW2nXgLMFvVErbC
    MCW2nXgLMFvVErbC
    ucsy1hDVMvVsNEbp
    A3BQ4eK6FMPHQAuC

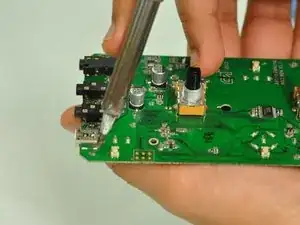

    • Press the tip of a hot soldering iron to the USB connection to melt the solder.

    • Use a nylon spudger to lift the USB from the solder.

    • Repeat for each of the four USB connections.

    • For more help on soldering, refer to this guide: Wie man Lötverbindungen herstellt und entlötet

Abschluss

To reassemble your device, follow these instructions in reverse order.
