Asus A53S Fan Assembly Replacement

Geschrieben von: Ethan Martins

Kommentare: 1

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 - 40 Minuten

Einleitung

In this guide, the steps on how to remove the ASUS A53S fan and replace the fan will be thoroughly outlined, with pictures associated with each step being provided. The fan of the computer is an incredibly important component, as the main function of the component is to keep other components such as the CPU, cool. If any problems are encountered with the fan, detrimental problems to your pc can be caused, such as components overheating. To get started on how to solve the problem, click on the troubleshooting link here: Asus A53S Fan Assembly Replacement

Werkzeuge

Schritt 1

Power off your device and remove the battery before beginning this guide.
Flip the laptop so the underside is facing up.
Using a Phillips #01 screwdriver, unscrew the two 6 mm screws.

Schritt 2

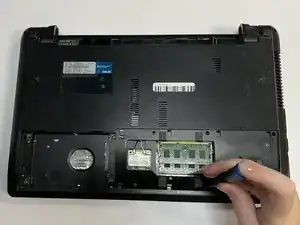

Place a spudger under the white wire and pull it up gently, disconnecting it from the Wi-Fi card.
Use the same method on the black wire.

Schritt 3

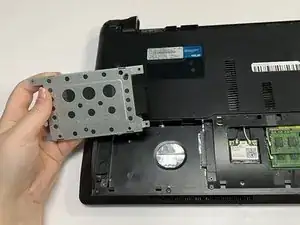

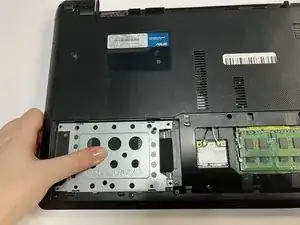

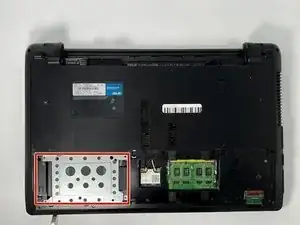

Push the hard drive to the left and remove it.

Schritt 4

Using a Phillips #01 screwdriver, unscrew the fifteen 6 mm screws.

there are 2 more screws that need to be removed:

one short screw is in the hard drive cavity,

the other is to the right of the memory sticks, almost dead center of the four bottom right screws

AsusFred -

Schritt 5

Flip over the laptop and open it.

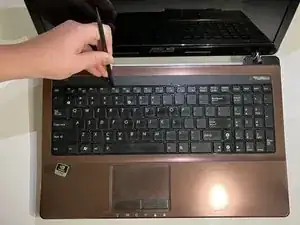

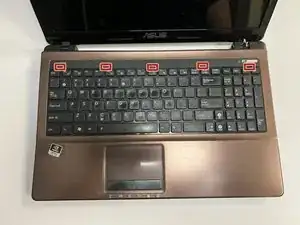

Using the spudger, insert the flat end into the notches at the top of the keyboard and slowly "pop" the keyboard up and out of the device.

Schritt 6

Using the flat end of the spudger, lift the black ZIF connector lock bar and disconnect the keyboard from the computer.
Remove the keyboard.

Schritt 7

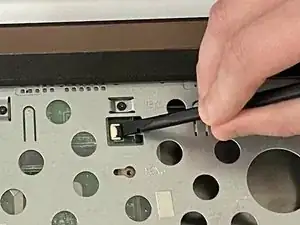

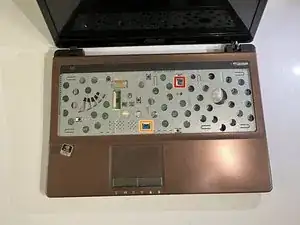

Using the spudger, place the flat end under the black lock bar holding the power switch. Push the spudger up and to the left, disconnecting the power switch.
Use the same technique on the touchpad to disconnect it.

Schritt 8

Using a Phillips #01 screwdriver, unscrew the seven 6 mm screws.

Schritt 9

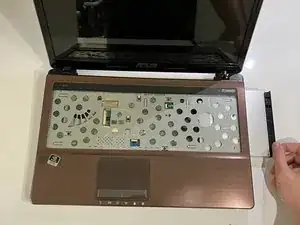

Gently pull out the optical drive.

Schritt 10

Flip the laptop back over so that the bottom is facing up.

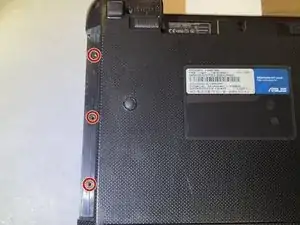

Use a Phillips #01 screwdriver to unscrew the three 6 mm screws.

Schritt 11

Turn the laptop back over so that you can open it.

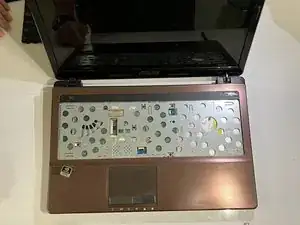

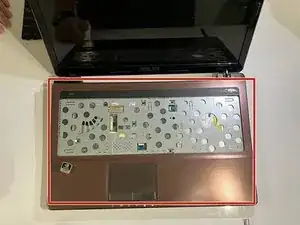

Gently separate the cover from the laptop by putting an opening tool between the cover and the lower part of the laptop.

Schritt 12

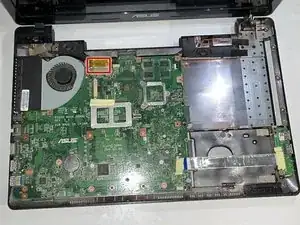

Remove the yellow tape.

Schritt 13

Using the flat end of a spudger, flip ZIF connector lock bar up, disconnecting the USB board from the mother board.

Schritt 14

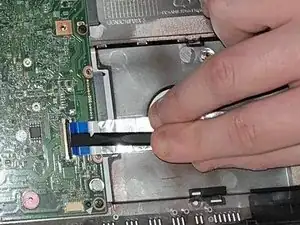

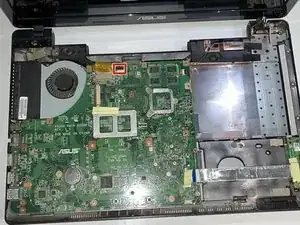

Using the pointy end of a spudger, push upwards on the notches of the tan part of the LCD connector.

Schritt 15

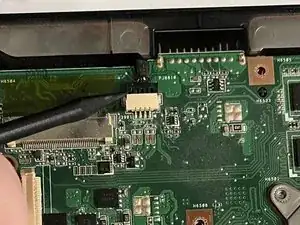

Using the pointy end of a spudger, gently push upwards on the black part of the speaker connector.

Schritt 16

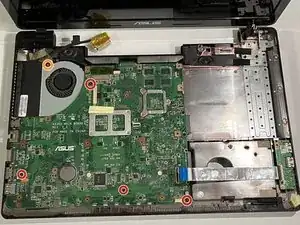

Using a Phillips #01 screwdriver, unscrew the five 6 mm screws at the indicated places.
Using a Phillips #01 screwdriver, unscrew the 5 mm screws.
All of these screws are indicated by a small white arrow.

Schritt 17

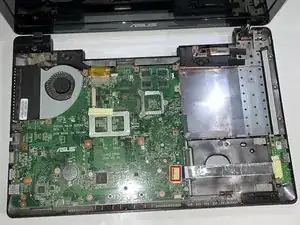

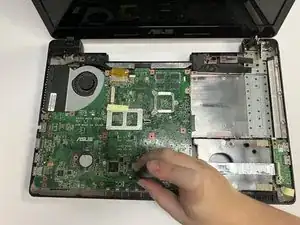

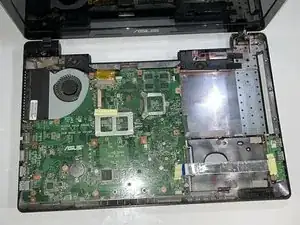

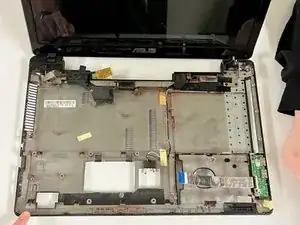

Gently lift the motherboard, removing it from the laptop shell.

Schritt 18

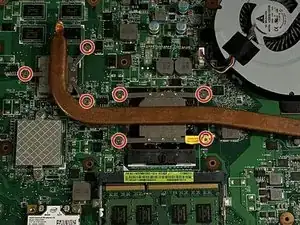

Flip the motherboard so that the fan and heat sink are facing up.

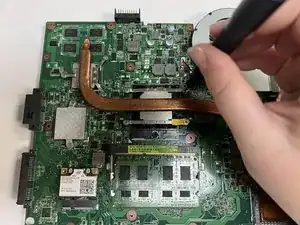

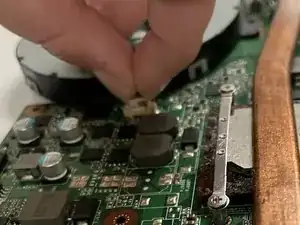

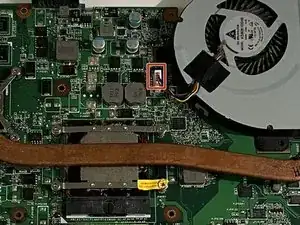

Pinch the upper part of the connector and pull upwards, slightly shimmying it side to side, to disconnect the fan.
