The following replacement guide details how to properly replace the Asus CM1745 CPU. Because this involves replacing internal parts of your computer, this could void any remaining warranty. The first part of this guide details how to remove the heatsink. The second part covers removing and replacing the CPU itself. Before beginning, please make sure that your PC is powered off and disconnected from the wall. Additionally, make sure you’re careful with the CPU, as it is incredibly fragile.
Werkzeuge
Ersatzteile
-
-

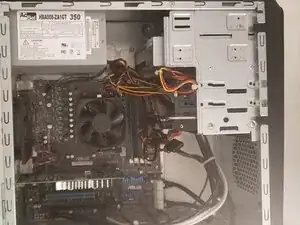

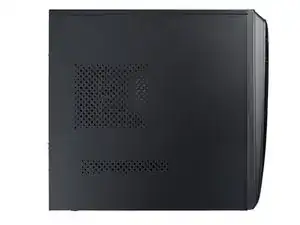

Remove the sidepanel by unscrewing the two screws fastening the panel on the rear. Once unscrewed, slide the panel towards the rear until it releases then lift away.
-
-
-

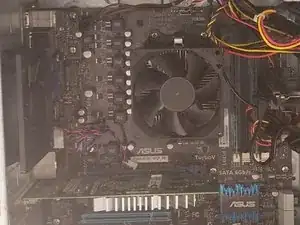

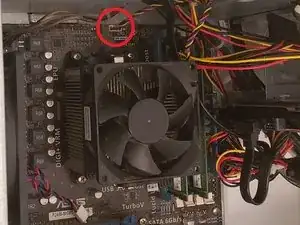

Unplug the CPU fan connector from the motherboard.
-

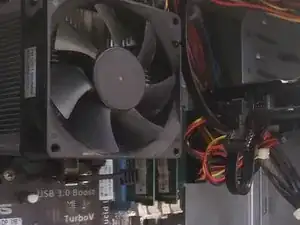

Then open the latch under the CPU fan and unhook the metal fasteners.
-

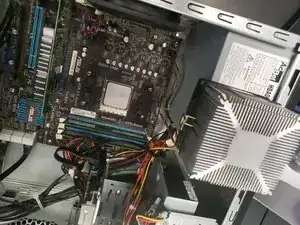

Lift the CPU heatsink and cable off of the CPU carefully.
-
-
-
Clean both the CPU top and the heatsink bottom by slightly moistening a paper towel with rubbing alcohol and rubbing lightly.
-
Grab your thermal paste and put a pea-sized amount in the middle of the CPU top.
-

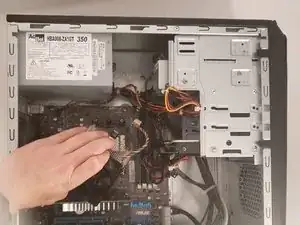

Gently replace the heatsink on top of the CPU and re-lock the heatsink fasteners.
-
Replug the CPU Fan connector to the motherboard header.
-
-
-

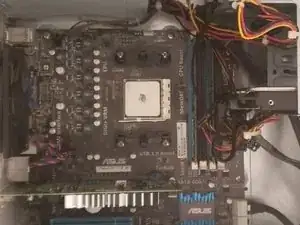

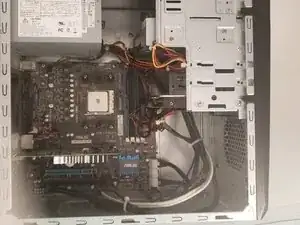

Remove CPU Heatsink to expose CPU.
-
Open the silver retention bar of the CPU by pulling the bar out of the plastic hook and hinging it open.
-

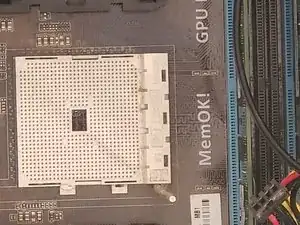

Remembering the orientation of the CPU, carefully pull the CPU out of the socket.
-
-
-

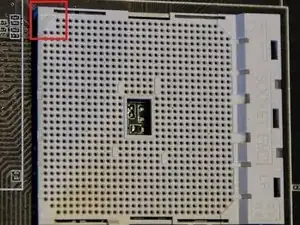

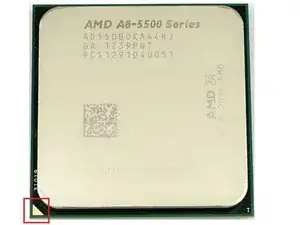

Take your replacement CPU and line up the arrows marked in the photos.
-
Place the CPU in the socket and gently massage the top of the cpu to ensure that there is no wiggle.
-
If the CPU feels secure, pull the retention bar back into place.
-
Place new thermal paste onto the CPU and replace the heatsink.
-
If everything looks correct, boot the computer up. It may take a few minutes to fully boot as the motherboard recognizes the new hardware.
