Asus Chromebook C101P Heat Sink Replacement

Geschrieben von: Dan Sysopha
  • Kommentare: 2
Asus Chromebook C101P Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

The Asus Chromebook C101P only has one item keeping it from overheating. The heat sink is an L-shaped piece of copper that is attached to the CPU on the motherboard to dissipate heat. It is attached using thermal paste so be sure to have some on hand. Ensure that the Chromebook is fully powered off and not plugged in before removing the heat sink. Also, be sure to wait a few minutes after powering off, as the heat sink may be hot.

  1. PZkvnt1KvSnLiSlm

    • Flip the Chromebook so that the bottom is facing up.

    • Remove the nine T5 Torx screws.

    Looks like there are nine screws in the picture.

    Prime Force -

  2. YspElSwYFZbNFOVE

    • Remove the four rubber grips on the bottom side of the Chromebook using an opening tool.

  3. A24e51DGSJkUQflT

    • Remove the four black screws where the rubber grips were.

    There are actually 5 screws, 2/2/1/0.

    Prime Force -

  4. mNUNrZ5jFsy3rcAm
    mNUNrZ5jFsy3rcAm
    R4HIIdNmMC4dyDwq

    • Reorient the Chromebook so the right side is facing upwards.

    • Wedge an opening tool or spudger between the keyboard (upper case) and the lower case of the bottom portion of the Chromebook.

  5. QnlQNyquf6yx1Rb2
    QnlQNyquf6yx1Rb2
    5ivADNl2hJIEVuIR
    WMCMyZxkf2lpmGhH

    • Pull back the black lever on the base of the cable. While pulling back, take your tweezers and pull back on the large ribbon cable.

    • Pull back the black lever on the base of the cable. While pulling back, take your tweezers and pull back on the small ribbon cable.

    • Separate the keyboard from the rest of the laptop.

  6. IXbARXGYJWdrJLk4
    IXbARXGYJWdrJLk4
    DQEiQJeT41oHAuAm

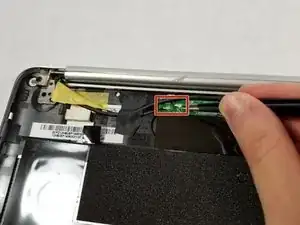

    • Detach the the screen cables from the motherboard using a pair of tweezers.

    • Peel off the tape or seal to easily remove the screen cables.

  7. ygWGISBvlNMHkJCR

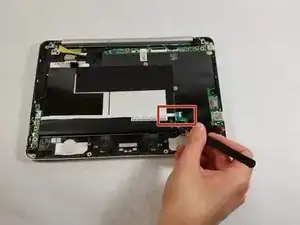

    • Flip up the black lever on the base of the small white ribbon cable. Remove the cable and set it aside.

  8. IPgSUCQjMsBGXMhN

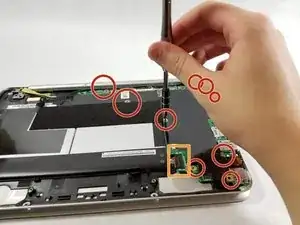

    • Remove the nine Phillips #0 screws.

    • The 3 circles on the hand indicate that there are 3 more screws not visible in the photo.

    • Remove the battery cable if possible. Otherwise, gently flip the motherboard upside down to reveal the heat sink.

    • The motherboard may be hot. Be sure that you have left the Chromebook turned off for a few minutes.

  9. fXkeWJfFQn6IZDwn
    fXkeWJfFQn6IZDwn
    b4BLRkFTJpLgIToj

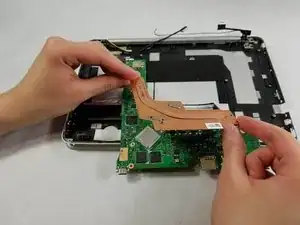

    • Remove the four Phillips #0 screws from the heat sink.

    • Detach the heat sink from the motherboard.

    • Detaching may provide a bit of resistance because of thermal paste.

    • When you are ready to apply the new heat sink, be sure to apply a small dab of thermal paste onto the CPU.

Abschluss

To reassemble your device, follow these instructions in reverse order.
