Einleitung

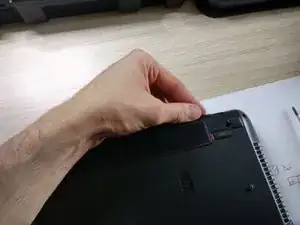

  1. uowbCUcFloFPq2BP
    uowbCUcFloFPq2BP
    PFHtFuslUPHdhihm
    XLuxOIWCmvCYZFCZ

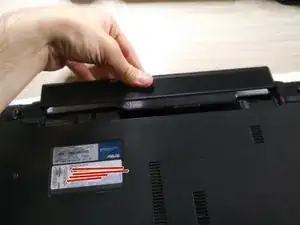

    • remove battery by sliding the two release buttons to the right position.

    • slide the battery away from the laptop

  2. 2aANHhtuRwBZyEKR
    2aANHhtuRwBZyEKR
    LQ6DWvqvSJDZXIXI

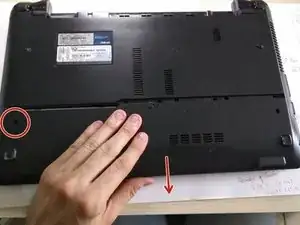

    • remove the 2 screws holding the plastic plate , underneath is the RAM/ WiFi and HDD

    • the 2 screws are marked in red. afterwarts slide it away from the laptop

    • keep track of all the screws and parts. make a map or a plan.

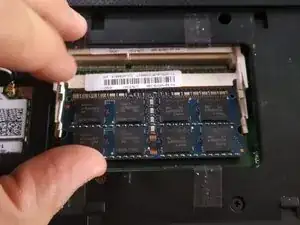

  3. N1IEc5vGCjBbMuQc
    N1IEc5vGCjBbMuQc
    ihKffWDnikdI23af
    U1t1HvJtcwxERpmB

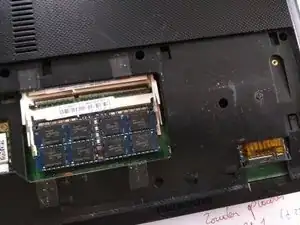

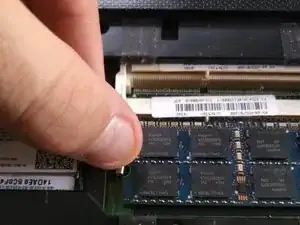

    • click the ram module out of there sockets.

    • push the metal clips away from the module.

  4. qEvG1IWBoLXyspXP
    qEvG1IWBoLXyspXP
    ZXMVHVWNuiwKBX5t

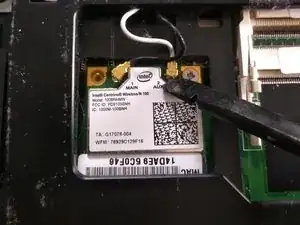

    • remove the black and white wire.

    • remove the screw.

  5. M2BvbLXCrSDgmCSn
    M2BvbLXCrSDgmCSn
    AG4OeomIJbvUWful
    bXZQoRuGNY4pV2Y3

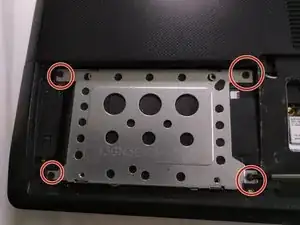

    • remove the 4 screws holding the metal frame , holding the hdd to it's place.

    • slide the frame and hard disk away from the case.

  6. JgHhXP3qsY6ROCZs
    JgHhXP3qsY6ROCZs
    JhHXZkM1UZgXE53T

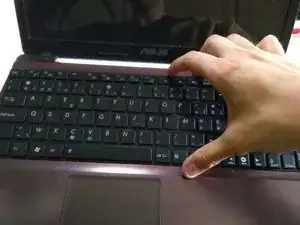

    • click the keyboard loose . There are 5 clips to remove

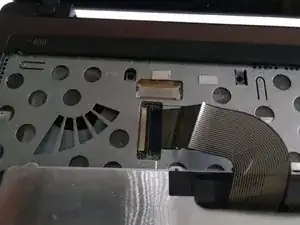

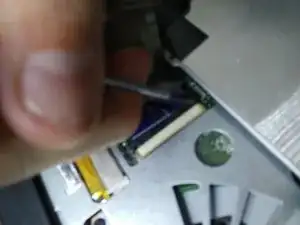

  7. YYRGSgD6mStivOd5
    YYRGSgD6mStivOd5
    QUbNwHW1ykahEOLD
    MO3LIiWfB55dUPA4

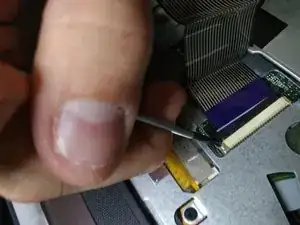

    • be carefull with the flat cable from the keyboard.

    • use a spudger to click the connector lid loose.

    • i used the tip of a screwdriver.. but i know what i am doing.. if you are use to work on laptops you can use a screwdriver, if not use a plastic spudger.

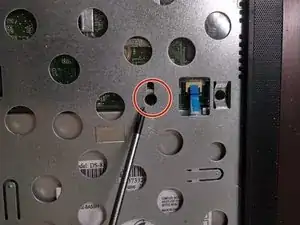

  8. FnoTfXiIc1clybTE
    FnoTfXiIc1clybTE
    VFNN1pCJXKvBAoJA
    JlhNXwC5ZYIVYqHB
    • remove the screw hidden under the keyboard.

    • slide the dvd bay out.

  9. D4EP5NssIWUgWd6V
    D4EP5NssIWUgWd6V
    3qjV3tNMZxOFThMv
    26BwJ1J2XnZKLkJ3

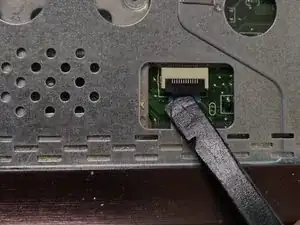

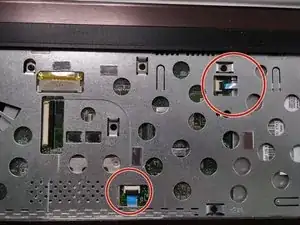

    • remove the flat thin cables from there sockets.

    • use a spudger , click the lid upwards and slide the flat cable out.

  10. GqhWxpZ6AWqu6otT
    GqhWxpZ6AWqu6otT
    l1t1YKlxLnafI6yN
    36gTrXiMxKBZLUIl

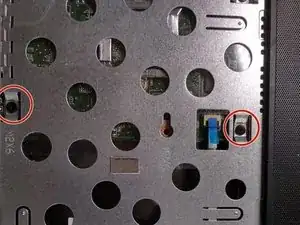

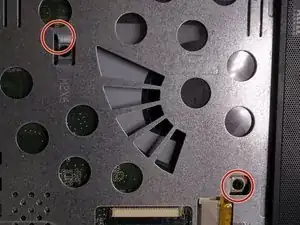

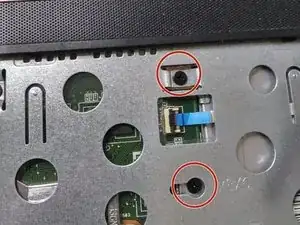

    • remove the 6 screws ( m2x6) holding the metal plate to the case.

  11. UFsT3LsfJGl4BuyZ
    UFsT3LsfJGl4BuyZ
    FBSBAqU2VcUew4vm
    MdfIM4xrkcPBDSaL

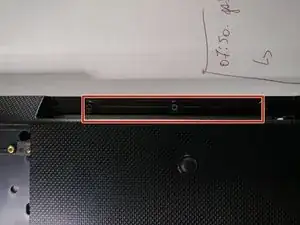

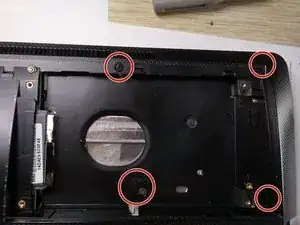

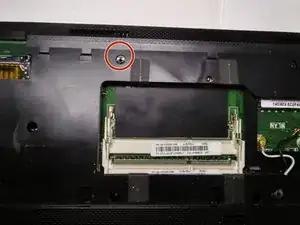

    • remove screws as shown in pictures.

  12. 5feDoLcHLx2vLvSl
    5feDoLcHLx2vLvSl
    BB3HTXWJQrtqhXmt
    AXDR43OLiXUI5HOn

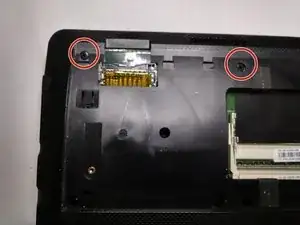

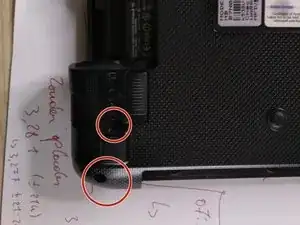

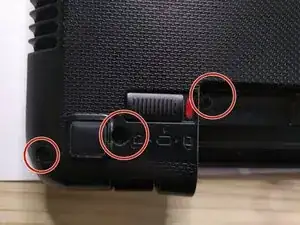

    • remove screws as shown in pictures

  13. bsoaqKpcOIwhdUP6
    bsoaqKpcOIwhdUP6
    UTM6LmI4JC4sMLDR
    FciSwPWMr5Hu1Qh2

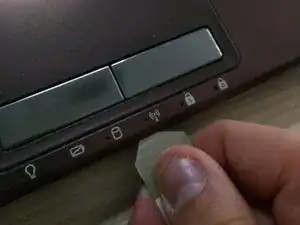

    • slide an isesamo opening tool between the two plates. you will here clicks

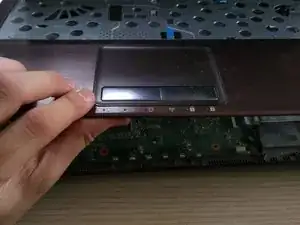

  14. niYVBRJ6HQ1VxmQk
    niYVBRJ6HQ1VxmQk
    RKiid6aicPDiAEJn
    XQm51u5gXPSLJLVS

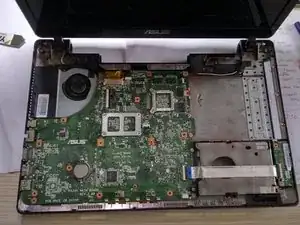

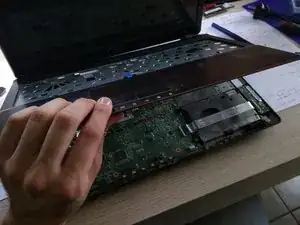

    • remove upper plate , revealing the main PCB.

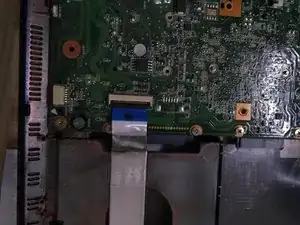

  15. GLQx5OKYRmvbIZ1b
    GLQx5OKYRmvbIZ1b
    U41vIKdQ2gU2RdFX
    CQPBy4h5Yjxv3M3H

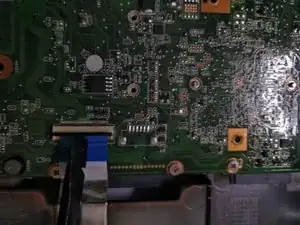

    • remove the flat cable of the USB module , use a spudger to lift up the lid of the connector.

    • gently slide out the flat cable

    • when removing the cable, be carefull they used a lot of adhessive to paste the cable to the plastic case.

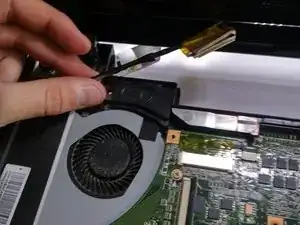

  16. ax5Q22OCYSyprHve
    ax5Q22OCYSyprHve
    SWIygrxqcaqG5KWl
    BIWE2eTFwjFMFMvD

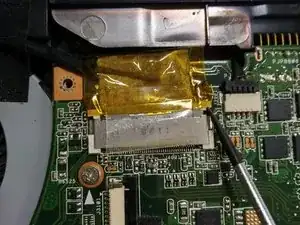

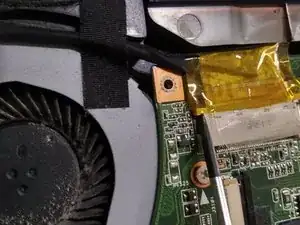

    • use the tip of a spudger or a tiny flathead screwdriver to push out the LCD cable from connector.

    • be very very very carefull , if you tear tis cable or damage it , you will have to buy a new one.

    • first lift the cable metal connector upwards ( push it out) , very gently, then the other side untill you can remove the cable.

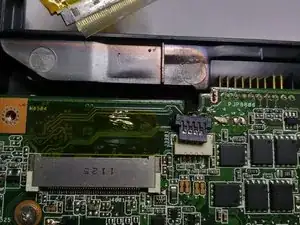

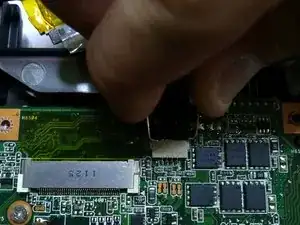

  17. 6l6i61YegJAL5vkH
    6l6i61YegJAL5vkH
    VYHTORcJnZBbOD1Y
    • use IC extractor pliers to remove the cable away from is socket.

  18. MU1RfCW43g2ICDqi
    MU1RfCW43g2ICDqi
    PvoWCBtiTQVhlITp
    uhjLAaKBLef5SLPt

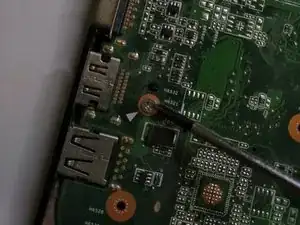

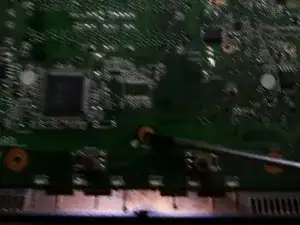

    • remove the 4 screws holding the main pcb ..

  19. CPLndg2n6cFxIPnp
    • remove screw holding the fan tot the laptop.

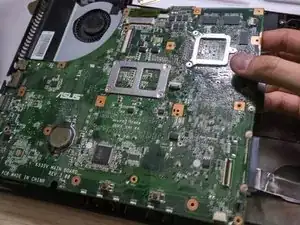

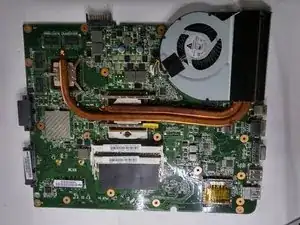

  20. RnYgEQUVRpKqT5OK
    RnYgEQUVRpKqT5OK
    ZOHJ4GMNRlUvuApk
    aDyJZNleDpbMTl4P
    • lift the main board or motherboard up on the right side and slide it out.

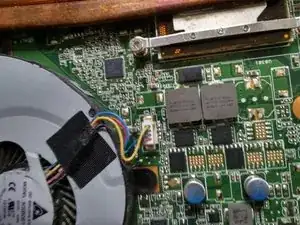

  21. EEOO6ENZgadXdRIj
    EEOO6ENZgadXdRIj
    2nZd2CvXsMBOWs1N

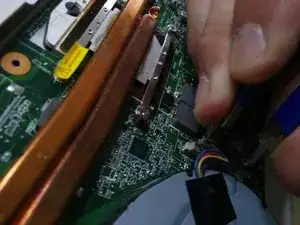

    • release the fan from the main board by removing the connector with an IC extractor pliers.

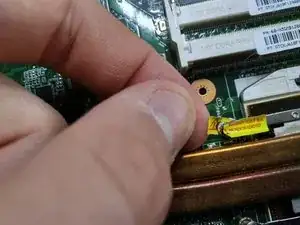

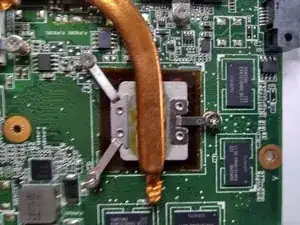

  22. x1oZSttKQ6oFTMri
    x1oZSttKQ6oFTMri
    fCY6TxNpOoHUGYrf
    MGavyQreWmPEYBIM
    • loosen up the screws from the cooling pads on the CPU and GPU.

    • You will have to tear the warranty sticker. it is a sticker in 3 parts.

  23. yyVkjI4IlxmDlXBI
    yyVkjI4IlxmDlXBI
    rhDUW11TVMTksWpa
    B6UdTVa4BwvZ4VfN

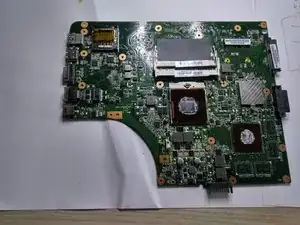

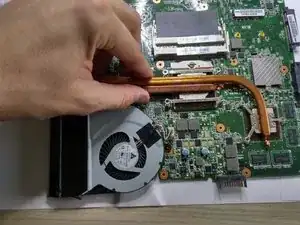

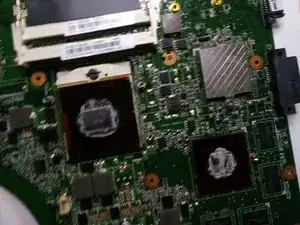

    • remove the fan and cooling pads.

    • you will see the old thermal paste.

  24. rDbAoSKW2hKucfRg
    rDbAoSKW2hKucfRg
    4JPtE3LXSPyZ5dKM

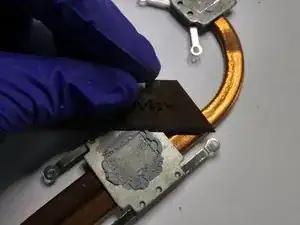

    • clean the cooling pads with an very sharp knife. or spudger..

    • wear gloves, cause the thermal paste is very toxic.

    • also this is a good time to blow out the fan with compressed air.

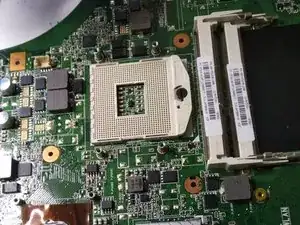

  25. cLKhHm6bDfQRL5wE
    cLKhHm6bDfQRL5wE
    MWZMFTXiMPCb3rXG
    sN4tTb1GecgA3MIc

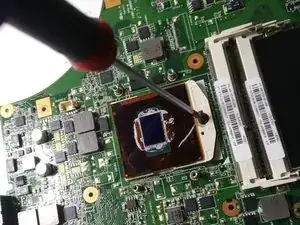

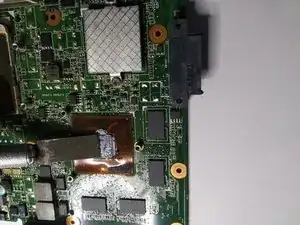

    • remove the old thermal paste from the processors , be very carefull. and use some artic silver liquid to clean them. and easely remove the thermal paste.

    • you can remove the CPU by using a flathead screwdriver , the socket will move and you can pull the CPU out , maybe a good time to upgrade the CPU.

  26. MfPMdqobgVUUvGZG
    • unfortunately i don't have a picture when i added some new thermal paste. But if you do: one drop on each processor is enough.

    • Check out the thermal paste guide for more information on how to apply thermal paste.

Abschluss

To reassemble your device, follow these instructions in reverse order.
