Asus MeMO Pad HD 8 ME180A SIM Card Reader Replacement

Geschrieben von: Rebecca Ellerhorst
  • Kommentare: 1
Asus MeMO Pad HD 8 ME180A SIM Card Reader Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

You will learn how to replace the SIM card reader. Review this guide if you are having difficulties with the SIM card reader. In order to replace the SIM card reader, you have to remove the battery. Please use our Asus MeMO Pad HD 8 ME180A Battery Replacement Guide to do so prior to starting.

  1. v1XeTHDrYZZySmYf
    v1XeTHDrYZZySmYf
    rWeEnysvfGeGALkd

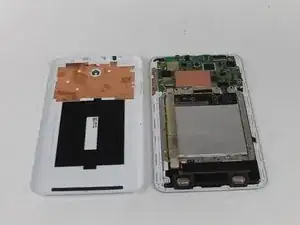

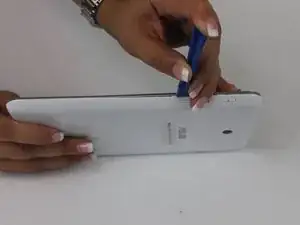

    • Use a plastic opening tool to separate the back half from the front half.

    • Pull the back panel away from the device.

    • The volume buttons can fall out of the case. Be careful not to lose them.

    I would not suggest this to a beginner, quite thankfully I have been just practising my fixing skills, yet I managed to break the lid of the display of the tablet and the tool even with the triangle plastics that hold it opened, it broke and shattered

    Lukáš Otáhal -

  2. sMIQdgOk4ct6GoHu

    • Ensure that you are wearing your Anti-Static Wrist Strap.

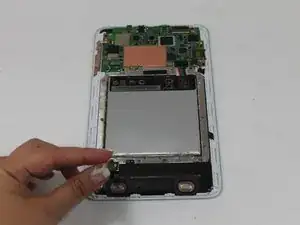

  3. R2TOUFlRDh5KMSIS
    R2TOUFlRDh5KMSIS
    iTdNn2NqdrkKYB6G
    cwcaQILWLbUsn4wW

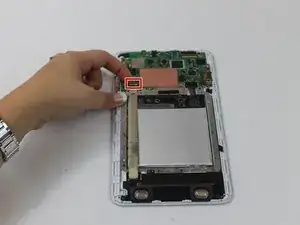

    • Lift the white bar on the ZIF connector and pull the metal connector out.

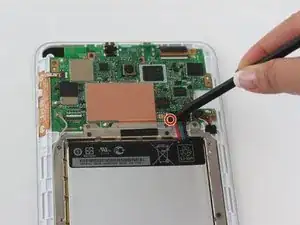

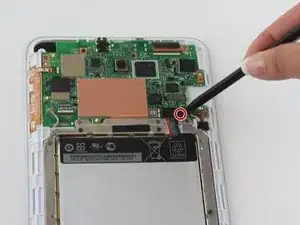

  4. QjIvC4fD4i3ppWvd
    QjIvC4fD4i3ppWvd
    CGKBPTPLfYBtOFNB

    • Using your spudger, press down on the two spots shown in order to release the cables.

    • Ensure that the touchscreen cables are fully disconnected.

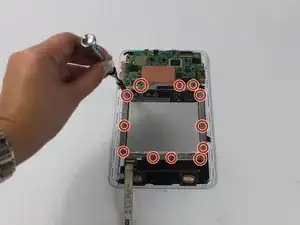

  5. rTeBH3m25fp5l2Aw
    rTeBH3m25fp5l2Aw
    hBrQfvf2qI4oTW1J

    • Using a PH#0 screwdriver, remove the twelve silver 3.2 mm screws.

    • Pull the battery out.

  6. tW1THIaICAAf1BqX

    • Disconnect GPS Antenna cable.

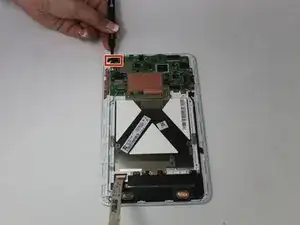

  7. 2NwxcLn6UJBAvQqC

    • Flip the latch and pull the ribbon cable to disconnect the ZIF connector.

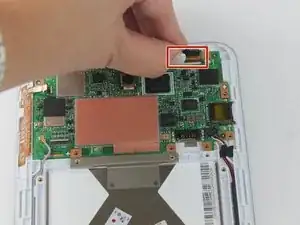

  8. C4xmBRAQZVN1YJnc

    • Flip the latch and pull the ribbon cable to disconnect the ZIF connector.

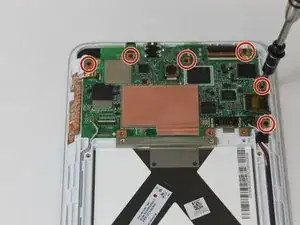

  9. LkvYSlExkc4ref2Q
    LkvYSlExkc4ref2Q
    1woYCZBnQ4hZWolr

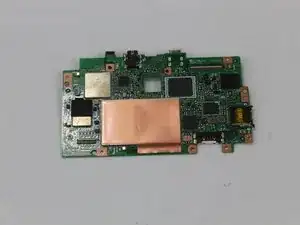

    • Use a PH#0 screwdriver to unscrew the six 3.0 mm black screws.

    • Lift the motherboard straight up to remove.

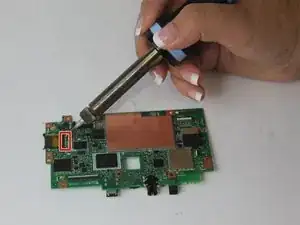

  10. IJRgAqZ6yqHUHGVy

    • Upon removal of the motherboard, desolder the pins that hold the SIM card reader in place.

    • Soldering irons tend to get very hot. Be careful not to burn yourself.

    • Check out iFixit's Soldering Technique Guide to brush up on your soldering skills.

    • Using a pair of tweezers, if desired, pull the sim card straight out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
