Step-by-step guide to replace the motherboard in a Asus VivoTab RT TF600T.

  1. XdCnnTjtJEwKchDt
    XdCnnTjtJEwKchDt
    nSLyDabSuZEUVnYR
    m4NNfDXOGRNaANRk

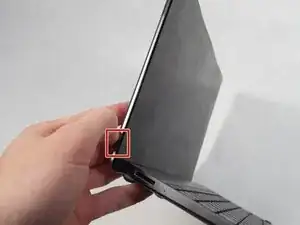

    • Make sure the tablet is turned off.

    • Remove the tablet from the attached keyboard.

    • To remove the keyboard, simply depress the switch on the left side of the screen and pull the tablet portion off.

  2. uoEtZHjLLLXXlpM4
    uoEtZHjLLLXXlpM4
    N1HHIhJpxqcUrQPn
    RZnRLfYFWXSENlrd

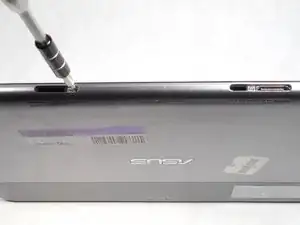

    • Rotate the device 180°, and use a PH000 screwdriver to remove the two 1.59 mm screws at the bottom.

  3. X2Pb1tRV3BUuOHAx
    X2Pb1tRV3BUuOHAx
    1kOZO2yhn1HfObOU

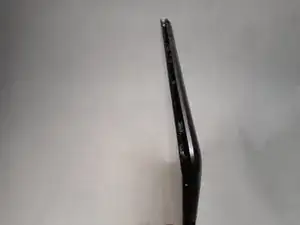

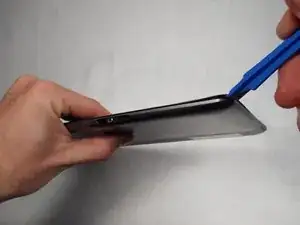

    • Insert a plastic opening tool into the bottom right corner, and gently start to pry off the screen.

    • Once the screen begins to separate from the body of the device, start working the tool around the outer edges until the entire screen becomes detached.

  4. VZTSRy1j2Gb4Z4GS
    VZTSRy1j2Gb4Z4GS
    6PUqoaNmYvPyrGct

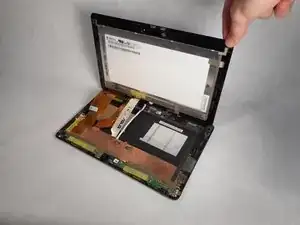

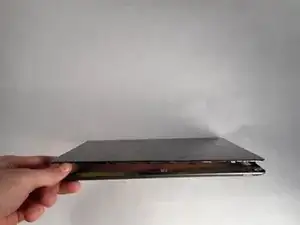

    • Now that the frame is separated, lift the screen assembly partially away from the motherboard.

    • The screen assembly is still connected to the motherboard. Use a small stack of books or other sturdy object to prop the screen up while you continue to work on freeing the cables.

  5. 4SATqgwN2tBVfcxI
    4SATqgwN2tBVfcxI
    r1dJjcY3rOGdj5e1

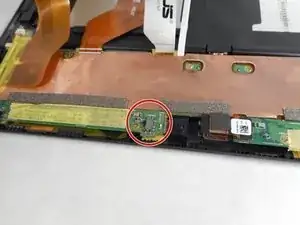

    • Before disconnecting the display cables, turn off the switch labeled DIP; this switch is used to de-energize the system.

    • The battery is connected to the motherboard. To avoid any short circuiting of the device, you must place the switch labeled DIP to OFF.

  6. fJEENNkUO65T3cAK
    fJEENNkUO65T3cAK
    1ksZXxAWOceKOtVO
    u1HNZc2YOTROkOLb

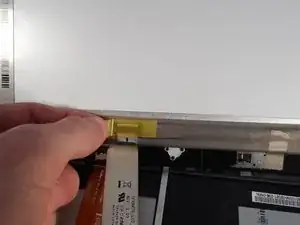

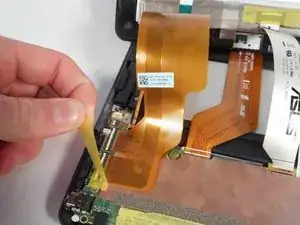

    • Remove the yellow tape that secures the digitizer and LCD screen ZIF connectors.

  7. UITm1UQsNRZ1CCVB

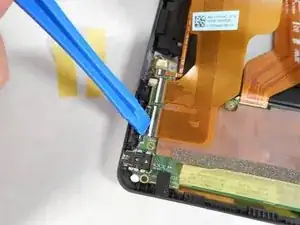

    • After removing the yellow tape, use a plastic opening tool to lift the two digitizer ZIF connector tabs; pull the ribbon cable free.

  8. MphxGRUhti2dh5lI

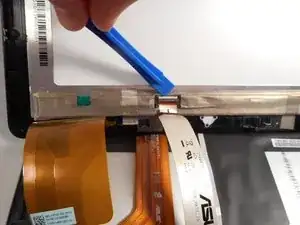

    • Use a plastic opening too to lift the LCD screen ZIF connector; pull the ribbon cable free.

  9. e3dvEbaJjFX2TbGw

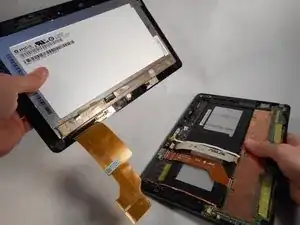

    • Lift the screen upwards to remove.

  10. JlN6KNJk6EhkQTpK

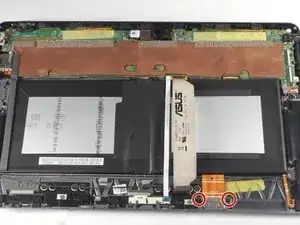

    • Remove the two 0.79mm screws from the charging port with the Phillips #00 screwdriver.

  11. lY2w6ZykMhaiMXEE
    lY2w6ZykMhaiMXEE
    AV6BnULKWRbCjB5F

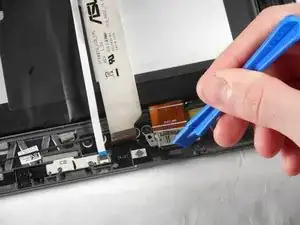

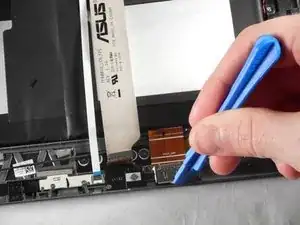

    • Place the plastic opening tool behind the charging port, closest to the outer edge of the device.

    • Gently pry the charging port away from the frame.

  12. 3rSOIpdDI5LJaDgu
    3rSOIpdDI5LJaDgu
    uMWDLfxQq3ZNYgsR

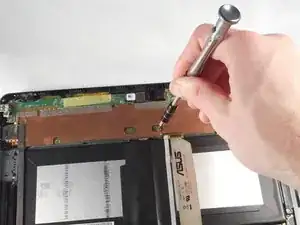

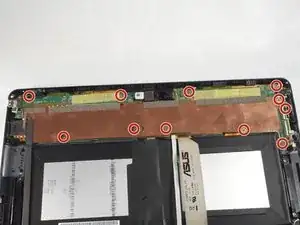

    • Remove the eleven 0.79 mm PH000 screws from the motherboard.

  13. GshMQTutSGXbJIF6
    GshMQTutSGXbJIF6
    xfpnNh13p46l2iRI

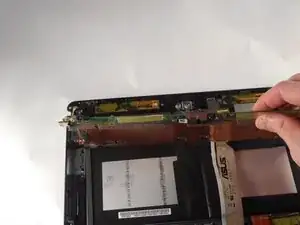

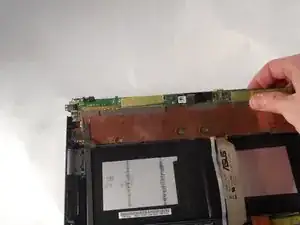

    • Use a nylon spudger to help carefully pry the motherboard from the back panel.

    • Once the motherboard is relieved from the glue, use your hand to lift the motherboard up and to the opposite end of the back panel.

  14. 4Eo2obFYPTG4SMMo
    4Eo2obFYPTG4SMMo
    xGhgtNbiw3LjZunX
    iTWeXNknkWZkB6AE

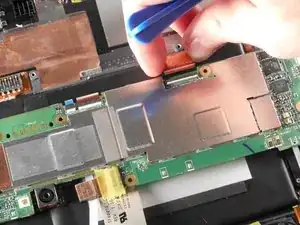

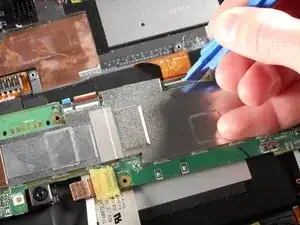

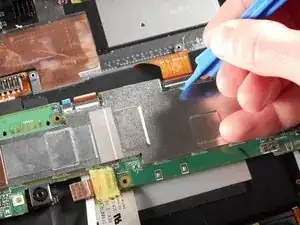

    • Use a plastic opening tool to lift and release the battery ZIF connector; gently pull the ribbon cable free.

    • Remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
