Asus Vivobook Q301LA-BHI5T02 Track Pad Replacement

Geschrieben von: Samuel Foster
  • Kommentare: 1
Asus Vivobook Q301LA-BHI5T02 Track Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

20 - 25 Minuten

Einleitung

If your track pad has become unresponsive, it may be time to replace it. This guide will show you how to replace your track pad.

  1. 1l4YeTZhEwxmZZWe

    • Make sure the computer is turned off.

    • Flip the device over so that the back cover is facing you.

  2. lJG4TWMhysBQOLKW
    lJG4TWMhysBQOLKW
    3c36cGUlNbhQuocn

    • Remove the four 5mm Phillips #1 screws from the top of the laptop.

    • Remove the two 6mm Phillips #1 screws from the sides of the laptop.

    • Remove the four 2mm Phillips #1 screws from the bottom of the laptop.

  3. wojWGOaBqHDAEjtu
    wojWGOaBqHDAEjtu
    Z6uUvsON3wXA6r6N
    VcZPpsBmlHwrXgvK

    • Use a plastic opening tool to gently pry the bottom of the laptop up. Slowly slide it along the edges, twisting it every so often to pop the bottom of the laptop out of the clips holding it in place.

    Its not phisically possible if i will try harder the laptop will break in half

    Disturbed Asylum -

  4. phSl31F1akP5eaeN

    • Lift off the cover and remove the back cover from the device.

  5. nhp6SpZMCSuSUO25
    nhp6SpZMCSuSUO25
    RHP1GvhJYwkFSJJy

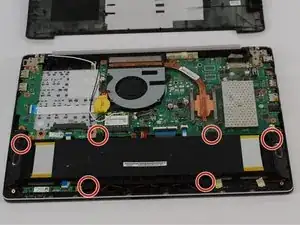

    • Using a Phillips #1 Screwdriver remove the six 3 mm screws keeping the battery in place.

  6. eLhECJRteUqvVHDW
    eLhECJRteUqvVHDW
    IUSwjusIKOUFWmA6

    • Unplug the battery connector from the mother board.

  7. OUSAd2dTCsWuxuwn
    OUSAd2dTCsWuxuwn
    FQObtkOfZf4Kl3DD

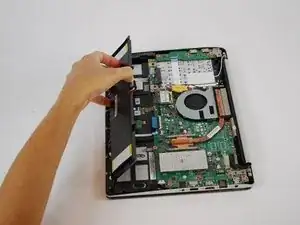

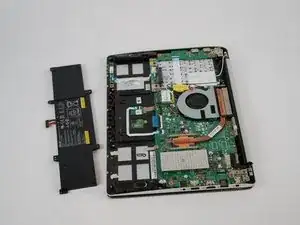

    • Gently remove the battery from the slot.

  8. HEBxOaC1LSo66tek
    HEBxOaC1LSo66tek
    PITHTVZW1v1NJNXd
    hLljQ411hoZuut4b

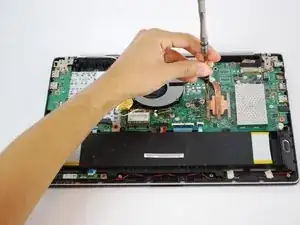

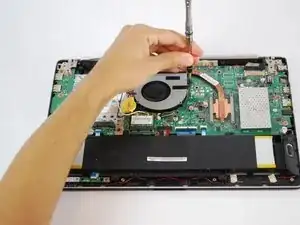

    • Using a Phillips #1 Screwdriver remove the three 3 mm black screws and four 2 mm copper screws holding the fan and heat sink in place.

  9. pYnMGt2OKFoV1BGA
    pYnMGt2OKFoV1BGA
    YvIaiWtKkFmPTOBG

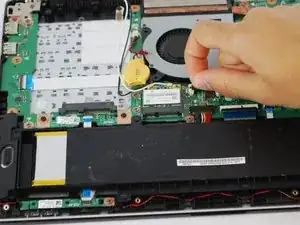

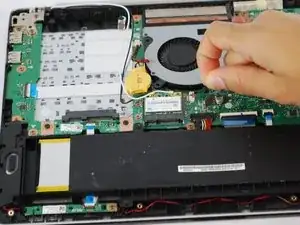

    • Remove the wire connecting the fan to the motherboard.

  10. WTtrIQbye3dgXXC1
    WTtrIQbye3dgXXC1
    kuktQAvG1CcxxcGD

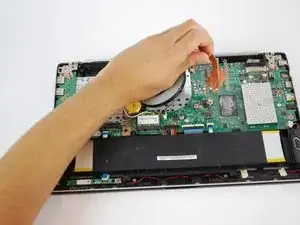

    • Gently remove the fan and heat sink from the motherboard.

    • On reassembly, be sure to clean the CPU and heat sink and reapply thermal compound to the CPU. Follow this guide to learn how.

  11. u5GcCMtGrbMJkHwk

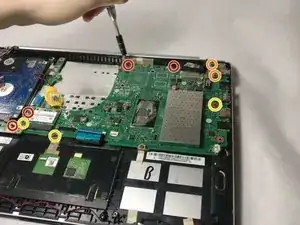

    • Remove the four 4.0 mm Phillips #1 screws shown.

    • Remove the two 5.0 mm Phillips #1 screws shown.

    • Remove the three 3.0 mm Phillips #1 screws shown.

  12. SO1SFypeAqTgWRMU
    SO1SFypeAqTgWRMU
    mhCBQERlBAgZBjwZ

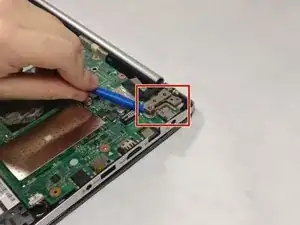

    • Using a plastic opening tool, pry open the hinge shown until your fingers can fit under it.

    • Pull the hinge the rest of the way up.

  13. 2gLkZcYncvUsBMAB

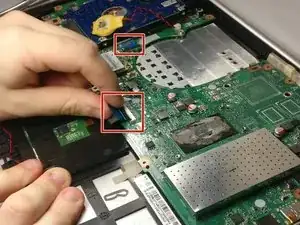

    • Disconnect the motherboard from the two connectors shown.

  14. bYX6sPQcydkiRfXV

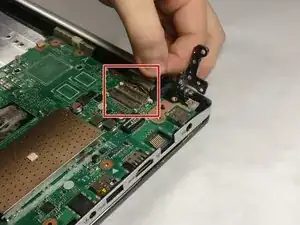

    • Disconnect the motherboard from the connector shown.

  15. i6bbI1VLEKjRPtZ6

    • Pull the motherboard loose.

  16. nWCpFwbJgXSe2bGW

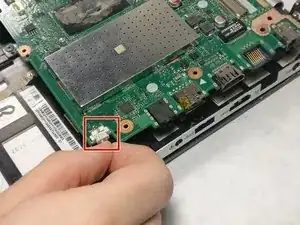

    • Disconnect the motherboard from the connector shown and it is now removed from your device.

  17. KPFDdCVoS3rwBaxI

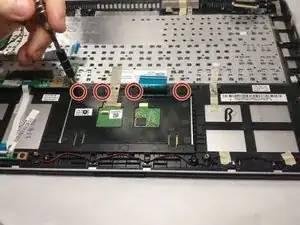

    • Remove the four 2.0 mm Phillips #1 screws holding the track pad in place.

  18. SZihMl5c3kNG63mh

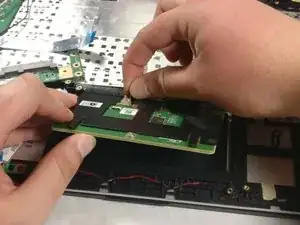

    • Remove the tape connecting the track pad to the frame of the device. The track pad is now completely disconnected from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
