This guide is designed to show how to safely remove the screen, on the Asus ZenFone Zoom 3, for replacement. You will need to take the back off the phone, as well as stripping off the housings one by one. You will need a soldering iron. Using tools, such as the soldering iron, can be dangerous so make sure you use proper precautions and follow this guide if you are unfamiliar with soldering. You will also want to be careful with how you move around the perimeter of the phone, removing the screen, so you don’t damage the screen or worse, break the casing.
-
-

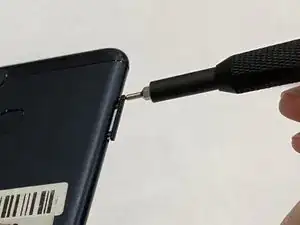

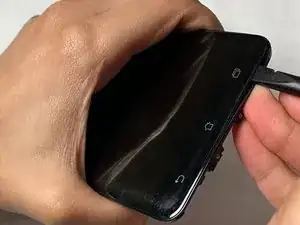

Use sim card attachment for the screwdriver found in the IFIXIT box to remove the sim card tray from the phone.
-
-
-

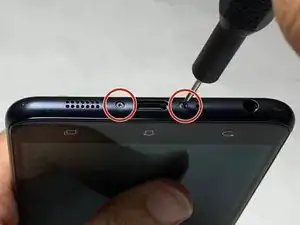

Remove the 3.5 mm screws on both sides of the charging port, at the bottom of the phone, using the T2 screwdriver.
-
-
-

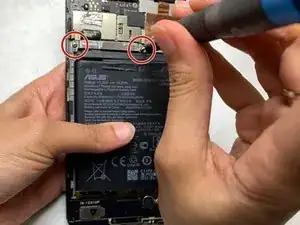

Utilize the PH #00 attachment to remove the two 3.3 mm screws in the bracket to the top left of the battery.
-
-
-

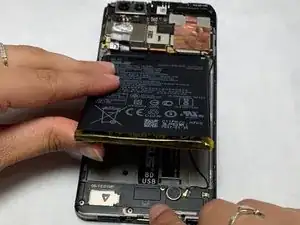

After removing the bracket and screws, pull up on the battery from the bottom of the unit and set aside.
-
-
-

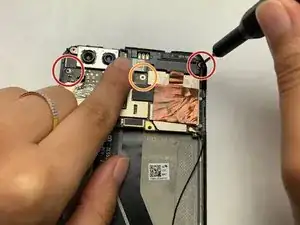

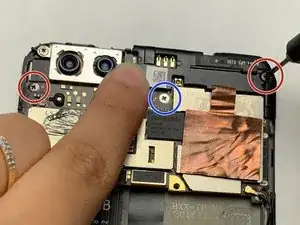

Remove all three screws near the top of the phone with the PH #00.
-
The top right and left screws are 3.25 mm.
-
The middle screw is 2.65 mm.
-
-
-

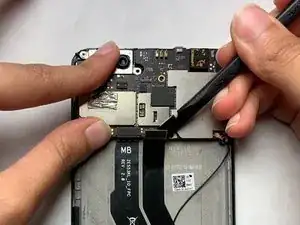

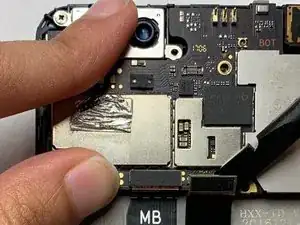

Use the flat-edge side of iFixIt plastic spudger to detach both of the ribbon cables off of the motherboard at their connection point.
-
-
-

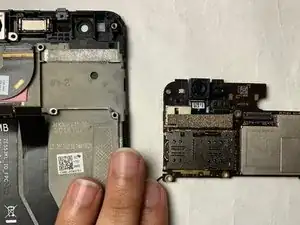

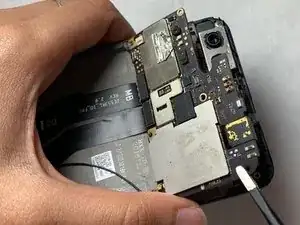

Use the tweezers to lift up on the edges of the motherboard located above where the battery was, then remove the motherboard.
-
-
-

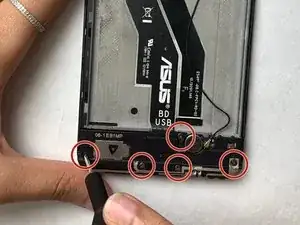

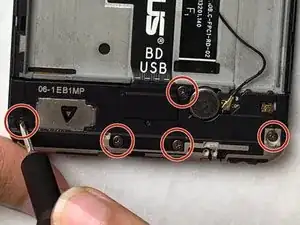

Remove the speaker cover at the bottom of the casing by taking out all five 3.25 mm screws with the PH #00.
-
-
-
Gently pry off the ribbon cable from speaker housing with the flat-edge side of the iFixit plastic spudger.
-
-
-

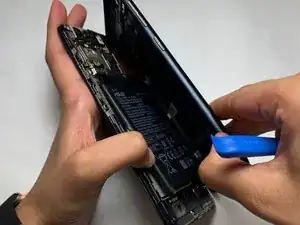

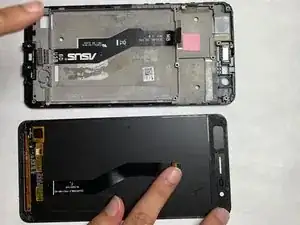

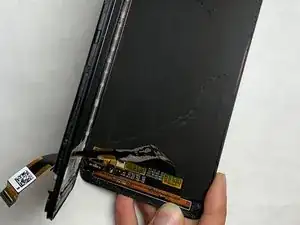

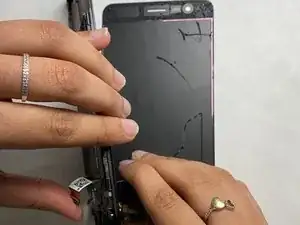

Pry off the screen beginning at the right-hand side toward the bottom of the phone with the plastic flat-edge spudger.
-
