Audio Technica ATH-AD500 Left Headphone Cable Replacement

Geschrieben von: Melanie Reis

Kommentare: 7

Audio Technica ATH-AD500 Left Headphone Cable Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

This repair guide will help you with the following:

Install the left headphone cable
Fix sound coming from the left headphone

Werkzeuge

Schritt 1

Remove the ear pads by peeling them away from the grill.

My jbl waerless headphone speaker changes how price

Max Mad - 09/09/19

How to install the earpads

rangaranju - 05/11/19

Schritt 2

Remove all four 1cm screws on the inside of the headphone using a #1 Phillips head.

Schritt 3

Remove the speaker from the grill by pulling it out.
Remove the speaker carefully so you do not rip the wires out.

Schritt 4

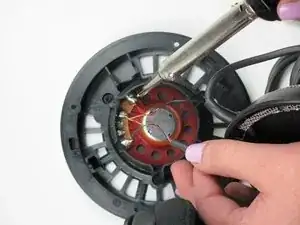

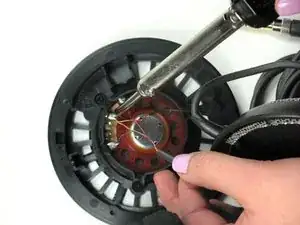

Desolder the red, yellow, and blue wires using a soldering iron and desoldering wick. If you need assistance, reference Wie man Lötverbindungen herstellt und entlötet.
The areas where you desolder will be hot so wait until the desoldered joints are cool before handling the wires again.

Schritt 5

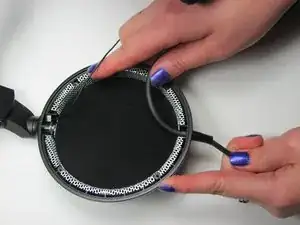

Untie the knot in the thick main cable.
Remove the main cable from the headphones by pulling it out.

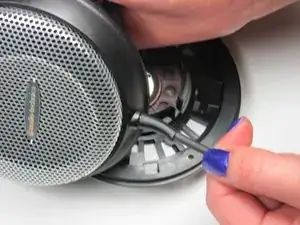

Thread the replacement cable into the hole on the bottom of the headphones. Pull the cable all the way through.

“Thread the replacement cable into the hole on the bottom of the headphones“ what replacement cables?

John S - 04/08/20

Hey, read my comment on the bottom of the guide if it’s still relevant to you.

Erez Dahan -

I have the same question, what replacement cable do I need?

Erez Dahan -

Schritt 6

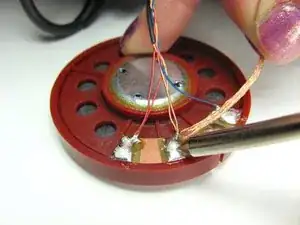

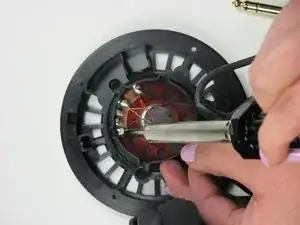

Re-solder the new red, yellow, and blue wires using a soldering iron. If you need assistance, reference Wie man Lötverbindungen herstellt und entlötet.
The areas where you solder will be hot so wait until the solder joints are cool before handling the wires again.

Abschluss

To reassemble your device, follow these instructions in reverse order.

2 Kommentare

Thank you so much! your guide helped me repair my AD900x!

Anwar X - 16/10/16

Not sure if it’s on purpose or not but on my A900Xs the cable is on the left headphone and so, the one on the right is the one with the tiny wire going through, I found that a 2 core wire is needed for this replacement, I only managed to find one that’s 1,4mm diameter and it seems to be a little thicker than what’s actually inside the headphones but I figured I’ll give it a try, anyways here’s the wire I found on AliExpress https://www.aliexpress.com/item/40004436...
