Audio Technica ATH-AD500 Right Headphone Cable Replacement

Geschrieben von: Melanie Reis
  • Kommentare: 5
Audio Technica ATH-AD500 Right Headphone Cable Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

This repair guide will help you with the following:

  • install the right headphone cable
  • fix sound in right ear

  1. rpS5JvUHYDupqrjD

    • Remove the ear pads by peeling them away from the grill.

    My jbl waerless headphone speaker changes how price

    Max Mad -

    How to install the earpads

    rangaranju -

  2. e1ykEWrDhPKcE66K

    • Remove all four 1cm screws on the inside of the headphone using a #1 Phillips head.

  3. RITkRvUmZxWKwhZh

    • Remove the speaker from the grill by pulling it out.

    • Remove the speaker carefully so you do not rip the wires out.

  4. BZTHtJxujcJG35HN
    BZTHtJxujcJG35HN
    nBYKfEMOPGeeYuYI

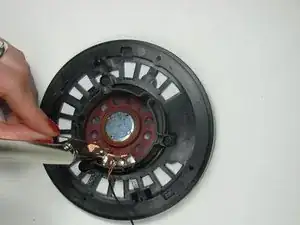

    • Remove the wires by de-soldering both the red and yellow wires using the soldering iron and desoldering wick. If you need assistance, reference Wie man Lötverbindungen herstellt und entlötet.

    • The areas where you soldered will be hot so let the soldered joints cool for before handling again.

  5. iuTWOUZiTsFUTBlq
    iuTWOUZiTsFUTBlq
    AMMoIyByXbDYb65y

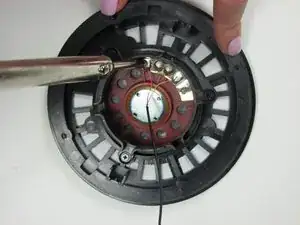

    • Connect the the new red and yellow wires by re-soldering the wires using the soldering iron. If you need assistance, reference Wie man Lötverbindungen herstellt und entlötet.

    • The areas where you soldered will be hot so let the soldered joints cool for before handling again.

Abschluss

To reassemble your device, follow these instructions in reverse order.
