Audiovox CR8030iE5 Backlight Replacement

Geschrieben von: Nab Sengupta
  • Kommentare: 0
Audiovox CR8030iE5 Backlight Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

20 - 25 Minuten

Einleitung

If the backlight isn't working in your Audiovox CR8030iE5, install a new one! This guide shows you how to change out the old backlight that may not be working right.

Note: This guide involves soldering and should not be done by children. If you do not know how to solder, check out Wie man Lötverbindungen herstellt und entlötet to learn how before beginning this guide.

  1. 4SOhSXjBLdkc15Xw

    • Turn the device upside down.

    • Apply constant pressure to the base of your Audiovox, while holding the plastic casing until the casing is completely removed.

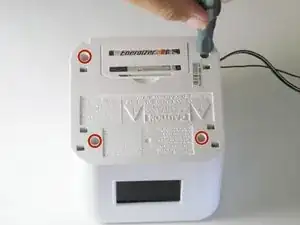

  2. mYIcuHSu3IXM1klQ

    • Remove the four screws from the base using a Phillips #1 screwdriver.

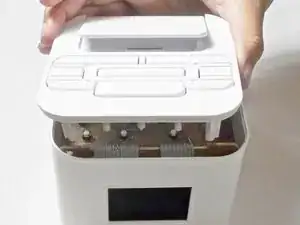

  3. kVoDpDgFq5KB3JI5

    • Turn the device right-side up.

    • Gently pull the top panel off of the device.

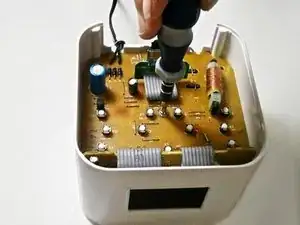

  4. vgaQJZfgbGEoZ2UC

    • Using a Phillips #1 screwdriver, remove the screw found in the middle of the board.

  5. P5t2khU2lJCa3tqB

    • Pull back the board gently to avoid disconnecting the attached wires.

    • This allows you to view the soldered connections on the other side, and the internal components.

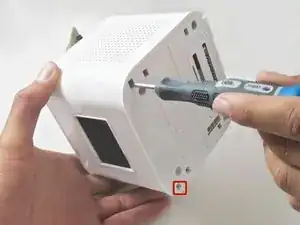

  6. kbSCBdZSdCKF6hor

    • Insert a Phillips #1 screwdriver into the corner, square, holes and push the backlight board up away from the plastic casing.

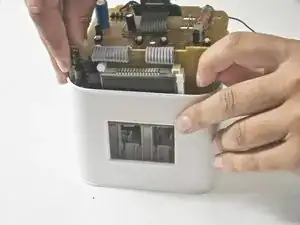

  7. gxyXr6NTCPL3BsLd

    • Carefully, pull up on the board to remove it entirely from the plastic casing.

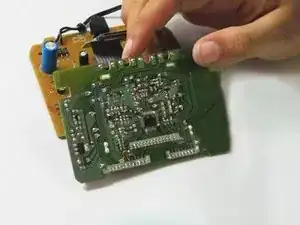

  8. PaBVkxVXvajoiJbO

    • Flip the backlight board over to view the underside.

  9. c6aa6HdSbjcVykHp

    • One by one, de-solder the four wires (two wires corresponding to each LED bulb) that attach the backlight to the board.

    • If you don't know how to solder, check out Wie man Lötverbindungen herstellt und entlötet.

    • Soldering irons are extremely hot and can burn you if you touch them!

    • If you hold the soldering iron tip at the same spot for too long, it can strip the metal from the plastic board. You may not be able to solder wire to that point again.

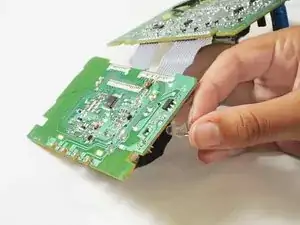

  10. ZOvPgCGVADGDa5Js

    • Remove the two LED light bulbs.

    • Insert each wire from the new LED bulbs into the respective holes.

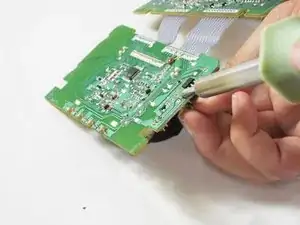

  11. q2PSY2tPGFnnl42g

    • One by one, solder the backlight wires back into place.

    • If you don't know how to solder, check out Wie man Lötverbindungen herstellt und entlötet.

    • Soldering irons are extremely hot and can burn you if you touch them!

    • If you hold the soldering iron tip at the same spot for too long, it can strip the metal from the plastic board. You may not be able to solder wire to that point again.

Abschluss

To reassemble your device, follow these instructions in reverse order.
