Einleitung

Replacing the speaker requires the use of a soldering kit. A guide to soldering is available on iFixit's website here.

  1. XD6FPijH1aVpuVZF

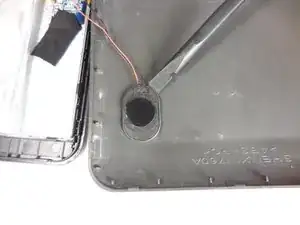

    • Wedge plastic spudger in between the back panel and the speaker of the device.

  2. iqYIVEiARBoAgIjJ
    iqYIVEiARBoAgIjJ
    ZKNedh56YyNoKbFw

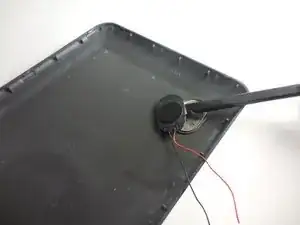

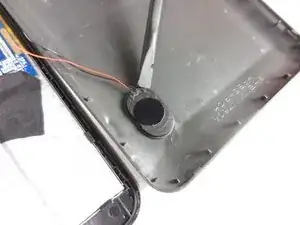

    • Gently pry out the speaker from the back panel using the plastic spudger.

  3. cIl6PXliTbZNPb46

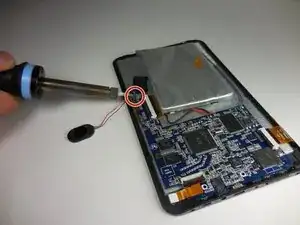

    • Heat solder and apply to the wires where they attach to the motherboard. This will disconnect the wires from the motherboard.

    • The wires should still be attached to the speaker.

  4. cDwhqIpHfKykgvbq

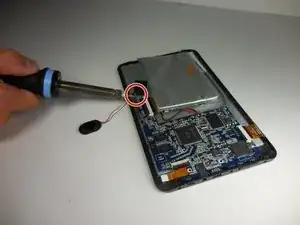

    • Take the speaker and wires that are attached out of the device and insert a new speaker by soldering the wires to the motherboard.

Abschluss

To reassemble your device, snap back piece back on to device and secure both 2cm screws at the bottom.
