Azpen A720 Battery Replacement

Geschrieben von: Ben
  • Kommentare: 2
Azpen A720 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

The battery is important for all tablet functions. If the battery is malfunctioning you will want to replace it. Replacing your battery is a relatively simple task and following this guide will help you fix your battery related problems.

  1. 1rRsh2BHTGuWOEVH
    1rRsh2BHTGuWOEVH
    4FByyAgMP6CO5Qy2

    • Use a Phillips #00 screwdriver to remove the two 4mm screws found on the top edge of the tablet near the power button.

  2. 5jSsR2bngPgRuGfG
    5jSsR2bngPgRuGfG
    2OjGvNrENgCL3RFI
    BRDLljsLvo4TVOg1

    • Use the plastic opening tool to pry the white back from the silver frame. Start near the micro SD slot.

    • Slide the plastic opening tool around the perimeter of the casing until the back is disconnected.

    Hey how you can open back of azpen tablet

    jrmoreland -

    Hey I got a question to ask how can open the back of the Samsung

    jrmoreland -

  3. OsnvXLRSFZdEnbNf

    • Remove the rear casing.

  4. QoDEiAOSQZwYxhIB

    • Locate the batteries' connection points.

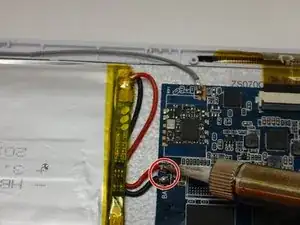

  5. eldsfEp4JpwECxjw

    • A soldering iron can reach 600˚ F, which will cause serious burns. Learn how to solder properly here. Using tweezers to hold the wires will reduce the risk of burns.

    • Use a soldering iron to melt the connections which attach the battery to the motherboard.

    • Disconnect the red and black wires from the motherboard.

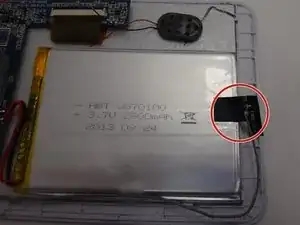

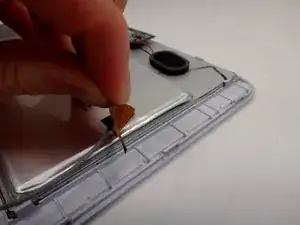

  6. uPRFNplocRYJniGr
    uPRFNplocRYJniGr
    TMUKYmJKBWHCbF2N

    • Peel the black sticker off the battery to disconnect the wifi antennae.

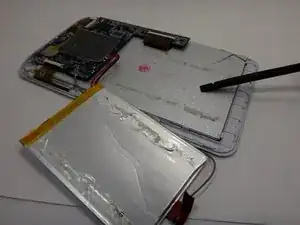

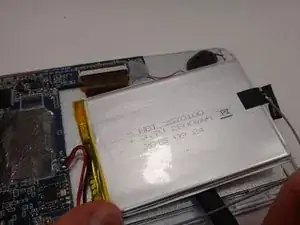

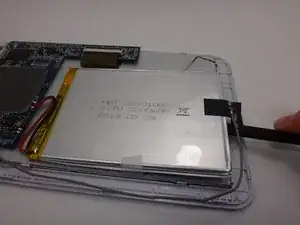

  7. U43hS3XrvfujhqjD
    U43hS3XrvfujhqjD
    Uj3gP2LY6PHPiyXr
    r4XXTOSBZuXUiapD

    • Slide the spudger between the battery and the metal backing. Move the spudger back and forth in a sawing motion to break the adhesive seal between the battery and the backing.

    • When the spudger is underneath the battery avoid prying. A prying motion could damage the battery.

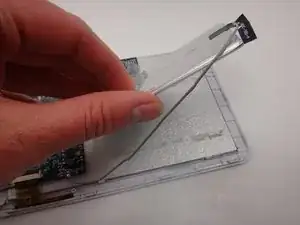

  8. jSAsAAbi2BFa3iNH
    jSAsAAbi2BFa3iNH
    nFjmmsBbK3aIPWud

    • Remove the old battery and replace it with the new battery.
