Azpen A720 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 - 45 Minuten

Einleitung

The speaker is responsible for all non-headphone sounds from your tablet. If these sounds are not audible when they should be you may need to replace the speaker. Speaker replacement is a relatively easy task and this guide will help you through it.

  1. 1rRsh2BHTGuWOEVH
    1rRsh2BHTGuWOEVH
    4FByyAgMP6CO5Qy2

    • Use a Phillips #00 screwdriver to remove the two 4mm screws found on the top edge of the tablet near the power button.

  2. 5jSsR2bngPgRuGfG
    5jSsR2bngPgRuGfG
    2OjGvNrENgCL3RFI
    BRDLljsLvo4TVOg1

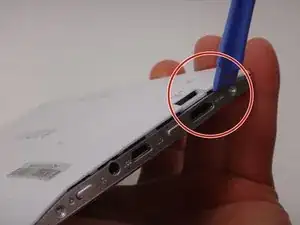

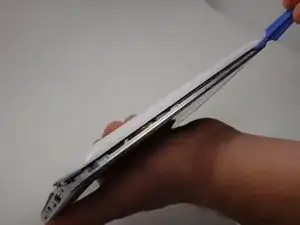

    • Use the plastic opening tool to pry the white back from the silver frame. Start near the micro SD slot.

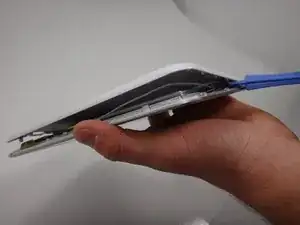

    • Slide the plastic opening tool around the perimeter of the casing until the back is disconnected.

    Hey how you can open back of azpen tablet

    jrmoreland -

    Hey I got a question to ask how can open the back of the Samsung

    jrmoreland -

  3. OsnvXLRSFZdEnbNf

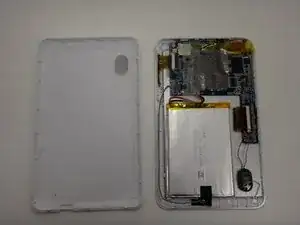

    • Remove the rear casing.

  4. 2wjX3OsaQuWRHKgx

    • The speaker is a black oval located in the corner next to the battery.

  5. G5DUgRru3JgDOMvg

    • Use a soldering iron to desolder the connections between the black and red speaker wires and the motherboard.

    • Remember which lead the black and red wires connect to on the motherboard.

    • Caution: The soldering iron gets very hot; be careful not to touch the tip and burn yourself. To learn to solder, click here.

  6. dbZurVGiGtWje1XR

    • Remove the speaker from the tablet.

Abschluss

To reassemble your device, follow these instructions in reverse order.
