The internal wifi antenna is important for connecting your tablet to wifi internet. Replacing the Azpen A720 wifi antenna is relatively simple. If you are having issues connecting to wifi use this guide to replace you internal wifi antenna.
-
-
Use a Phillips #00 screwdriver to remove the two 4mm screws found on the top edge of the tablet near the power button.
-
-
-
Use the plastic opening tool to pry the white back from the silver frame. Start near the micro SD slot.
-
-
-

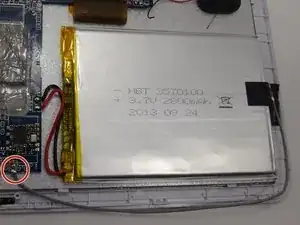

Locate the gray cord attached to the motherboard and the battery. This is the wifi antenna.
-
-
-
Locate the soldering connection between the wifi antenna and the motherboard.
-

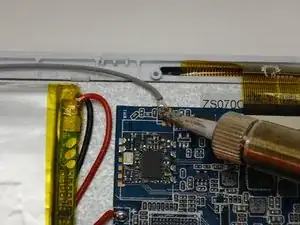

Using a soldering iron, melt the soldering connection between the cord and the motherboard and disconnect the cord.
-
-
-
Locate the black sticker connecting the wifi antenna to the battery.
-

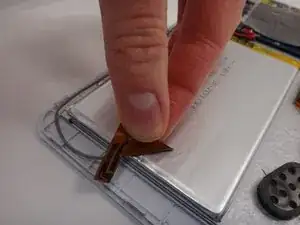

Peel the black sticker off of the battery to disconnect the wifi antenna.
-
Remove and replace the defective wire.
-
To reassemble your device, follow these instructions in reverse order.
