BCG600SIL Dose Control Pro Coffee Grinder - Jamming due to Worn Impeller

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 - 40 Minuten

Einleitung

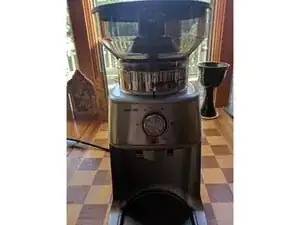

Many users of the Breville BCG600SIL (and BCG400) Dose Control Grinder experience jamming / clogging issues. After bogging down either it just stops and flashes the button light, or makes a clacking sort of sound and little coffee comes out.

This is usually either a worn out impeller or stripped drive gear.

The main symptom of a worn impeller is the motor will bog down even at a coarse grind settings (which should be easy on it) and after a few seconds, after too much coffee gets compacted beneath the burrs, the light flashes, or it begins making a stripping / clacking sound. When the hopper is empty and no beans are in the burrs, it all sounds great. You can hear the latter in this video (with a similar grinder). The unit starts out sounding normal, but under load, up until the clacking sound. Often, incorrectly, the coffee beans get the blame.

On the other hand, a stripped drive gear will sound bad nearly ALL THE TIME, even with no coffee beans. Each revolution of the damaged gear teeth will make a bad sound. If the teeth are really wrecked, you sometimes won't even get rotation anymore and you'll just hear the motor spin up like a jet engine. Thankfully this failure mode is much less common; typically occurring in an obvious manner, such as if you got a rock or pebble jammed in the burrs during grinding.

Now, why does the BCG600 Grinder's impeller matter? It sits underneath the steel burrs and receives the ground coffee. Its purpose is to push those grounds out the chute that leads to the basket (or espresso portafilter). When the plastic blade fins wear down over time, the grinder begins to clog up because it can't properly expel the grounds anymore. This often gets mistaken for a problem with the main drive gear when a stripping sound comes from a torque limiter mechanism. You can examine your impeller if you simply remove the burrs, and look at the gap between the cylinder wall and the impeller blade tips (See the good vs bad pics in step #1 below). If that gap is more than 1 mm, then it's probably worth replacing. If you can take the impeller out without dis-assembly, then it's definitely worth replacing (A good impeller is wider than the hole and can't just come out).

Breville unfortunately doesn't sell parts, so this tutorial has been made possible only recently by 3D printer technology. I've designed an improved impeller for the BCG800XL that also fits the BCG600SIL and made it available here: Shapeways Impeller Source

This guide will walk through impeller replacement to fix the most common cause of jamming with the BCG600SIL (and likely the BCG400) Dose Control Pro Grinder from Breville.

If you have a BCG800XL (not a BCG600) go here instead.

Werkzeuge

Ersatzteile

BCG600SIL Impeller

Schritt 1

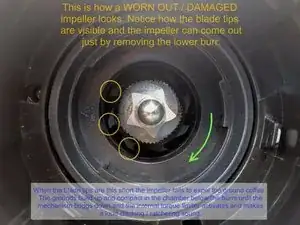

First let's verify you have the problem this tutorial is designed to fix. These images show what a bad / worn out BCG600SIL impeller looks like and then what a good impeller looks like. If your grinder has similar wear to the bad picture (and is jamming) then this tutorial will be able to help you.

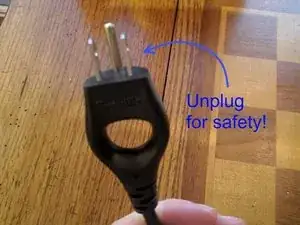

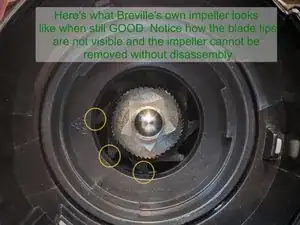

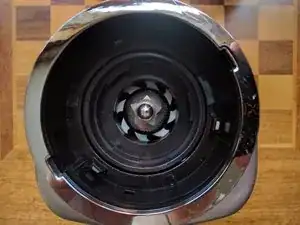

Unplug your grinder. Remove the hopper and take the upper burrs out. Empty out any coffee grounds (An air gun or vacuum helps) and then inspect the impeller blades.

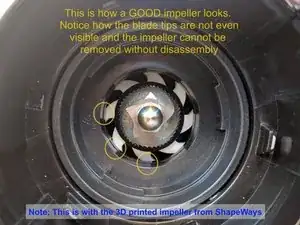

If the impeller can fit through the hole (ie: be removed just by taking out the lower burr) then it definitely needs replacement. A good impeller should not be removable without dis-assembly and the tips of the impeller blades should not even be visible. If yours is between bad and good, make a judgement call using the pictures as a reference.
FYI: If your impeller is made of stainless steel rather than plastic (like the picture), your model is NOT the BCG600SIL. In that case, you likely have a different model with significant design changes. Stainless steel should not wear out and so your problem is elsewhere.

Hi I got a Breville Grinder BCG600SIL too. I already checked my impeller following your steps but I’m pretty sure its doesn’t wear out. Are there any issues possibly happen to make the coffee beans stuck inside and the blade cannot grinde properly?

Thank you for your help :)

Chacha - 14/10/17

If the impeller is not worn out, and there are no gears stripped, it may just be the beans. See here: Störung an der BCG800XL Mühle wegen abgenutztem Flügelrad

Ben Gottemoller - 15/10/17

Great instructional video. If the product is as good as the video I will be a happy camper. Your video made the repair very clear with no questions unanswered. I look forward to getting the part, thanks.

rocinroc - 02/05/18

Thanks for the kind words!

Ben Gottemoller - 02/05/18

Is it possible to receive the 3D printer design file to print it locally?

Thanks, Cliff.

cliff sobchuk - 25/02/21

Hi… I have disassembled my BCG600SIL and it only had 1 washer under the burr, there was 2 on top and the nut but only one below…..should be ok to reassemble the same way?

Bruce W Mitchell - 27/02/21

Hi @steadymouse is it possible to access a copy of the print file? shipping from the US to Australia is incredibly slow and expensive because of COVID. Much appreciated

Oliver -

In my BCG400SIL dose control grinder the grind setting ring is jammed. It doesn't rotate in any direction. What's the problem? How can I fix it?

Mamunur Rahman -

Schritt 2

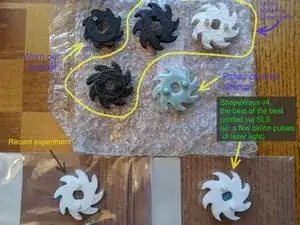

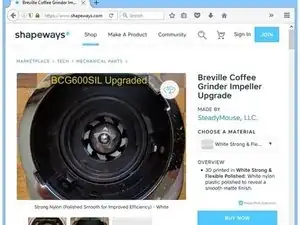

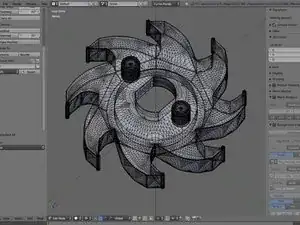

Once sure your impeller is worn out, you'll need a replacement part. I ended up modeling it and 3D printing it several times at the local library. I've made the final design available for printing at www.shapeways.com (See link below). Of course, you can also model your own design if you wish to spend the time.
Shapeways BCG600SIL Impeller Shop
Optional video of the ShapeWays part with a little background from when this was originally designed for the BCG800XL (The impeller is the same for both the BCG600 and BCG800 models): https://youtu.be/zB5F9ha1-zs
For a look at how well the new design holds up in a similar grinder (the BCG800) see my 2-year teardown here: https://photos.app.goo.gl/868a5ReyM2XAyj...

Hello there!

It is possible to get a copy of the design schematics so I could print it locally? I’m from Argentina and sadly the shipping costs of the manufactured product are way too expensive.

Thanks very much in advance.

Renzo Perasso - 07/05/21

Schritt 3

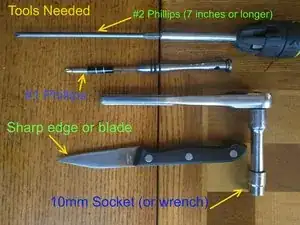

You'll need a 10mm socket with ratchet (or a 10mm wrench).
A #2 Phillips screwdriver with 7 inches of shaft or longer, and preferably with magnetic tip (FYI: You can rub a magnet against it to magnetize it if it's not already).
#1 Phillips screwdriver
A knife or something with a sharp edge.
Sandpaper and a file are likely optional but are occasionally necessary if the 3D printed impeller isn't a perfect fit.
FOR SAFETY THE GRINDER MUST BE UNPLUGGED DURING DISASSEMBLY AND REASSEMBLY! THERE ARE HIGH VOLTAGE CONTACTS INSIDE THAT ARE DANGEROUS AND EASY TO ACCIDENTALLY TOUCH WHEN THE UNIT IS PLUGGED IN! Please unplug your coffee grinder before continuing!

Schritt 4

Remove the hopper and the upper burr and set them aside.

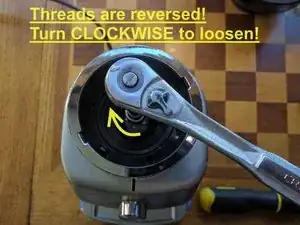

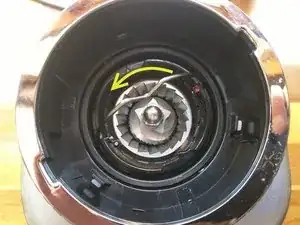

Use a 10mm socket to remove the nut for the lower burr. Note the threads are backwards! Rotate CLOCKWISE to loosen. You may have to jerk your wrist to break the nut free without the motor turning.
If the motor starts turning, try snapping your wrist quickly to break the nut free.

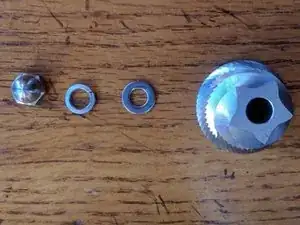

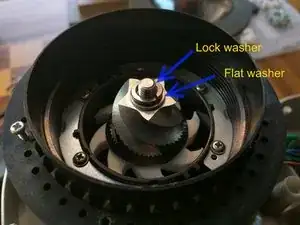

Set the acorn nut, lock washer, flat washer, and lower burr aside preserving the order.

I purchased the impeller but my Breville coffee grinder, BCG450XL, does not have a top nut nor a handle for removing the hopper basket. Except for the burr, everything looks plastic from the top so Im not sure how to proceed. The comment box will not allow me to paste/attach a photo here, Help would be very much appreciated. I watched the video for disassembling the 450, but mine doesn’t seem to have the hopper basket with the handle to remove it.

Merritt.joanie@gmail.com - 26/10/20

Schritt 5

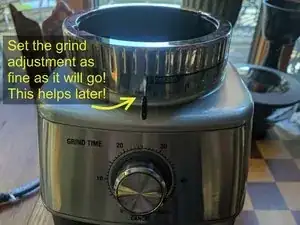

Turn the grind-adjustment all the way as fine as it goes. This just makes things easier later.

Schritt 6

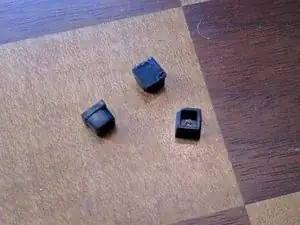

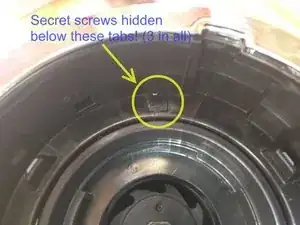

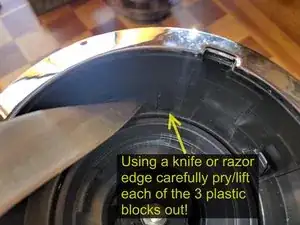

There are three plastic blocks that must be pried out and set aside using a knife edge. Be careful and take your time prying them up and out.
Underneath you will find 3 screws.

Schritt 7

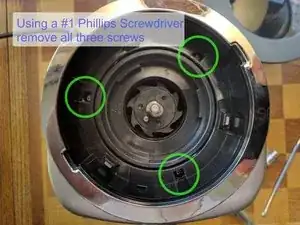

Using a #1 Phillips Screwdriver remove each of the three top screws and set them aside.

Schritt 8

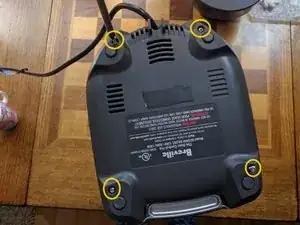

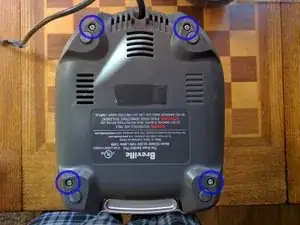

Flip the unit over
Using a #2 or #3 Phillips Screwdriver, remove all four of the bottom screws and set them aside.

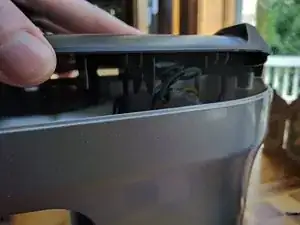

Carefully lift the bottom cover off, taking care not to place stress on the wires.

Schritt 9

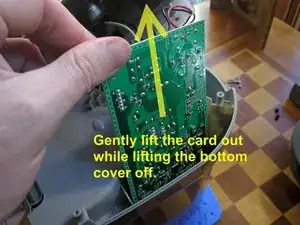

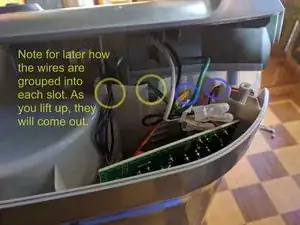

Carefully lift the cover while pulling up on the control card.

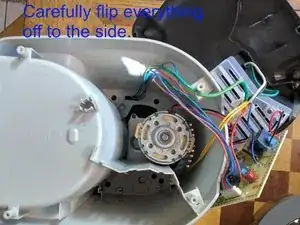

Flip everything gently to the side so we can get at the internals of the grinder.

Schritt 10

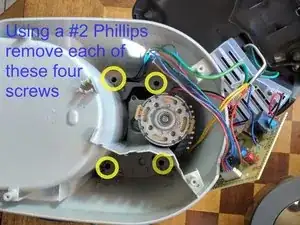

Using the long #2 Phillips Screwdriver (7 inches or more) remove the 4 inside top screws and set aside.
Next VERY CAREFULLY turn the grinder over to be right-side-up again. You want to avoid stress on the wires.
Perhaps place the unit on a towel so there is minimal stress on the wires while we work on the top. As we continue remain aware of the wires so they do not get stressed.

Schritt 11

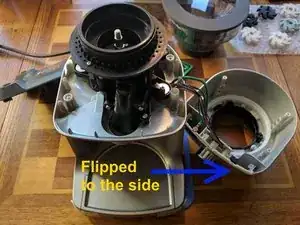

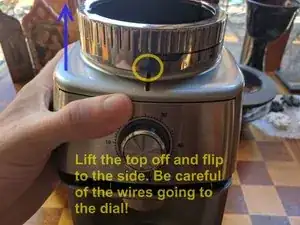

Carefully lift off the top and flip it to the side. It will hang from the few wires going to the control knob.

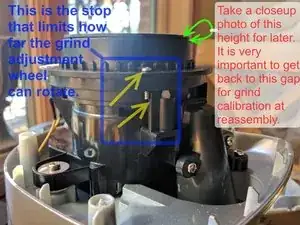

Take note that the chrome grind adjuster is set to fine and the stop-screw in the third pic is up against the plastic stop pointed to by the bottom yellow arrow.
Finally, take a photo of the gap between the lip of the "upper burr holder" and the internal "grind adjustment cylinder" illustrated in the third picture by the green arrows. At reassembly later it will be very important we get back to this gap. Having a photo will help you know you have succeeded.

Schritt 12

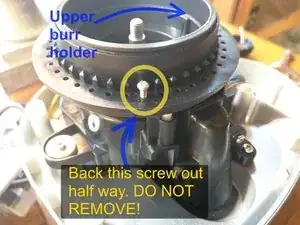

Back the adjustment limiter "stop-screw" out HALF WAY. Leaving it partly in insures we don't lose track of what hole it belongs in!
The stop-screw should be out just enough that you can rotate the grind adjuster freely past the stops.
Rotate the grind adjuster clockwise (second pic) until the upper burr holder cylinder backs all the way out.

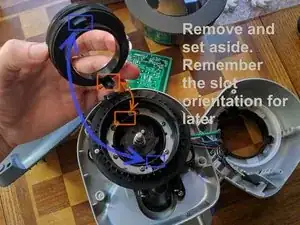

Remove the upper burr holder, noting the slot orientation for later.

I can’t rotate the grind adjuster clockwise at all. I was able to rotate it anticlockwise about 200deg with some effort but, as you’d expect, this only tightened the upper burr holder cylinder. Could there be an extra step I need to allow me to turn it clockwise? My model number is BCG400.

Matt - 09/03/21

It turns out the thread was clogged with coffee grounds which. I eventually managed to free it up but it wasn’t easy.

Matt - 02/04/21

I had the same problem as Matt - was worried I would break it. Really think this should be explained in the main steps. If you can’t easily rotate it, put the top back on and use the leverage from the outer chrome dial (go anti clockwise a bit maybe 45 degrees - fine to coarse, then back and forward to work the thread loose)

Chris Morgan -

Schritt 13

Lift out the old impeller

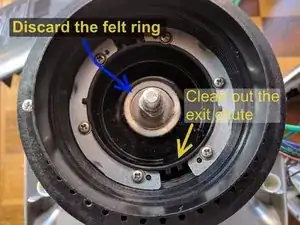

Remove and discard the felt ring. It is usually pretty ratty and the new impeller hugs the pedestal more closely and doesn't need it.
Clean the grounds expeller chute in case it's clogged.

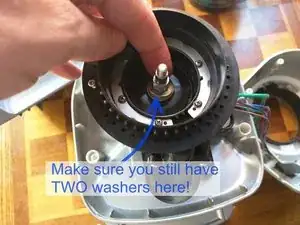

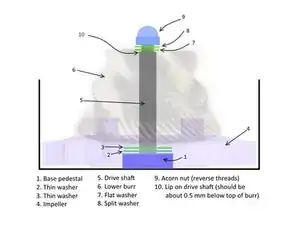

Make sure you still have BOTH washers on the drive shaft.

Schritt 14

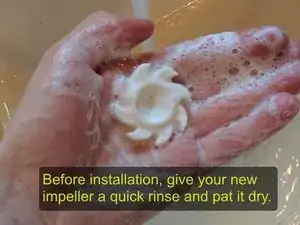

Before installation, I recommend giving your new replacement impeller a quick rinse in the sink followed by a pat down with a towel until dry. This helps to prevent static charge later during first grinding.
Press the impeller onto the shaft and check that it's a good fit. If it's too tight to go on, you can file it very slightly to make it fit.

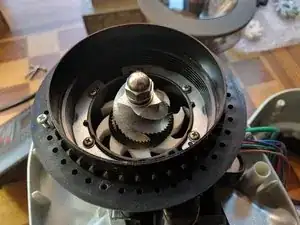

Install the lower burr on top of the impeller.
Use the 3rd pic as a reference for optimal height of the burr. If the burr is too high above the lip on the shaft (higher than in the pic), try putting the nut+washer on, tightening hard, and then taking it back off. The top of the burr should be within 0.5mm of the lip on the drive shaft as illustrated by the pic.

Schritt 15

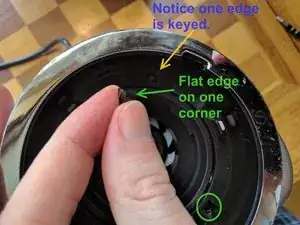

Put the conical lower burr in place making sure it sets on the pegs of the impeller properly. Then place the washers on and tighten the 10mm nut. Remember the threads are reversed.

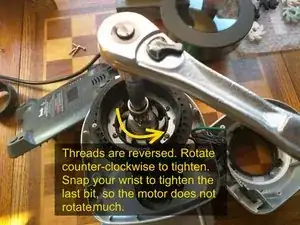

IMPORTANT: Tighten the nut pretty hard. The impeller, being plastic, has a small amount of springiness to it and must be squashed hard so that the height of the lower burr does not vary. If you find that the burrs are too close after you're all done, then this is the reason. Tighten until the motor begins to move, and then give it an extra wack.

Schritt 16

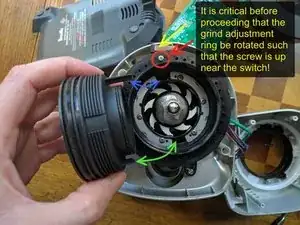

Rotate the grind adjuster until the stop-screw in the first pic is near the switch pointed to by the yellow arrow. This helps the upper-burr-holder threads pickup at the correct spot.
Set the upper-burr-holder in place with the slots matching the illustration in the first photo.

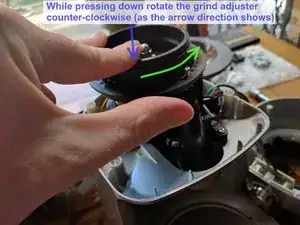

CRITICAL: Study the second photo. While pressing down with one hand, begin to rotate the grind adjuster in the direction shown by the arrow.

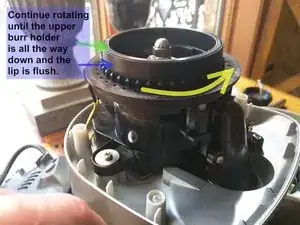

Continue rotating the adjuster until the upper-burr-holder is all the way down. The stop-screw should be about where it is in the 3rd pic at this point.

Schritt 17

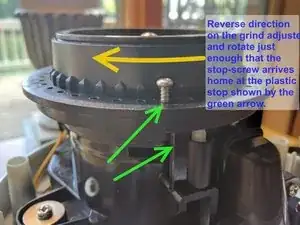

With the upper-burr-holder all the way down, reverse direction on the grind-adjuster and rotate through 50% to 75% of a rotation.
Stop when the stop-screw is right above the plastic stop shown in the first picture.

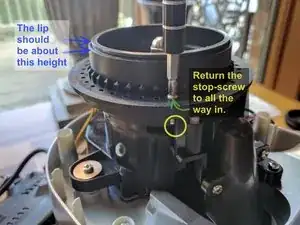

The lip should be about the height shown in the first and second pic. That's critical for your grind to match up with the labeling on the chrome-adjustment wheel after this is all done.
Compare the lip height with the photo you took in Step 11. Make sure the gap looks the same.
Screw the stop-screw back in.
Optional Modification: If you desire a finer grind capability than normal, mark the original stop-screw hole, and then move the stop-screw a few holes clockwise. Then rotate the upper-burr-holder counter-clockwise till the screw hits the stop again. Make extra sure the burrs do not touch if you do this!

Schritt 18

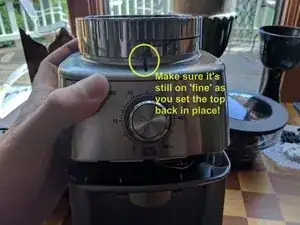

Set the top back on, while making sure the chrome adjuster ring is still on the 'fine' setting.

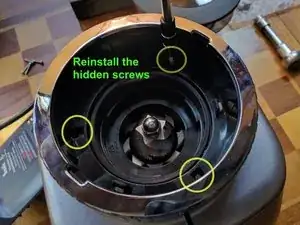

Put the 3 hidden screws back in.
Try rotating the chrome adjuster ring through the entire range before proceeding. It is very important that all is correct there before moving on.
Gently turn the unit upside down, taking care not to stress the wires near the base.

Schritt 19

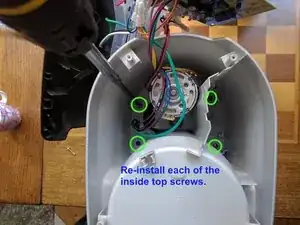

Reinstall each of the 4 inside screws with the long Phillips #2

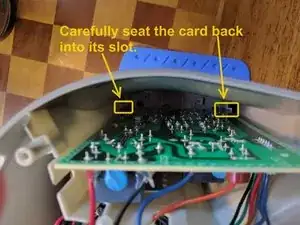

Gently slide the card back into it's slot

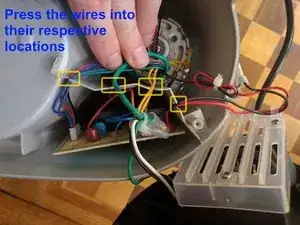

Guide the colored wire groups into their respective slots as shown by the third photo.

Schritt 20

Carefully press the bottom cover back on and then screw it into place with the 4 screws.
Flip the unit over and check that grind adjustment still works well be rotating through the entire range.
When satisfied, reinstall the 3 plastic blocks that hide the top screws. Take note that they have an orientation as shown in the 3rd pic!

Schritt 21

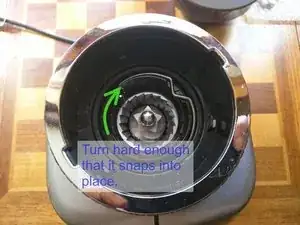

Look things over one last time and then reinstall the upper burr.
Install the hopper WITHOUT COFFEE.
Plug it in and run the (empty) grinder briefly to make sure it all sounds OK. Try both coarse and fine grind settings. If it sounds wrong, investigate or comment below.
If all is well, add some coffee to the hopper. Dial in the grind and try it out!
Tip: There is a bit of a break-in period the first week where the new impeller builds up a protective coffee coating. I recommended using a medium to light roast during this period.

Schritt 22

This is the FINAL step! The steps that will follow are troubleshooting tips. Enjoy your coffee!
Congrats on using 3D printing to repair something! Godspeed! Deus tecum.
If you thought this guide was thorough, you should see our primary work. SteadyMouse LLC helps folks with Parkinson's disease use their mouse again. Come check us out anytime at https://www.steadymouse.com and perhaps help us spread awareness. Cheers!

Schritt 23

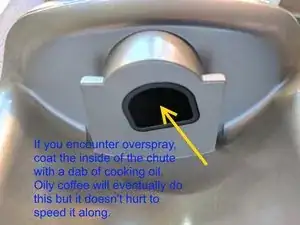

If you encounter ground coffee escaping the chute and getting on the counter, it may mean your coffee is too dry, humidity is too low (static charge), or even that the grinder chute is too clean.
To fix this, try placing a tiny dab of vegetable oil on your finger and rubbing it high up inside of the coffee chute. This will allow a fine layer of grounds to coat the walls of the chute.
The added friction of the grounds on the wall of the chute should slow the velocity of the grounds down enough that the overspray stops.
FYI: This whole step happens naturally with oily coffee beans, but takes a little longer than with the vegetable oil trick.
Also for static charge issues in general, this is a good tip: https://www.youtube.com/watch?v=T0Dh1W40...

Abschluss

The steps should have taken you all the way through re-assembly. Provided that impeller wear was your issue, everything will work again. If you have other issues see the troubleshooting steps or post below for further help.
